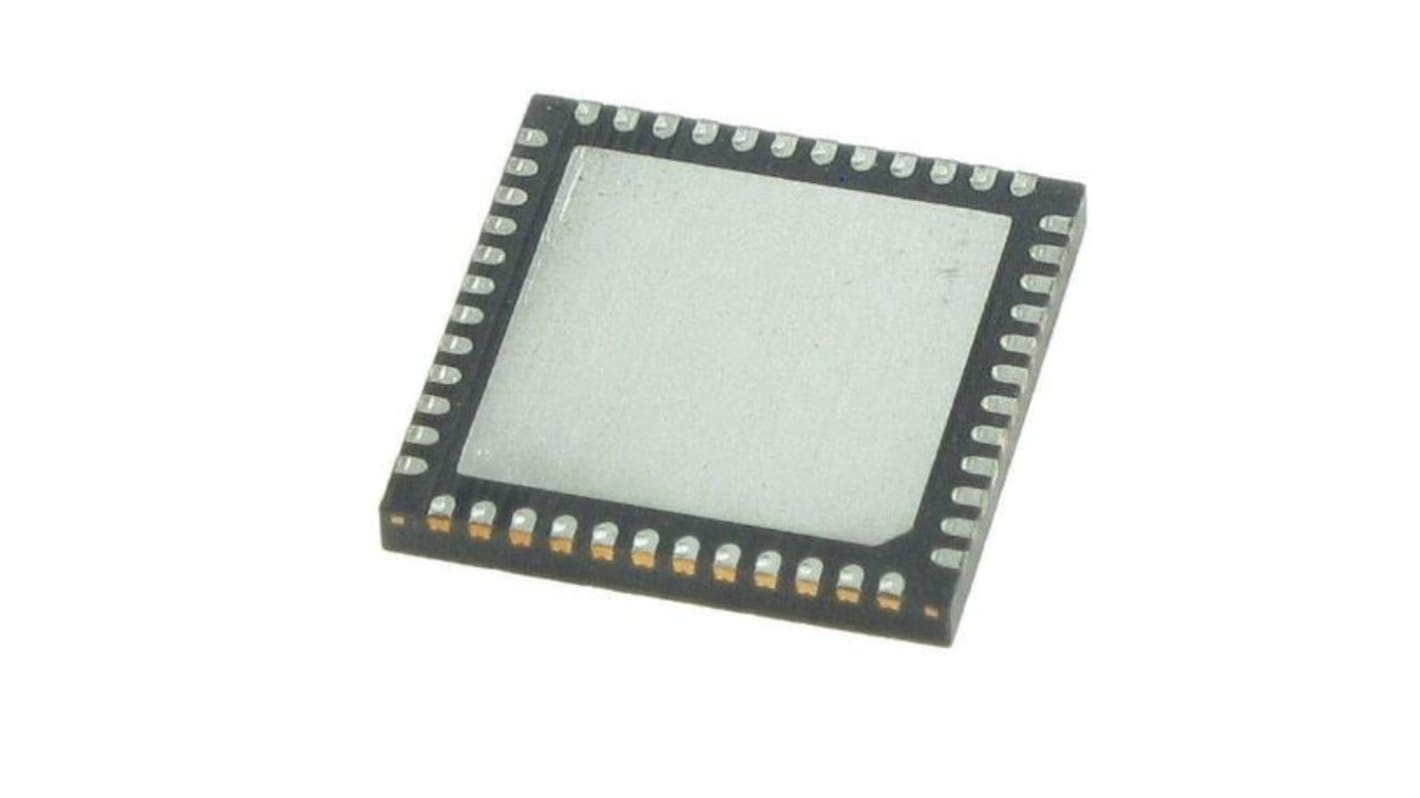

9FGV0841AKILF, Function Generator IC, 48-Pin VFQFPN
- RS Stock No.:
- 216-6274
- Mfr. Part No.:
- 9FGV0841AKILF
- Brand:
- Renesas Electronics
1470 In stock - FREE next working day delivery available
Added
Price Each (In a Tray of 490)
£2.372
(exc. VAT)
£2.846
(inc. VAT)
| Units | Per unit | Per Tray* |
| 490 + | £2.372 | £1,162.28 |
| *price indicative | ||
- RS Stock No.:
- 216-6274
- Mfr. Part No.:
- 9FGV0841AKILF
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics 9FGV0841 is a member of IDT's SOC-friendly 1.8V very low-power PCIe clock family. It has integrated output terminations providing Zo = 100Ω for direction connection to 100Ω transmission lines. The device has 8 output enables for clock management, 2 different spread spectrum levels in addition to spread off, and 2 selectable SMBus addresses.
Direct connection to 100Ω transmission lines
saves 32
resistors compared to standard PCIe devices
62mW typical power consumption
resistors compared to standard PCIe devices
62mW typical power consumption
reduced thermal concerns
Outputs can optionally be supplied from any voltage between
1.05V and 1.8V
Outputs can optionally be supplied from any voltage between
1.05V and 1.8V
maximum power savings
OE# pins
OE# pins
support DIF power management
LP-HCSL differential clock outputs
LP-HCSL differential clock outputs
reduced power and board
space
Programmable slew rate for each output
space
Programmable slew rate for each output
allows tuning for
various line lengths
Programmable output amplitude
various line lengths
Programmable output amplitude
allows tuning for various
application environments
application environments
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | VFQFPN |
| Pin Count | 48 |
