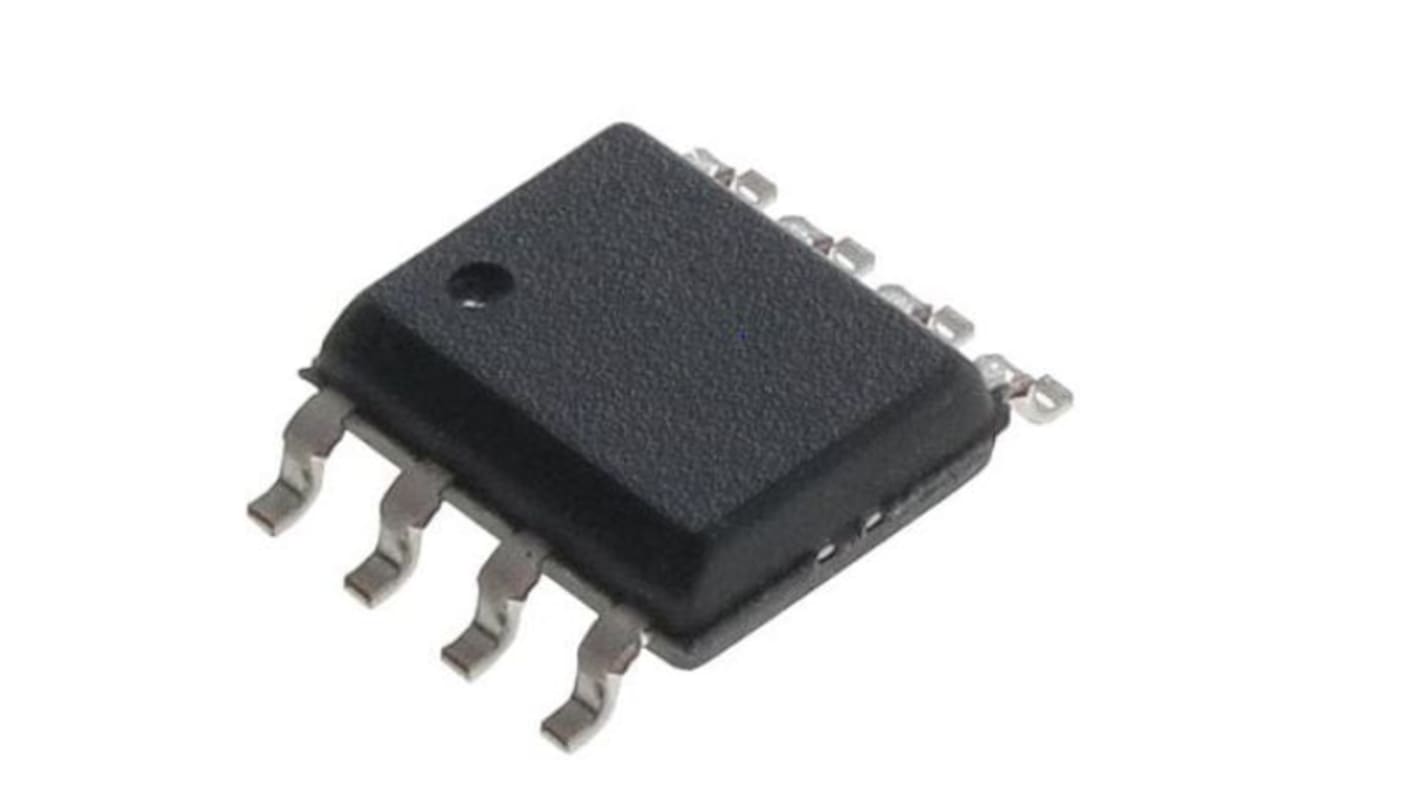

Renesas Electronics 74FCT38074DCGI Clock Buffer, 8-Pin 4 SOIC
- RS Stock No.:
- 216-6195
- Mfr. Part No.:
- 74FCT38074DCGI
- Brand:
- Renesas Electronics
Subtotal (1 tube of 97 units)*
£264.325
(exc. VAT)
£317.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 194 unit(s) shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 97 + | £2.725 | £264.33 |
*price indicative
- RS Stock No.:
- 216-6195
- Mfr. Part No.:
- 74FCT38074DCGI
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Clock Buffer | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | 74FCT38074 | |
| Standards/Approvals | No | |
| Height | 1.5mm | |
| Length | 4.9mm | |
| Width | 3.9 mm | |
| Number of Outputs | 4 | |
| Maximum Output Frequency | 166MHz | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Clock Buffer | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series 74FCT38074 | ||
Standards/Approvals No | ||
Height 1.5mm | ||
Length 4.9mm | ||
Width 3.9 mm | ||
Number of Outputs 4 | ||
Maximum Output Frequency 166MHz | ||
Automotive Standard No | ||
The Renesas Electronics FCT38074 is a 3.3V clock driver built using advanced CMOS technology. This low skew clock driver offers 1:4 fanout. The large fanout from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.
Advanced CMOS Technology
Guaranteed low skew < 100ps (max.)
Very low duty cycle distortion< 250ps (max.)
High speed propagation delay< 3ns (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
1:4 fanout
Maximum output rise and fall time < 1.5ns (max.)
Low input capacitance: 3pF typical
VCC = 3.3V ± 0.3V
Inputs can be driven from 3.3V or 5V components
Operating frequency up to 166MHz
