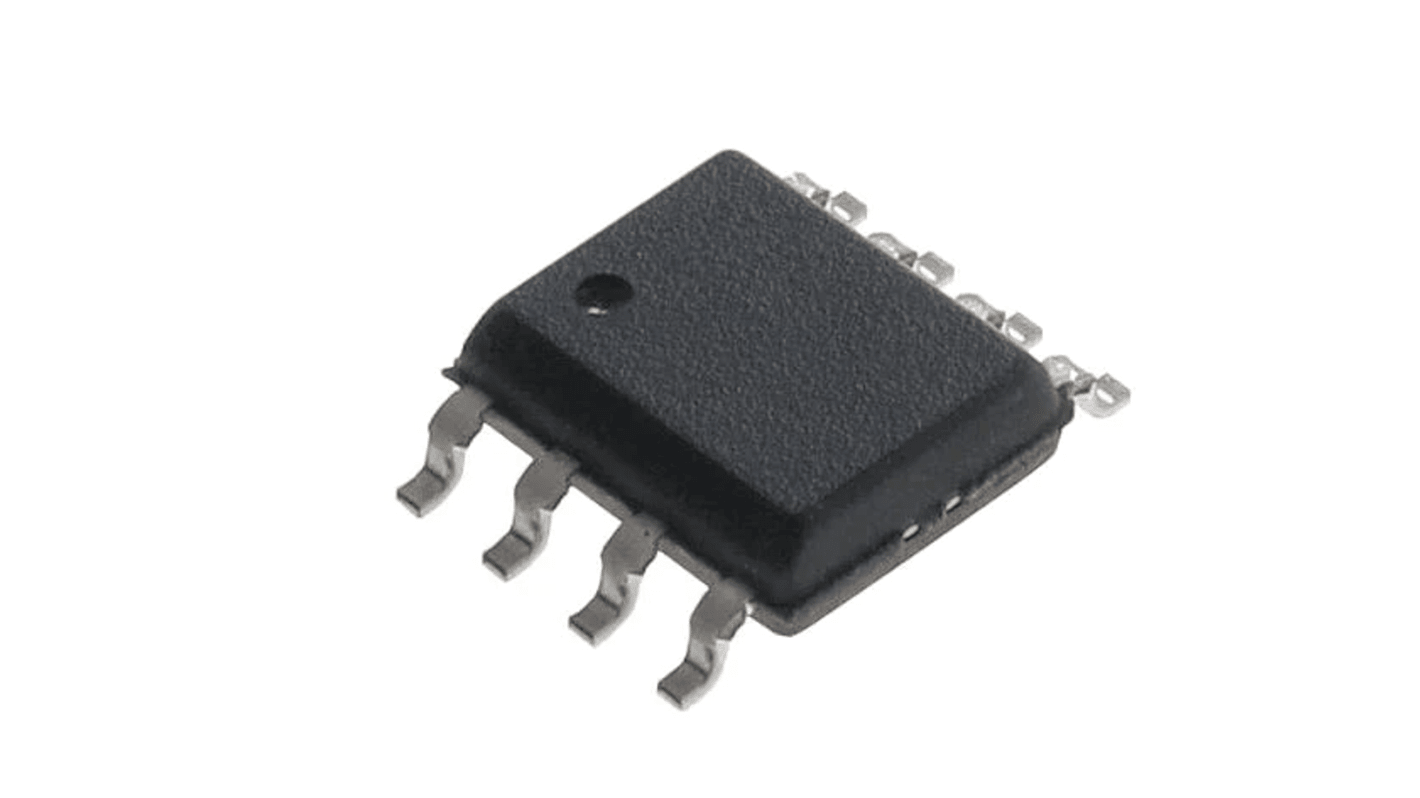

Renesas Electronics 2305A-1DCG8 Clock Buffer 8-Pin SOIC
- RS Stock No.:
- 264-3450
- Mfr. Part No.:
- 2305A-1DCG8
- Brand:
- Renesas Electronics
3000 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.445
(exc. VAT)
£0.534
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.445 | £1,335.00 |
*price indicative
- RS Stock No.:
- 264-3450
- Mfr. Part No.:
- 2305A-1DCG8
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
The Renesas Electronics high-speed phase-lock loop (PLL) clock buffer, designed to address high-speed clock distribution applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133 MHz.
Phase-lock loop clock distribution
Distributes one clock input to one bank of five outputs
Power down mode
Available in SOIC package
Distributes one clock input to one bank of five outputs
Power down mode
Available in SOIC package
Specifications
Attribute | Value |
|---|---|
| Maximum Supply Current | 100 μA |
| Maximum Input Frequency | 133MHz |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
