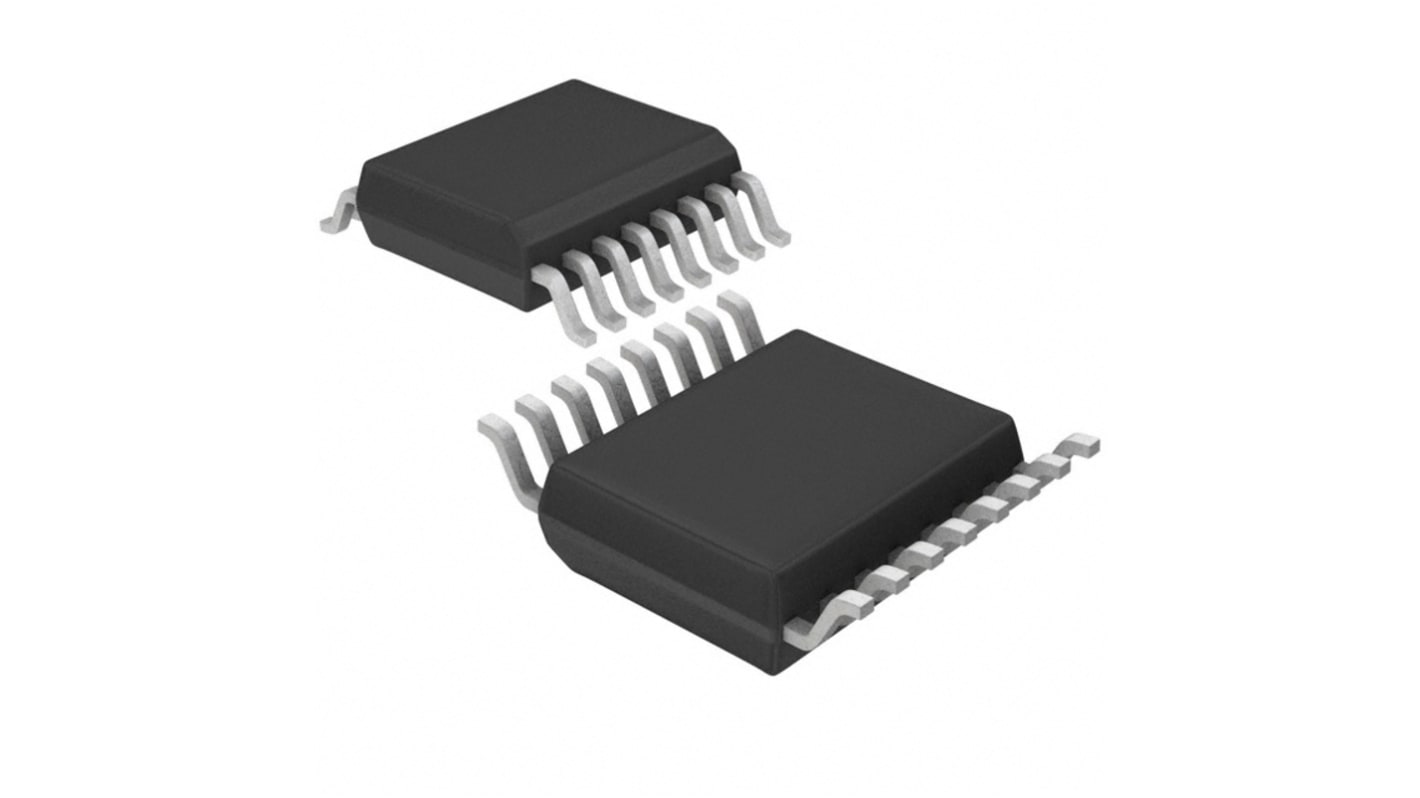

Renesas Electronics 557GI-03LFT Clock Generator 16-Pin TSSOP
- RS Stock No.:
- 235-8696
- Mfr. Part No.:
- 557GI-03LFT
- Brand:
- Renesas Electronics
Subtotal (1 reel of 2500 units)*
£4,120.00
(exc. VAT)
£4,945.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 2,500 unit(s), ready to ship
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £1.648 | £4,120.00 |
*price indicative
- RS Stock No.:
- 235-8696
- Mfr. Part No.:
- 557GI-03LFT
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Renesas Electronics | |
Maximum Supply Current | 78 mA | |
Maximum Input Frequency | 25MHz | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Pin Count | 16 | |
Dimensions | 5.00 x 4.40 x 1.00mm | |
Length | 5mm | |
Width | 4.4mm | |
Height | 1mm | |
Maximum Operating Supply Voltage | 3.63 V | |
Maximum Operating Temperature | 85 °C | |
Maximum Output Frequency | 200MHz | |
Minimum Operating Supply Voltage | 2.97 V | |
Minimum Output Frequency | 100MHz | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Renesas Electronics | ||
Maximum Supply Current 78 mA | ||
Maximum Input Frequency 25MHz | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Dimensions 5.00 x 4.40 x 1.00mm | ||
Length 5mm | ||
Width 4.4mm | ||
Height 1mm | ||
Maximum Operating Supply Voltage 3.63 V | ||
Maximum Operating Temperature 85 °C | ||
Maximum Output Frequency 200MHz | ||
Minimum Operating Supply Voltage 2.97 V | ||
Minimum Output Frequency 100MHz | ||
Minimum Operating Temperature -40 °C | ||
The Renesas Electronics spread spectrum clock generator that supports PCI express Gen 1 and Ethernet requirements. The device is used for PC or embedded systems to substantially reduce electromagnetic interference. The device provides two differential spread spectrum outputs. The spread type and amount are configured via select pin. Using patented Phase-Locked Loop techniques, the device takes a 25 MHz crystal input and produces two pairs of differential outputs at 25 MHz, 100 MHz, 125 MHz or 200 MHz clock frequencies for HCSL, and 25 MHz or 100 MHz for LVDS.
Compliant packaging
Supports hcsl or lvds output levels
Spread spectrum capability
Industrial and commercial temperature ranges
Supports hcsl or lvds output levels
Spread spectrum capability
Industrial and commercial temperature ranges
