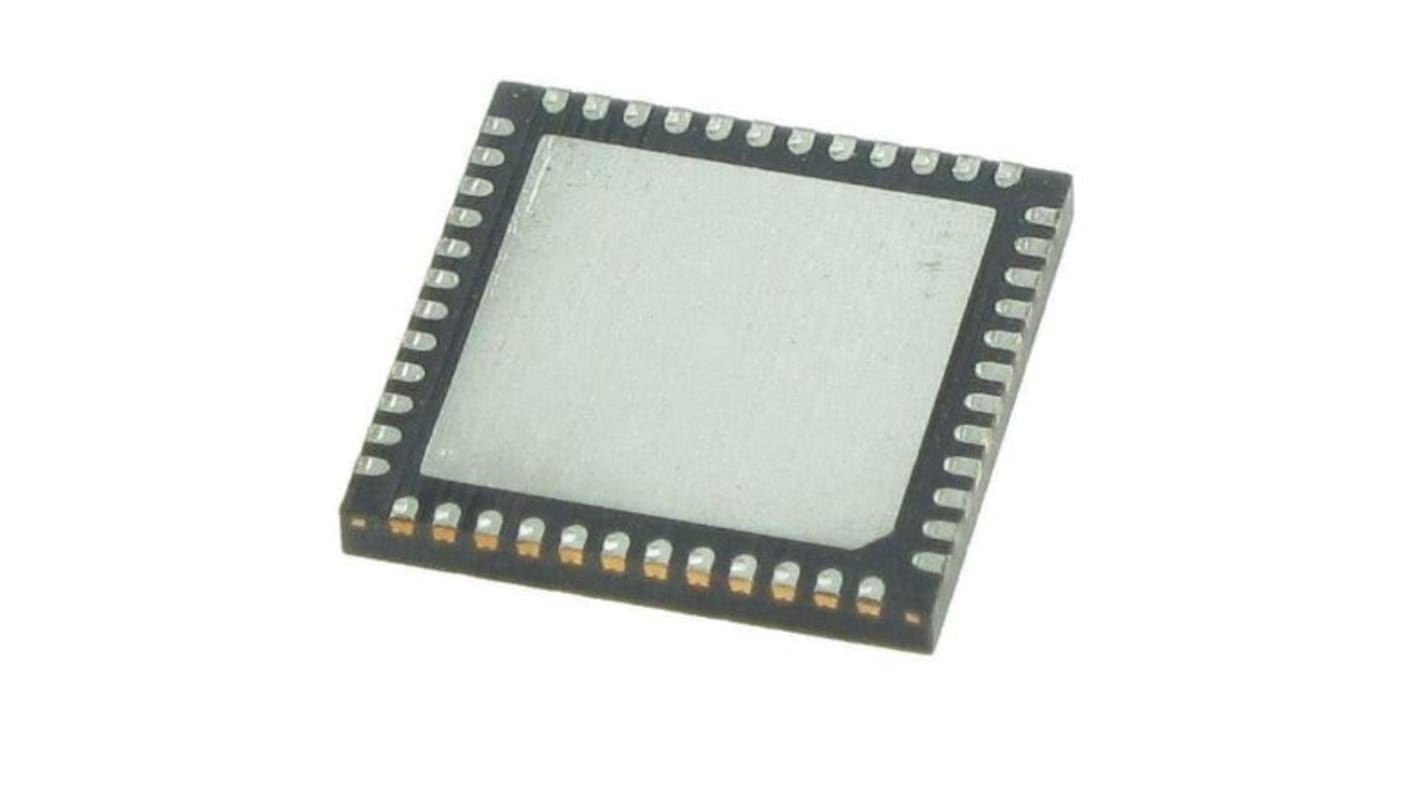

Renesas Electronics 9DBL0841BKILF Clock Buffer 48-Pin VFQFPN
- RS Stock No.:
- 216-6259
- Mfr. Part No.:
- 9DBL0841BKILF
- Brand:
- Renesas Electronics
Available to back order for despatch when stock is available
Price Each (In a Pack of 2)
£2.915
(exc. VAT)
£3.498
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £2.915 | £5.83 |
| 10 - 18 | £2.61 | £5.22 |
| 20 - 98 | £2.555 | £5.11 |
| 100 - 198 | £2.145 | £4.29 |
| 200 + | £2.105 | £4.21 |
| *price indicative | ||
- RS Stock No.:
- 216-6259
- Mfr. Part No.:
- 9DBL0841BKILF
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics 9DBL02x2/9DBL04x2/ 9DBL06x1/9DBL08x1 buffers are low-power, high-performance members of Renesas' full featured PCIe family. The buffers support PCIe Gen1 through Gen5.
2 to 8 Low-Power HCSL (LP-HCSL) outputs eliminate 4
resistors per output pair
9DBLxx4x devices provide integrated 100Ω terminations
9DBLxx5x devices provide integrated 85Ω terminations
See AN-891 for easy coupling to other logic families
Spread-spectrum compatible
Dedicated OE# pin for each output
1MHz to 200MHz operation in fan-out mode
3 selectable SMBus addresses
Extensive SMBus-selectable features allow optimization to
customer requirements
resistors per output pair
9DBLxx4x devices provide integrated 100Ω terminations
9DBLxx5x devices provide integrated 85Ω terminations
See AN-891 for easy coupling to other logic families
Spread-spectrum compatible
Dedicated OE# pin for each output
1MHz to 200MHz operation in fan-out mode
3 selectable SMBus addresses
Extensive SMBus-selectable features allow optimization to
customer requirements
Specifications
Attribute | Value |
|---|---|
| Maximum Supply Current | 25 mA |
| Maximum Input Frequency | 200MHz |
| Package Type | VFQFPN |
| Pin Count | 48 |
