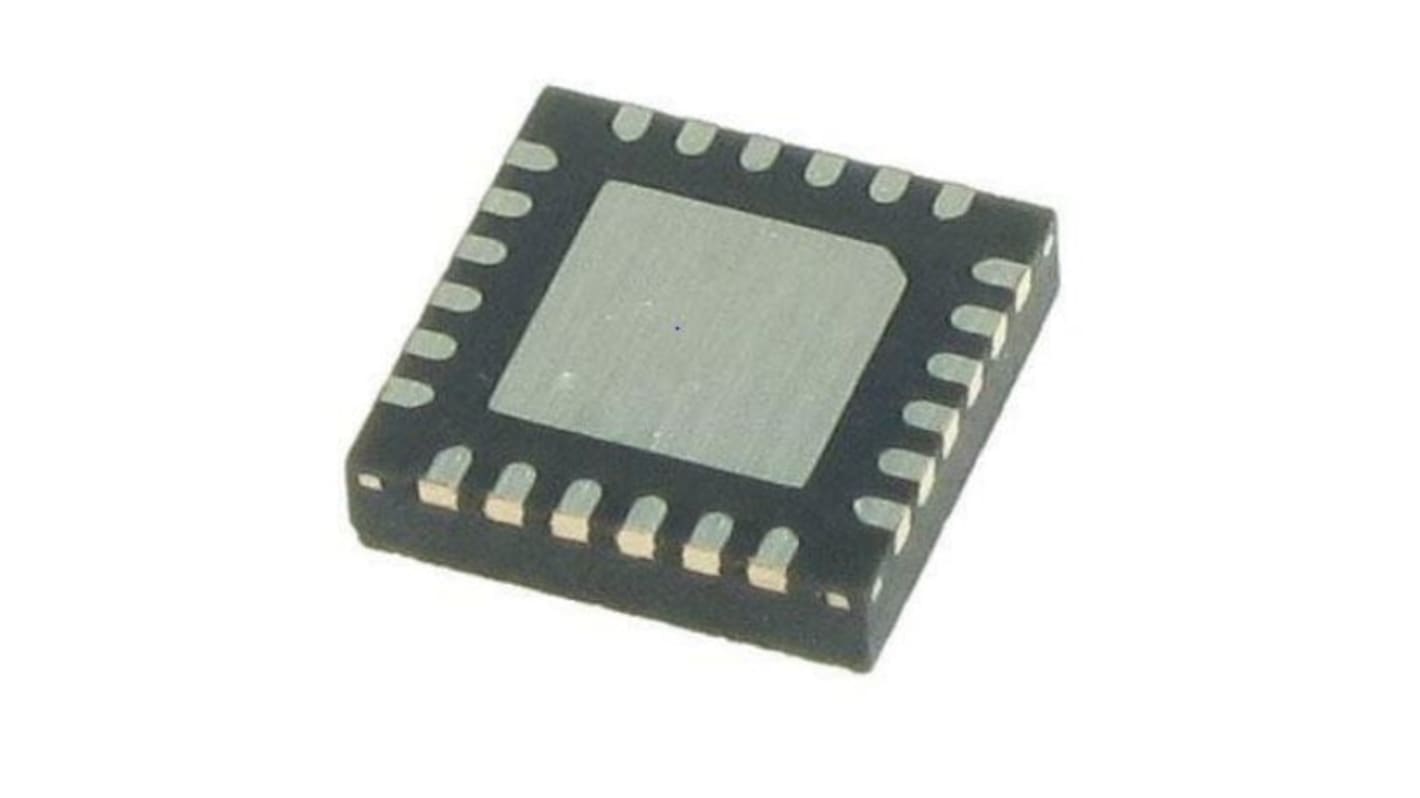

Renesas Electronics 9DBL0252BKILFT Clock Buffer 24-Pin VFQFPN-24
- RS Stock No.:
- 216-6256
- Mfr. Part No.:
- 9DBL0252BKILFT
- Brand:
- Renesas Electronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 216-6256
- Mfr. Part No.:
- 9DBL0252BKILFT
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Maximum Supply Current | 25 mA | |
| Maximum Input Frequency | 175MHz | |
| Package Type | VFQFPN-24 | |
| Pin Count | 24 | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Maximum Supply Current 25 mA | ||
Maximum Input Frequency 175MHz | ||
Package Type VFQFPN-24 | ||
Pin Count 24 | ||
The Renesas Electronics 9DBL02x2/9DBL04x2/ 9DBL06x1/9DBL08x1 buffers are low-power, high-performance members of Renesas' full featured PCIe family. The buffers support PCIe Gen1 through Gen5.
2 to 8 Low-Power HCSL (LP-HCSL) outputs eliminate 4
resistors per output pair
9DBLxx4x devices provide integrated 100Ω terminations
9DBLxx5x devices provide integrated 85Ω terminations
See AN-891 for easy coupling to other logic families
Spread-spectrum compatible
Dedicated OE# pin for each output
1MHz to 200MHz operation in fan-out mode
3 selectable SMBus addresses
Extensive SMBus-selectable features allow optimization to
customer requirements
resistors per output pair
9DBLxx4x devices provide integrated 100Ω terminations
9DBLxx5x devices provide integrated 85Ω terminations
See AN-891 for easy coupling to other logic families
Spread-spectrum compatible
Dedicated OE# pin for each output
1MHz to 200MHz operation in fan-out mode
3 selectable SMBus addresses
Extensive SMBus-selectable features allow optimization to
customer requirements
