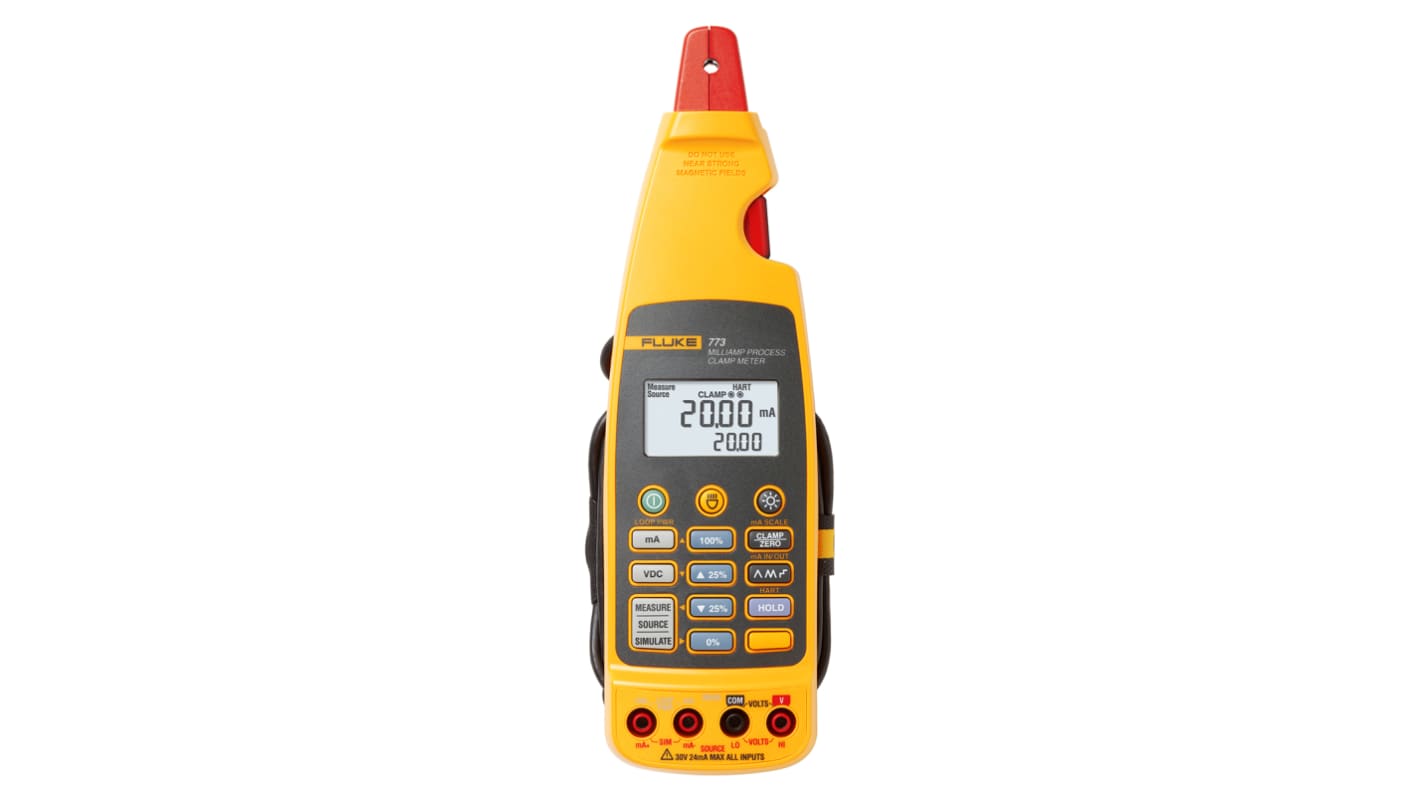

Fluke 773 DC Current Clamp Meter, 100mA dc With UKAS Calibration

  • RS Stock No. 791-5805
  • Mfr. Part No. Fluke 773
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

772 & 773 Milliamp Process Clamp Meters

Need more hours in your day? Save time by not breaking the loop on 4-20 mA signal measurements with the Fluke 771 Process Clamp Meter.

Are you spending time:

•Taking mA measurements by removing a wire and breaking the loop •Calling the control room to isolate a loop
•Testing analog input/output on a console
•Troubleshooting devices with mA inputs and outputs
•Repairing intermittent or erratic 4-20 mA loops
•Going back to the shop to get extra tools

If you need more time in your busy day take a good look at the Fluke 772 and 773 mA Clamp Meters. Designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.

Here are some specific ways the Fluke 772 and 773 clamp meters will help you:

Measure mA signals for PLC and control system analog I/O without breaking the loop
•Measures low level dc current
•Correlate process indication with real physical value

Measure output signals from transmitters without breaking the loop
•Maintain and troubleshoot process and automation equipment without breaking the loop
•No disruption to the process

Detachable clamp with extension cable
•Measurements in tight locations
•Enables measurements in difficult situations

Measurement Spotlight
•Illuminates hard to see wires in dark enclosures
•Measurement process is easier and quicker

Measure up to 99.9 mA range non-contact
•Wide range of measurements
•Measures 10 to 50 mA signals in older control systems

Automatic power off
•After 15 minutes and 2 minute automatic off for backlight and spotlight
•Saves battery life

Want simultaneous mA source/measure? Consider the Fluke 773 Milliamp Clamp Meter.

Features and Benefits

•Best in class 0.2% accuracy
•0.01 mA resolution and sensitivity
•Measure 4 to 20 mA signals without “breaking the loop”
•Measure mA signals for PLC and control system analog I/O
•Dual backlit display with both mA measurement and percent of 4 to 20 mA span
•Measurement Spotlight illuminates hard to see wires in dark enclosures
•Detachable clamp with extension cable for measurements in tight locations
•Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
•Automatically change the 4 to 20 mA output for remote testing
•Power saving features, auto-off, backlight timeout extend battery life
•Hold function captures and displays changing measurements
•Measure 4 to 20 mA signals with in-circuit measurement
•Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
•Source 4 to 20 mA signals for testing control system I/O or I/Ps
•mA output linear ramp or 25% step output
•Automatically change the 4 to 20 mA output for remote testing

Fluke 772 additional features:

Source 4 to 20 mA signals for testing control system I/O or I/Ps Simulate 4 to 20 mA signals for testing control system I/O
Measure 4 to 20 mA signals with in-circuit measurement
Simultaneously measure mA in-circuit with 24 V loop power for powering and testing transmitters
Source mA output signals in a linear ramp or 25 % step output for remote testing
Power saving features, auto-off, backlight timeout extend battery life

Fluke 773 additional features:

DC voltage measurement to verify 24 V power supplies or voltage I/O signals
Source dc voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal
Scaled mA output corresponds to the 4 to 20 mA signal measured by the mA clamp enables a logging DMM or other device to record the 4 to 20 mA signal without breaking the loop mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
Voltage output linear ramp or 25 % step output
Automatically change the voltage output for remote testing

Note

For details of the 771 process clamp meter see stock no. 287-642

Supplied with

4 AA alkaline batteries, test lead set with integral prods and 2 crocodile clips; test leads with integral grabber clips; soft carry case & instructions

Buy Fluke products and claim another Fluke product free.
Between September 1, 2020 and December 15, 2020 customer who purchase a Fluke product (inc. Fluke Networks) have the opportunity to claim a free product through the Fluke website with the original proof of purchase, invoice, or receipt. The product can be claimed by visiting the Fluke website - www.fluke.co.uk/freefluke. There are six levels of free tools to claim. They are separated based on the value of the qualifying purchase, starting at as little as only £100. For each level there is a fixed range of products to claim, based on the value of the original purchase.

Specifications
Attribute Value
Absolute Maximum DC Current Measurement 100mA dc
Absolute Maximum DC Voltage Measurement 30V dc
Model Number 773
Calibrated UKAS
DC Current Measurement Resolution 10µA dc
Best DC Current Accuracy ±1% + 5 Digits
Clamp Meter Type DC Current Clamp Meter
Best DC Voltage Accuracy 0.2% + 2 Digits
Height 41mm
Battery Type AA
Power Source Battery
Dimensions 248 x 76 x 41mm
DC Voltage Measurement Resolution 0.01V dc
Functions Measured AC Current, DC Voltage
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Display Type LCD
Maximum Conductor Size 4.5mm
Battery Life 12 h
Weight 420g
Width 76mm
Length 248mm
3 In stock for delivery within 2 working days
Price Each
£ 1,108.00
(exc. VAT)
£ 1,329.60
(inc. VAT)
Units
Per unit
1 +
£1,108.00
Not available for guaranteed pre 9am/10am delivery
