Chauvin Arnoux MA400D-170 Current Clamp Meter, Max Current 399.9A ac CAT IV 600 V With RS Calibration

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

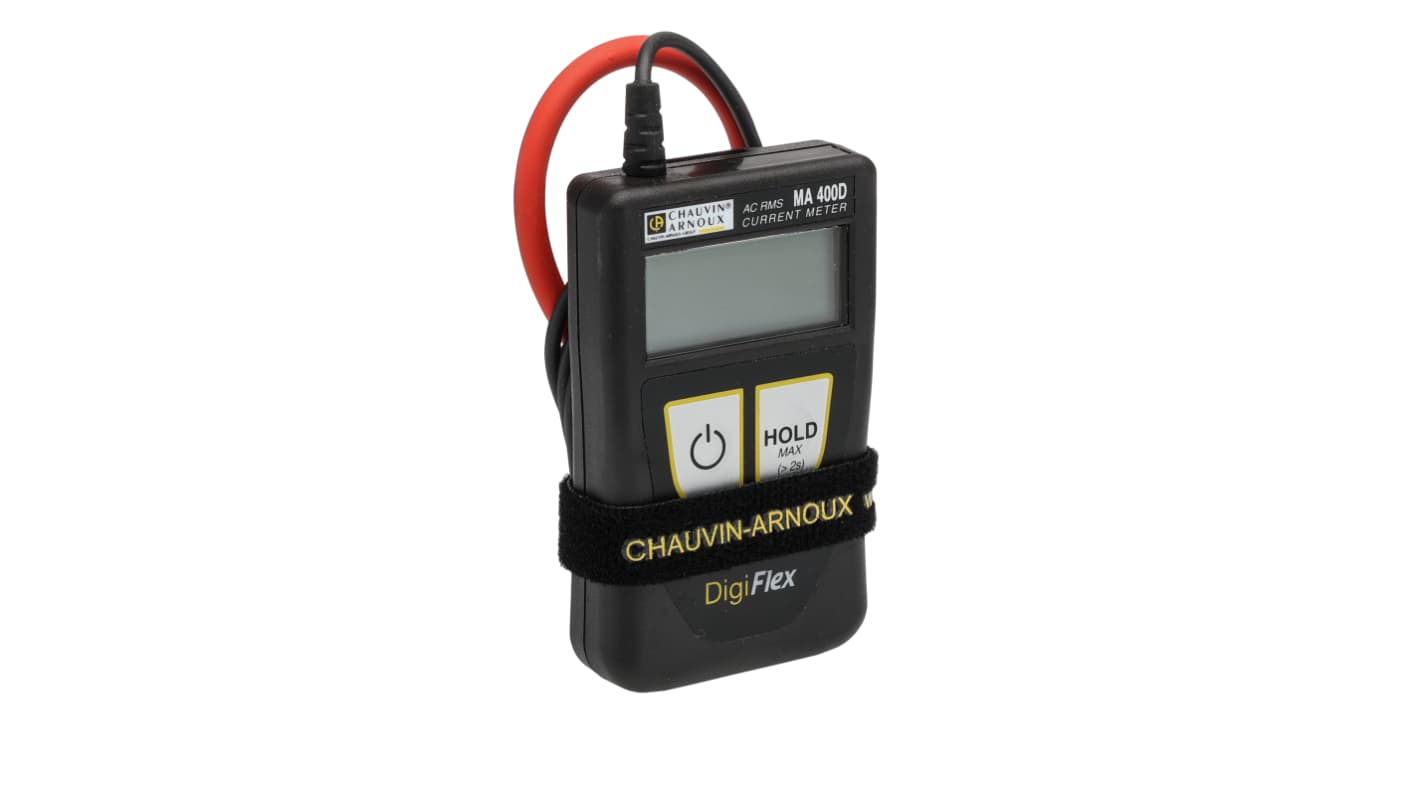

DigiFlex MA400D and MA4000D Ammeters with flexible sensor

The DigiFlex can be used for TRMS AC current measurements while also providing a solution when access to the electrical conductors is difficult. The values are read directly on the built-in 4000 count display.

DigiFlex MA400D version

The MA400D version, whose measurement range starts at 20 mA, is designed for work in residential conditions and can also be used to check electricity distribution points up to 400 A
Ammeter with a flexible sensor for measuring current on electrical conductors up to a diameter of 45mm (MD400-170) or 70mm (MD400-250)

DigiFlex MA4000D version

The DigiFlex MA4000D is a flexible current sensor with a measurement range up to 4000A, making it perfectly suited for use on power installations in the industrial and energy production sectors
The flexible sensor measure 350mm in length and can be fitted around electrical conductors with a diameter up to 100mm

Standards

IEC 61010 CAT IV 600V

Supplied with

2 x 1.5V AAA batteries, 1 elastic strap and an operating manual in 5 languages

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 399.9A ac
Model Number MA400D-170
Calibrated RSCAL
AC Current Measurement Resolution 1mA ac
Clamp Meter Type Current
Best AC Current Accuracy ±2% +10 counts
Height 20mm
Battery Type 1.5 V AAA/LR3
Safety Category CAT IV 600 V
Width 60mm
Power Source Battery
Minimum Operating Temperature 0°C
True RMS Yes
Weight 130g
Maximum Conductor Size 45mm
Safety Category Level CAT IV
Maximum Operating Temperature +50°C
Display Type LCD
Functions Measured AC Current
Dimensions 100 x 60 x 20mm
Length 100mm
Safety Category Voltage 600V
10 In stock for delivery within 2 working days
Price Each
Was £179.00
£ 161.42
(exc. VAT)
£ 193.70
(inc. VAT)
Units
Per unit
1 +
£161.42
Not available for guaranteed pre 9am/10am delivery
