Fluke 376 Clamp Meter, 999.9A dc, Max Current 2.5kA ac CAT III 1000 V, CAT IV 600 V With UKAS Calibration

RS Stock No.:: 705-6750
Mfr. Part No.:: FLUKE-376/E
Brand:: Fluke

Fluke 376 Clamp Meter, 999.9A dc, Max Current 2.5kA ac CAT III 1000 V, CAT IV 600 V With UKAS Calibration

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

RS Stock No.:: 705-6750
Mfr. Part No.:: FLUKE-376/E
Brand:: Fluke

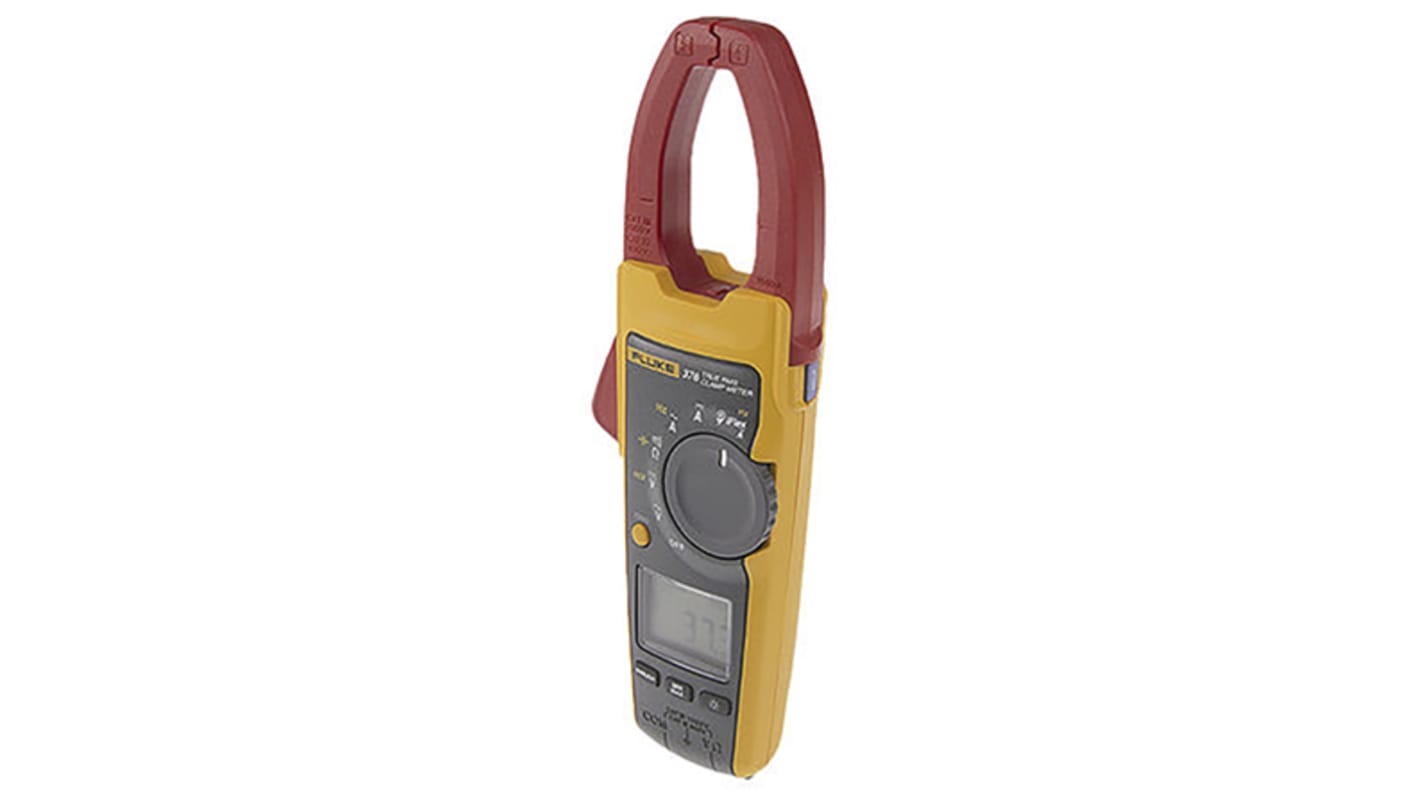

Fluke 376 True RMS AC/DC Clampmeter with iFlex

The Fluke 376 clampmeter offers improved performance for a wide range of current measurement situations. With True RMS voltage and current measurements, the Fluke 376 can read up to 1000 V and 1000 A in both ac and dc modes. The new 18 in (458 mm) iFlex flexible current probe is included. It expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure around awkward-sized conductors and improved wire access. The Fluke 376 is the direct replacement for the Fluke 337 clampmeter.

Features & Benefits

Large backlit display1000 A ac and dc current measurement with fixed jaws2500 A ac current measurement with iFlex flexible current probe1000 V ac (True RMS) and dc voltage measurement500 mV dc measurement range to interface with other accessoriesFrequency, capacitance, resistance and continuity measurementDisplay HOLD, Min, max, average and inrush recording Low pass filter for stable readings in noisy environmentsCAT IV 600 V, CAT III 1000 V safety rating

Measurement Range Resolution Accuracy

Measurement Range Resolution Accuracy AC Current via Jaw 1000 A 0.1 A ±(2% + 5 d) AC Current via iFlex 2500 A 0.1 A ±(3% + 5 d) DC Current 1000 A 0.1 A ±(2% + 5 d) AC Voltage 1000 V 0.1 V ±(1.5% + 5 d) DC Voltage 1000 V 0.1 mV ±(1% + 5 d) Resistance 60000 Ω 0.1 Ω ±(1% + 5 d) Frequency 500 Hz 0.1 Hz ±(0.5% + 5 d) Capacitance 1000 μF 1 μF ±(1% + 4 d) Fixed jaw capacity 32mm diameter (750 MCM or 2-500 MCM)

1000 A ac and dc current measurement 2500 A ac current measurement with iFlex flexible current probe 1000 V ac and dc voltage measurement True-rms voltage and current for accurate measurements on non-linear signals Frequency measurement to 500 Hz with body jaw and iFlex Resistance measurement to 60 kΩ with continuity detection Min, max, average, and inrush recording to capture variations automatically 500 mV dc measurement range to interface with other accessories 1000 μF capacitance measurement Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included) TPAK magnetic hanging strap (included) Integrated VFD low pass filter for accurate motor drive measurements Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it CAT IV 600 V, CAT III 1000 V safety rating

Supplied with

18in iFlex current probe, test leads, soft carry case, 2 x AA alkaline batteries and instructions

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Absolute Maximum AC Current Measurement	2.5kA ac
	Absolute Maximum DC Current Measurement	999.9A dc
	Absolute Maximum AC Voltage Measurement	1000V ac
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum Resistance Measurement	60kΩ
	Model Number	376
	Calibrated	UKAS
	AC Current Measurement Resolution	100mA ac
	DC Current Measurement Resolution	100mA dc
	Best DC Current Accuracy	±2% + 5 Digits
	Clamp Meter Type	Capacitance, Continuity, Current, Frequency, Resistance, Voltage
	Best AC Current Accuracy	±2% +5 digits
	Best AC Voltage Accuracy	±1.5% + 5 Digits
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance
	Best DC Voltage Accuracy	±1% + 5 Digits
	True RMS	Yes
	Length	248mm
	Best Resistance Measurement Accuracy	±1% + 5 Digits
	Safety Category	CAT III 1000 V, CAT IV 600 V
	Width	85mm
	Battery Type	AA
	Safety Category Voltage	600 V, 1000 V
	Power Source	Battery
	Safety Category Level	CAT II, CAT IV
	Maximum Conductor Size	34mm
	AC Voltage Measurement Resolution	0.1V ac
	Display Type	LCD
	Height	45mm
	Minimum Operating Temperature	-10°C
	Resistance Measurement Resolution	100mΩ
	Dimensions	248 x 85 x 45mm
	DC Voltage Measurement Resolution	0.1V dc
	Maximum Operating Temperature	+50°C
	Weight	375g

	Select all
	Brand Fluke
	Absolute Maximum AC Current Measurement 2.5kA ac
	Absolute Maximum DC Current Measurement 999.9A dc
	Absolute Maximum AC Voltage Measurement 1000V ac
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum Resistance Measurement 60kΩ
	Model Number 376
	Calibrated UKAS
	AC Current Measurement Resolution 100mA ac
	DC Current Measurement Resolution 100mA dc
	Best DC Current Accuracy ±2% + 5 Digits
	Clamp Meter Type Capacitance, Continuity, Current, Frequency, Resistance, Voltage
	Best AC Current Accuracy ±2% +5 digits
	Best AC Voltage Accuracy ±1.5% + 5 Digits
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance
	Best DC Voltage Accuracy ±1% + 5 Digits
	True RMS Yes
	Length 248mm
	Best Resistance Measurement Accuracy ±1% + 5 Digits
	Safety Category CAT III 1000 V, CAT IV 600 V
	Width 85mm
	Battery Type AA
	Safety Category Voltage 600 V, 1000 V
	Power Source Battery
	Safety Category Level CAT II, CAT IV
	Maximum Conductor Size 34mm
	AC Voltage Measurement Resolution 0.1V ac
	Display Type LCD
	Height 45mm
	Minimum Operating Temperature -10°C
	Resistance Measurement Resolution 100mΩ
	Dimensions 248 x 85 x 45mm
	DC Voltage Measurement Resolution 0.1V dc
	Maximum Operating Temperature +50°C
	Weight 375g
