Fluke 325 Clamp Meter, 400A dc, Max Current 400A ac
- RS Stock No.:
- 240-5405
- Mfr. Part No.:
- FLK-325 CLAMPKIT-2
- Brand:
- Fluke
9 In stock - FREE next working day delivery available
158 available from Europe for delivery within 2 working day(s).
Added
Price Each
£257.00
(exc. VAT)
£308.40
(inc. VAT)
| Units | Per unit |
| 1 + | £257.00 |
- RS Stock No.:
- 240-5405
- Mfr. Part No.:
- FLK-325 CLAMPKIT-2
- Brand:
- Fluke
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

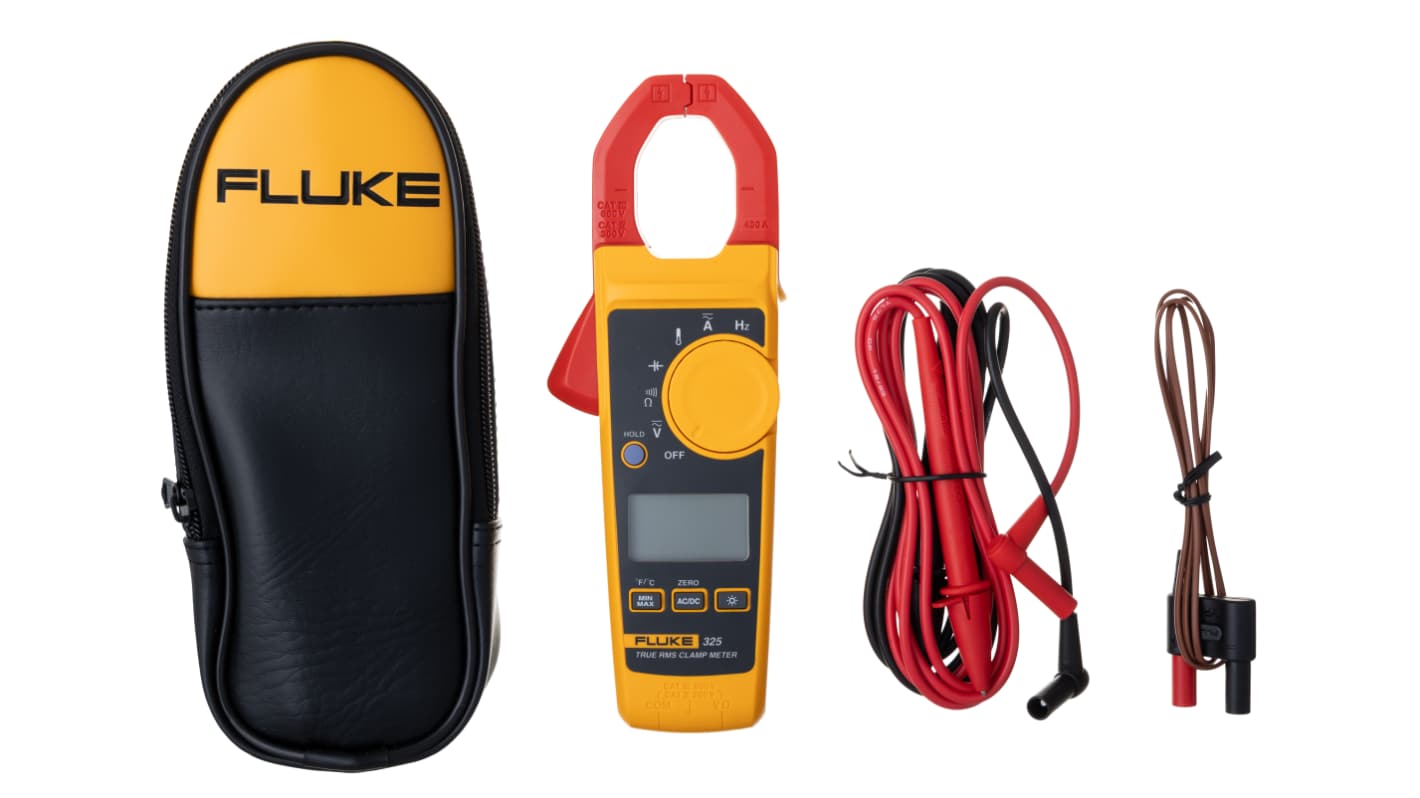

FLUKE Clamp Meter, 283g Weight, Up To 30Ω Continuity - 325 Series - FLK-325 CLAMPKIT-2
Need to stay in the know about the electrical properties of your industrial equipment? Monitor them with this clamp meter from FLUKE. It comes with test leads and a thermocouple that you can use to assess characteristics like voltage, temperature and resistance. Thanks to a wide AC and DC current measurement range between 40 and 400A, this versatile piece of kit is useful in light-duty to heavy-duty applications. It's battery-powered, eliminating the need for a wired connection and making it comfortable to carry around as you get on with your work.
Features & Benefits
• Integrated backlight for easy reading in low-light areas
• Compact dimensions of 207 (H) x 75 (W) x 34 (D) for comfortable handheld use
• Comes in a soft carrying case to protect against bumps and scratches
• Data hold function keeps measured values on the screen for easy recording
• Compact dimensions of 207 (H) x 75 (W) x 34 (D) for comfortable handheld use
• Comes in a soft carrying case to protect against bumps and scratches
• Data hold function keeps measured values on the screen for easy recording
Applications
• Residential wiring
• Office buildings
• HVAC systems
• Office buildings
• HVAC systems
How accurate is this meter?
This unit has measurement accuracies ranging from 1.0% ± 5 digits to 2.5% ± 5 digits for its various parameters, so you can rely on it for accurate readings.
Certificate No.
CE certified
cUS approved
TUV approved
cUS approved
TUV approved
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum DC Current Measurement | 400A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 40kΩ |
| Model Number | 325 |
| Best DC Current Accuracy | ±2% + 5 digit |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±2% + 5 digit |
| Best AC Voltage Accuracy | ±1.5% + 5 digit |
| Best DC Voltage Accuracy | ±1% + 5 digit |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature |
| True RMS | Yes |
| DC Current Measurement Range | 40 → 400 A |
| Length | 34mm |
| Width | 75mm |
| Height | 207mm |
| Minimum Operating Temperature | -10°C |
| Weight | 283g |
| AC Voltage Measurement Range | 600 V |
| AC Current Measurement Range | 40 → 400 A |
| Dimensions | 207 x 75 x 34mm |
| Maximum Operating Temperature | +400°C |
| Best Resistance Measurement Accuracy | 1.0% ± 5 digits |
