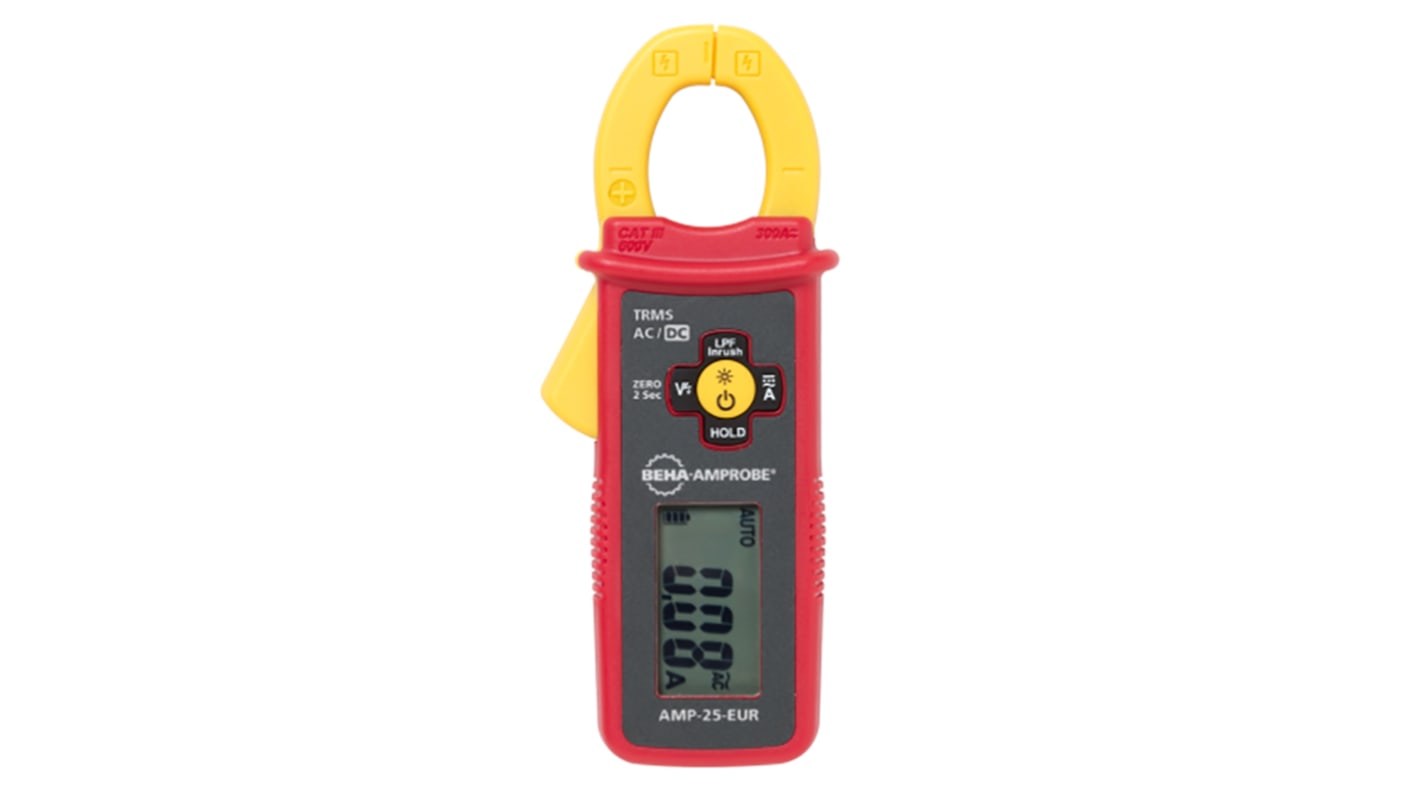

Beha-Amprobe AMP-25-EUR AC/DC Clamp Meter, Max Current 300A ac, 300A dc CAT III 600 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Mini current clamp (AC/DC). Small size doesnt mean small features. The Beha-Amprobe AMP-25-EUR Mini-Clamp is pocket-sized, enabling quick and easy spot checks of electrical systems. With its rugged construction, the AMP-25-EUR is a must-have professional troubleshooting tool for commercial electricians and electrical contractors. The AMP-25-EUR is designed to measure AC/DC load current and inrush current for motors. Essential features like True-RMS, non-contact voltage and low pass filter make this clamp stand tall next to clamps twice its size. With the AMP-25-EUR, you never have to sacrifice performance for size.

True RMS current measurementLow pass filterMeasurement of inrush currentNon-contact voltage detectionAutomatic range selectionZero adjustmentIntegrated measurement memory (data hold)Jaw opening 25 mmAuto power-offVery compact designIlluminated display

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 300A ac
Absolute Maximum DC Current Measurement 300A dc
Model Number AMP-25-EUR
AC Current Measurement Resolution 10mA
DC Current Measurement Resolution 10mA
Best DC Current Accuracy ±1.5 % + 5 LSD
Clamp Meter Type AC/DC Clamp Meter
Best AC Current Accuracy ±1.5 % + 5 LSD (100 <arrow/> 400 Hz <gteq/> 3 A), ±1.5 % + 5 LSD (50 <arrow/> 100 Hz <gteq/> 3 A)
Battery Life 20 h
Jaw Capacity Busbars 25mm
Weight 140g
Safety Category Level CAT III
Safety Category Voltage 600V
Battery Type 2 x 1.5 V LR44
Dimensions 32 x 60 x 147mm
Functions Measured AC Current, DC Current
Safety Category CAT III 600 V
True RMS Yes
Maximum Conductor Size 25mm
Length 32mm
Width 60mm
Non-Contact Voltage Detector Yes
Height 147mm
Minimum Operating Temperature 0 (<lteq/> 80% RH) °C, +30 (<lteq/> 75% RH) °C, +40 (<lteq/> 45% RH) °C
Power Source Battery
Display Type LCD
Maximum Operating Temperature +30 (<lteq/> 80% RH) °C, +40 (<lteq/> 75% RH) °C, +50 (<lteq/> 45% RH) °C
3 In stock for delivery within 2 working days
Price Each
£ 224.00
(exc. VAT)
£ 268.80
(inc. VAT)
Units
Per unit
1 +
£224.00
Not available for guaranteed pre 9am/10am delivery
