RS PRO ICMA1 Clamp Meter, 300A dc, Max Current 300A ac CAT III 600 V
- RS Stock No.:
- 123-3256
- Distrelec Article No.:
- 304-02-630
- Brand:
- RS PRO
Subtotal (1 unit)*
£106.44
(exc. VAT)
£127.73
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 155 left, shipping from 06 October 2025
- Plus 6 left, shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £106.44 |
*price indicative
- RS Stock No.:
- 123-3256
- Distrelec Article No.:
- 304-02-630
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Absolute Maximum AC Current Measurement | 300A ac | |
| Absolute Maximum DC Current Measurement | 300A dc | |
| Model Number | ICMA1 | |
| AC Current Measurement Resolution | 10mA | |
| DC Current Measurement Resolution | 10mA | |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) | |
| Jaw Capacity Busbars | 25mm | |
| Functions Measured | AC Current, DC Current, Inrush Current, Low Pass Filter | |
| True RMS | Yes | |
| Battery Type | A76, LR44 | |
| Dimensions | 60 x 31 x 147mm | |
| Display Type | LCD | |
| Safety Category | CAT III 600 V | |
| Maximum Operating Temperature | +50°C | |
| Safety Category Voltage | 600V | |
| Battery Life | 20 h | |
| Height | 147mm | |
| Safety Category Level | CAT III | |
| Power Source | Battery | |
| Minimum Operating Temperature | 0°C | |
| Non-Contact Voltage Detector | Yes | |
| Maximum Conductor Size | 25 (Dia.)mm | |
| Length | 60mm | |
| Width | 31mm | |
| Weight | 140g | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Absolute Maximum AC Current Measurement 300A ac | ||
Absolute Maximum DC Current Measurement 300A dc | ||
Model Number ICMA1 | ||
AC Current Measurement Resolution 10mA | ||
DC Current Measurement Resolution 10mA | ||
Best DC Current Accuracy ±(1.5% rdg + 5dgts) | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Best AC Current Accuracy ±(1.5% rdg + 5dgts) | ||
Jaw Capacity Busbars 25mm | ||
Functions Measured AC Current, DC Current, Inrush Current, Low Pass Filter | ||
True RMS Yes | ||
Battery Type A76, LR44 | ||
Dimensions 60 x 31 x 147mm | ||
Display Type LCD | ||
Safety Category CAT III 600 V | ||
Maximum Operating Temperature +50°C | ||
Safety Category Voltage 600V | ||
Battery Life 20 h | ||
Height 147mm | ||
Safety Category Level CAT III | ||
Power Source Battery | ||
Minimum Operating Temperature 0°C | ||
Non-Contact Voltage Detector Yes | ||
Maximum Conductor Size 25 (Dia.)mm | ||
Length 60mm | ||
Width 31mm | ||
Weight 140g | ||
- COO (Country of Origin):
- TW

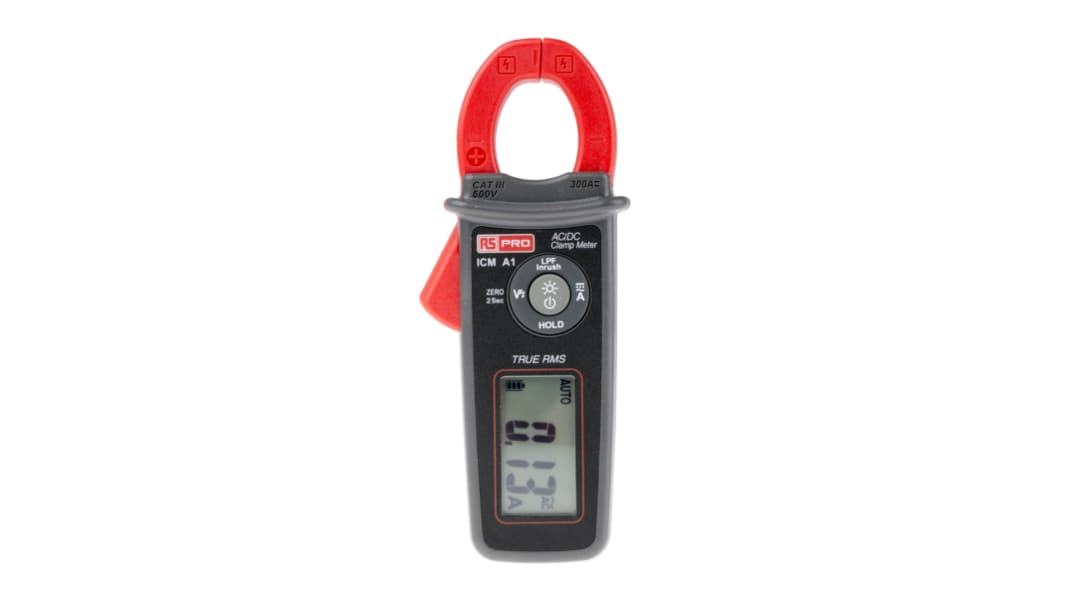

RS PRO ICMA1 Current Clampmeter
From RS PRO, this ICMA1 Clamp meter is a high performing solution for current measurement. The clampmeter utilises Hall Effect technology and nickel steel alloy jaws for precise measurement of ac and dc current up to 300 A.
It functions as a current meter and can measure inrush current and low pass filter.
Battery-powered for maximum portability, and with a large backlit screen, this current clamp meter is ideal for on-the-go applications in almost any environment.
It is also supplied in a carry case to keep the clampmeter safe and secure during transit.
Features and Benefits
• 6000 Count large-scale LCD display with backlit
• AC-DC current measuring capability up to 300 A
• Automatically detect DCA/ACA with AC True RMS reading mode
• 10 mA Resolution
• 1.5% basic DCA/ACA accuracy
• Inrush Current Measurement for monitoring motor start-up current
• Smart Data Hold
• Low Pass Filter for variable speed drive applications
• DCA Zeroing
• Auto Power Off (20 min.)
• VoltSense™ feature (Non-contact voltage detecting)
• Up to 25 mm dia. Conductor size
Applications
This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC and DC Current as well as inrush current. This has the advantage of allowing electricians to take a reading from a wire without touching it, which is both more convenient and safer than other methods.
They are used for measuring high levels of current in service and maintenance applications. They are also used when installing electrical equipment.
Why RS PRO?
RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.
When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.
It functions as a current meter and can measure inrush current and low pass filter.
Battery-powered for maximum portability, and with a large backlit screen, this current clamp meter is ideal for on-the-go applications in almost any environment.
It is also supplied in a carry case to keep the clampmeter safe and secure during transit.
Features and Benefits
• 6000 Count large-scale LCD display with backlit
• AC-DC current measuring capability up to 300 A
• Automatically detect DCA/ACA with AC True RMS reading mode
• 10 mA Resolution
• 1.5% basic DCA/ACA accuracy
• Inrush Current Measurement for monitoring motor start-up current
• Smart Data Hold
• Low Pass Filter for variable speed drive applications
• DCA Zeroing
• Auto Power Off (20 min.)
• VoltSense™ feature (Non-contact voltage detecting)
• Up to 25 mm dia. Conductor size
Applications
This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC and DC Current as well as inrush current. This has the advantage of allowing electricians to take a reading from a wire without touching it, which is both more convenient and safer than other methods.
They are used for measuring high levels of current in service and maintenance applications. They are also used when installing electrical equipment.
Why RS PRO?
RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.
When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.
Standards
IEC 61010-1: CAT III 600 V
Supplied with
LR44 button cells (installed), user manual and carrying pouch
