RS PRO ICMA6 Current, Voltage Clamp Meter, Max Current 600A ac CAT II 1000 V, CAT III 600 V With UKAS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

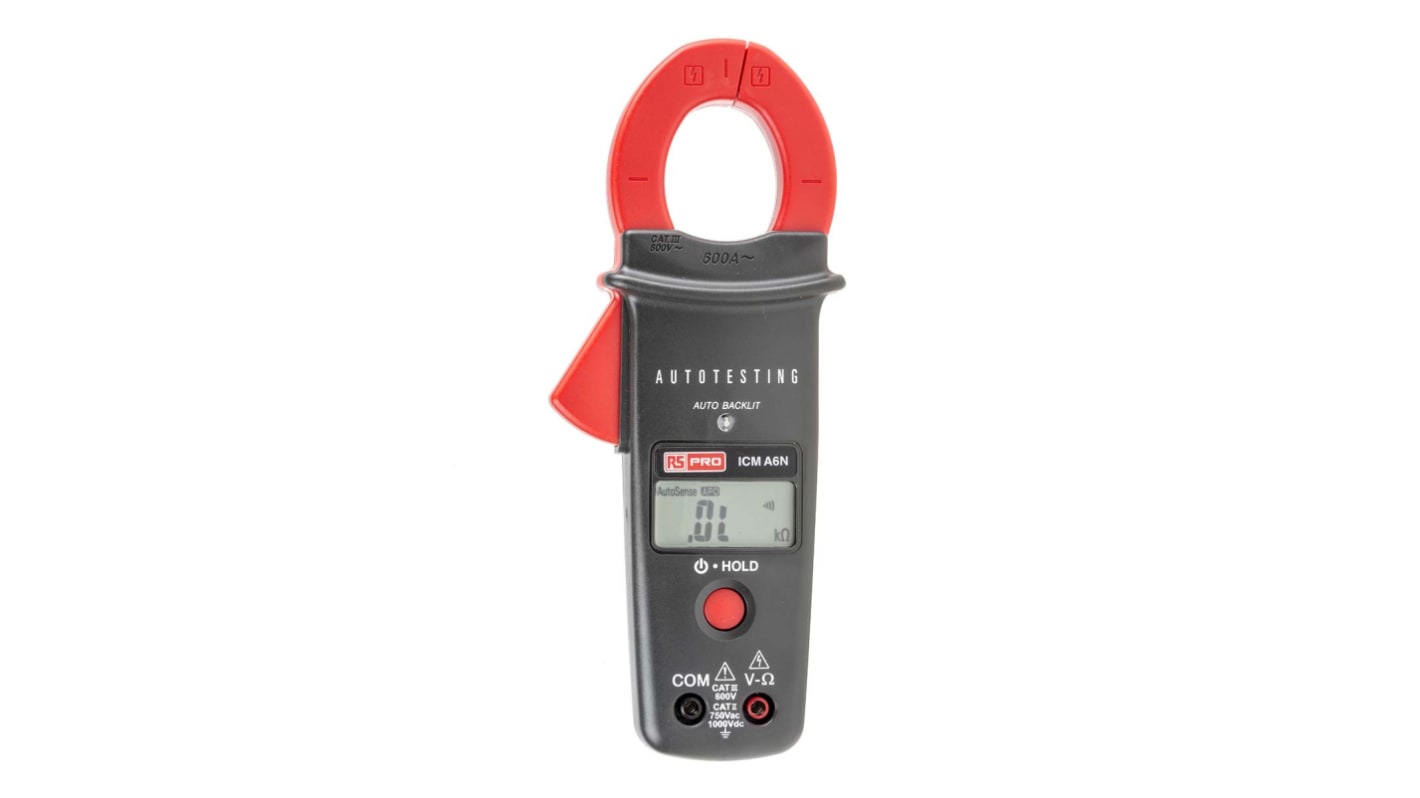

RS Pro ICMA6N Clampmeter

RS Pro ICMA6N Fully automatic intelligent tester that selects the measuring function dependent on input terminal and current clamp conditions. No range of function selection is necessary. The clamp meter measures AC voltage, DC voltage, resistance and AC current.

Features and Benefits

10000 Counts LCD display with annunciators
Auto sensing on ACV, DCV, Ω, ACA
600 A ac measurement capability
750 V ac / 1000 V dc measurement range
2 kΩ resistance range
Continuity and Diode Test
32 mm conductor jaw capacity
Display hold
Auto-power off
Conforms to EN61010-1 (safety rating) CAT III 600 V, CAT II 1000 V

Supplied with

Test leads, carry case, 2 x AA batteries and instruction manual

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 600A ac
Absolute Maximum AC Voltage Measurement 750V ac
Absolute Maximum DC Voltage Measurement 999.9V dc
Absolute Maximum Resistance Measurement 2kΩ
Model Number ICMA6
Calibrated UKAS
Clamp Meter Type Current, Voltage
Best AC Current Accuracy ±1.9%+ 5 Digits
Best AC Voltage Accuracy ±1.5% + 3 Digits
Best DC Voltage Accuracy ±1% + 2 Digits
Height 200mm
Best Resistance Measurement Accuracy ±2% + 2 Digits
Width 48mm
Safety Category Voltage 600 V, 1000 V
Weight 375g
Battery Type IEC 6F22, NEDA 1604, 9V
Safety Category CAT II 1000 V, CAT III 600 V
Jaw Capacity Busbars 38 (Dia.)mm
Maximum Operating Temperature +50°C
Power Source Battery
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance
Minimum Operating Temperature -20°C
Battery Life 250 h
Safety Category Level CAT II, CAT III
Maximum Conductor Size 32 (Dia.)mm
Dimensions 83 x 48 x 200mm
Length 83mm
94 In stock for delivery within 2 working days
Price Each
£ 158.10
(exc. VAT)
£ 189.72
(inc. VAT)
Units
Per unit
1 +
£158.10
Not available for guaranteed pre 9am/10am delivery
