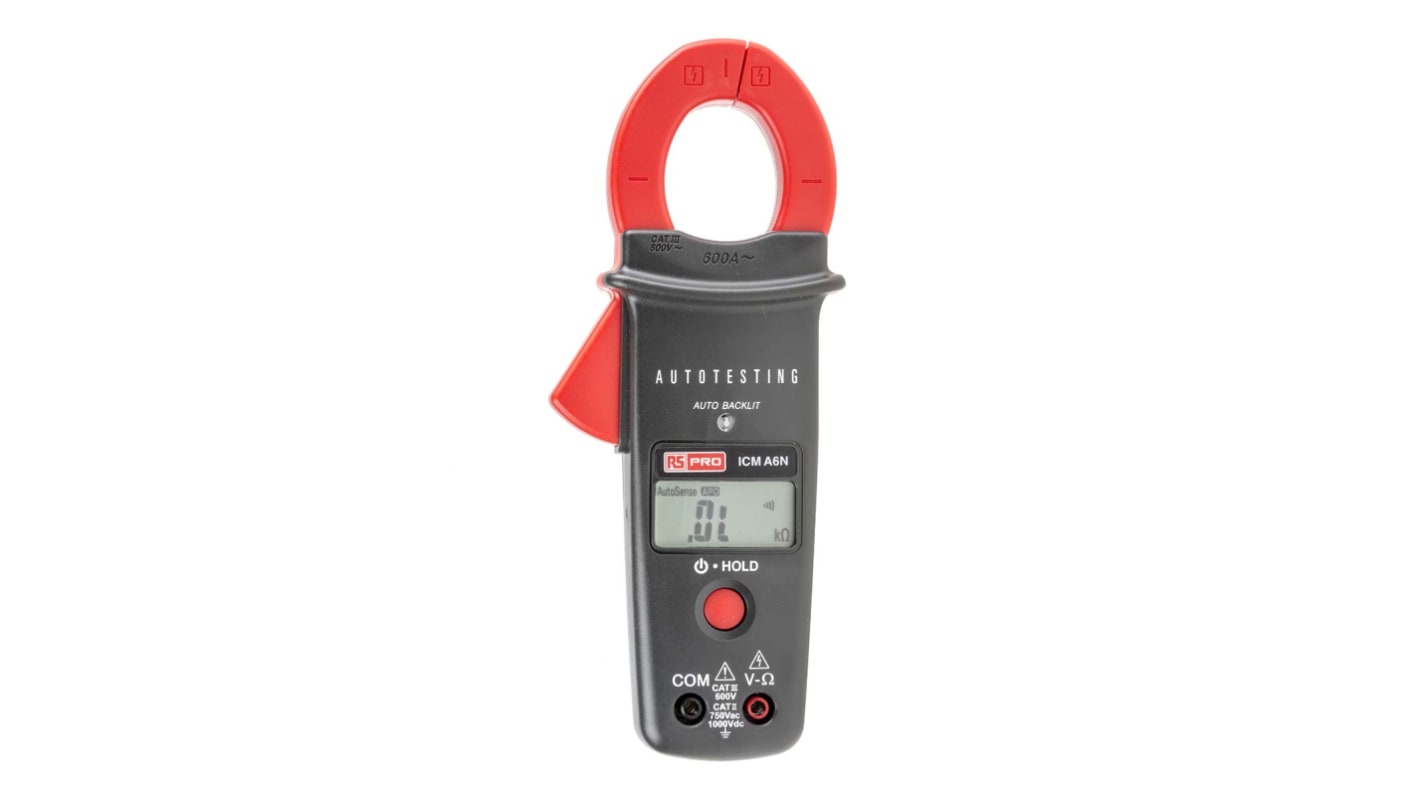

RS PRO ICMA6 Clamp Meter, Max Current 600A ac CAT II 1000 V, CAT III 600 V With RS Calibration
- RS Stock No.:
- 123-3496
- Brand:
- RS PRO
Subtotal (1 unit)*
£274.93
(exc. VAT)
£329.92
(inc. VAT)
FREE delivery for orders over £50.00
- 60 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 + | £274.93 |
*price indicative
- RS Stock No.:
- 123-3496
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Absolute Maximum AC Current Measurement | 600A ac | |
| Absolute Maximum AC Voltage Measurement | 750V ac | |
| Absolute Maximum DC Voltage Measurement | 999.9V dc | |
| Absolute Maximum Resistance Measurement | 2kΩ | |
| Model Number | ICMA6 | |
| Calibrated | RSCAL | |
| Clamp Meter Type | AC Current Clamp Meter | |
| Best AC Current Accuracy | ±1.9%+ 5 Digits | |
| Best AC Voltage Accuracy | ±1.5% + 3 Digits | |
| Best DC Voltage Accuracy | ±1% + 2 Digits | |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance | |
| Jaw Capacity Busbars | 38 (Dia.)mm | |
| Safety Category Level | CAT II, CAT III | |
| Weight | 375g | |
| Battery Life | 250 h | |
| Maximum Conductor Size | 32 (Dia.)mm | |
| Length | 83mm | |
| Width | 48mm | |
| Height | 200mm | |
| Minimum Operating Temperature | -20°C | |
| Safety Category | CAT II 1000 V, CAT III 600 V | |
| Power Source | Battery | |
| Dimensions | 83 x 48 x 200mm | |
| Battery Type | 9V, IEC 6F22, NEDA 1604 | |
| Safety Category Voltage | 600 V, 1000 V | |
| Maximum Operating Temperature | +50°C | |
| Best Resistance Measurement Accuracy | ±2% + 2 Digits | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Absolute Maximum AC Current Measurement 600A ac | ||
Absolute Maximum AC Voltage Measurement 750V ac | ||
Absolute Maximum DC Voltage Measurement 999.9V dc | ||
Absolute Maximum Resistance Measurement 2kΩ | ||
Model Number ICMA6 | ||
Calibrated RSCAL | ||
Clamp Meter Type AC Current Clamp Meter | ||
Best AC Current Accuracy ±1.9%+ 5 Digits | ||
Best AC Voltage Accuracy ±1.5% + 3 Digits | ||
Best DC Voltage Accuracy ±1% + 2 Digits | ||
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance | ||
Jaw Capacity Busbars 38 (Dia.)mm | ||
Safety Category Level CAT II, CAT III | ||
Weight 375g | ||
Battery Life 250 h | ||
Maximum Conductor Size 32 (Dia.)mm | ||
Length 83mm | ||
Width 48mm | ||
Height 200mm | ||
Minimum Operating Temperature -20°C | ||
Safety Category CAT II 1000 V, CAT III 600 V | ||
Power Source Battery | ||
Dimensions 83 x 48 x 200mm | ||
Battery Type 9V, IEC 6F22, NEDA 1604 | ||
Safety Category Voltage 600 V, 1000 V | ||
Maximum Operating Temperature +50°C | ||
Best Resistance Measurement Accuracy ±2% + 2 Digits | ||
- COO (Country of Origin):
- TW
RS Pro ICMA6N Clampmeter
Features and Benefits
Auto sensing on ACV, DCV, Ω, ACA
600 A ac measurement capability
750 V ac / 1000 V dc measurement range
2 kΩ resistance range
Continuity and Diode Test
32 mm conductor jaw capacity
Display hold
Auto-power off
Conforms to EN61010-1 (safety rating) CAT III 600 V, CAT II 1000 V
Supplied with
