RS PRO Clamp Meter, 1000A dc, Max Current 1000A ac CAT III 1000 V
- RS Stock No.:
- 123-3224
- Brand:
- RS PRO
Subtotal (1 unit)*
£215.05
(exc. VAT)
£258.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 37 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £215.05 |
*price indicative
- RS Stock No.:
- 123-3224
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Absolute Maximum AC Current Measurement | 1000A ac | |
| Absolute Maximum DC Current Measurement | 1000A dc | |
| Clamp Meter Type | AC/DC Clamp Meter | |
| Minimum Operating Temperature | 0°C | |
| Maximum Conductor Size | 51mm | |
| Battery Life | 66 h | |
| Safety Category Level | CAT III | |
| Safety Category | CAT III 1000 V | |
| Safety Category Voltage | 1000V | |
| Maximum Operating Temperature | +50°C | |
| Battery Type | 9V Alkaline | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Absolute Maximum AC Current Measurement 1000A ac | ||
Absolute Maximum DC Current Measurement 1000A dc | ||
Clamp Meter Type AC/DC Clamp Meter | ||
Minimum Operating Temperature 0°C | ||
Maximum Conductor Size 51mm | ||
Battery Life 66 h | ||
Safety Category Level CAT III | ||
Safety Category CAT III 1000 V | ||
Safety Category Voltage 1000V | ||
Maximum Operating Temperature +50°C | ||
Battery Type 9V Alkaline | ||
- COO (Country of Origin):
- TW

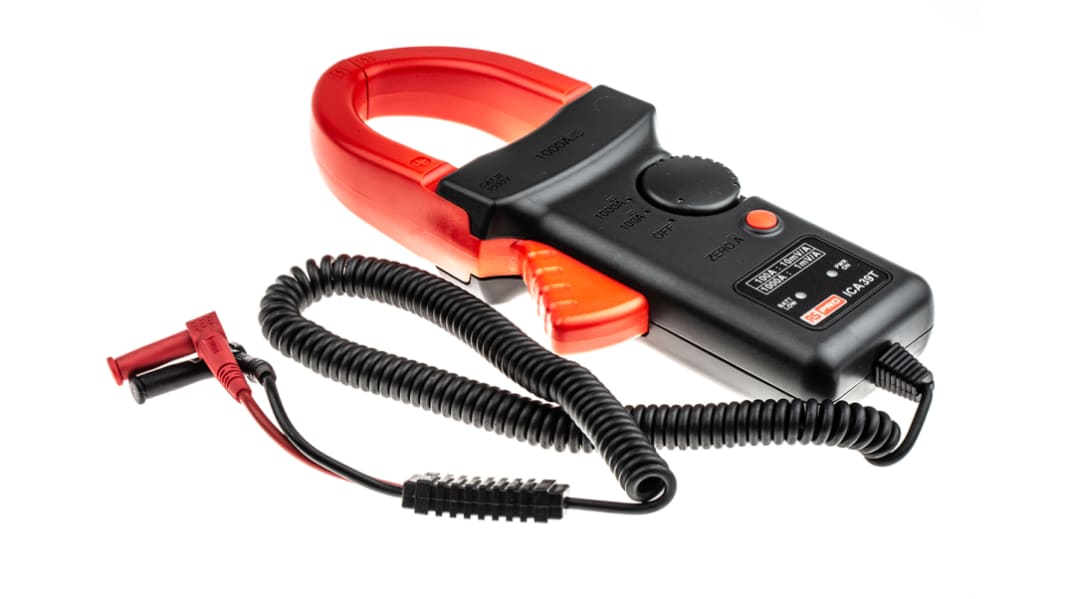

RS Pro ICA39T Current Clamp Adapter
ICA39T from the RS Pro range of current clamp adapters.
Feature and Benefits
1.9% basic D CA / A CA accuracy
Non-intrusive transducing
Up to 29 mm Diameter conductor
Shock Proof: 5 ft drop
Coiled cable output plugs
Ergonomically designed jaw and trigger
AC-DC 1000 A capability
Auto-zero key for DCA
Red LED - low battery indication
Green LED - power on indication
Insulated input jacks
Standard 9 V battery
Safety Standard: CAT IV 600 V / CAT III 1000 V
Type of Sensing: Hall effect
Non-intrusive transducing
Up to 29 mm Diameter conductor
Shock Proof: 5 ft drop
Coiled cable output plugs
Ergonomically designed jaw and trigger
AC-DC 1000 A capability
Auto-zero key for DCA
Red LED - low battery indication
Green LED - power on indication
Insulated input jacks
Standard 9 V battery
Safety Standard: CAT IV 600 V / CAT III 1000 V
Type of Sensing: Hall effect
Supplied with
Battery (installed), coiled cable output plugs, carrying case and user manual.
