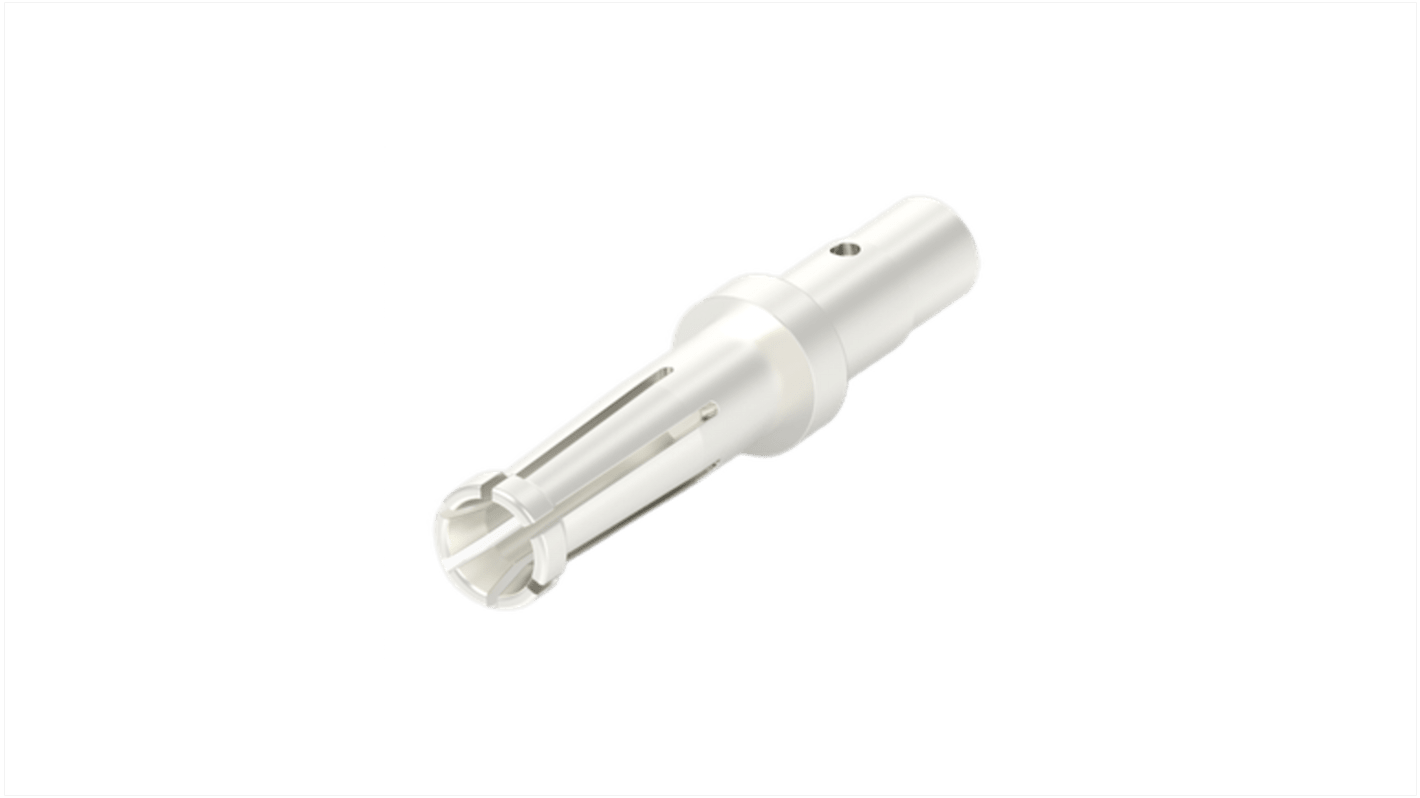

TE Connectivity Male to Female Crimp Crimp Socket Contact, Wire Size 8 AWG
- RS Stock No.:
- 260-4178
- Mfr. Part No.:
- 2390328-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£7.75
(exc. VAT)
£9.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.75 |
| 10 - 24 | £7.45 |
| 25 - 49 | £7.07 |
| 50 - 99 | £6.82 |
| 100 + | £6.52 |
*price indicative
- RS Stock No.:
- 260-4178
- Mfr. Part No.:
- 2390328-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Male to Female | |
| Wire Size | 8 AWG | |
| Termination Method | Crimp | |
| For Use With | Discrete Wire | |
| Contact Type | Socket | |
| Current Rating | 40A | |
| Contact Plating | Silver | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Male to Female | ||
Wire Size 8 AWG | ||
Termination Method Crimp | ||
For Use With Discrete Wire | ||
Contact Type Socket | ||
Current Rating 40A | ||
Contact Plating Silver | ||
Contact Material Brass | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- US
The TE Connectivity blind mating mobile charging connector contains power contact, socket, crimp which is intended for smaller mobile robots and autonomous vehicles typically used in warehouse environments. Autonomous mobile robots (AMR) are currently used mostly for material handling (picking, movement, storage, sorting) in the warehouse automation space. The charging connector is available in 2 and 3 power contact options with up to 8 signal contacts to ease installation and rework cycle times.
High mating cycle life
Modular solution that will support different configurations, data, sensing
First make last break power contact (3P only)
Floating panel mount design maximizes misalignment tolerance capability
UL recognized to UL 1977
Modular solution that will support different configurations, data, sensing
First make last break power contact (3P only)
Floating panel mount design maximizes misalignment tolerance capability
UL recognized to UL 1977
