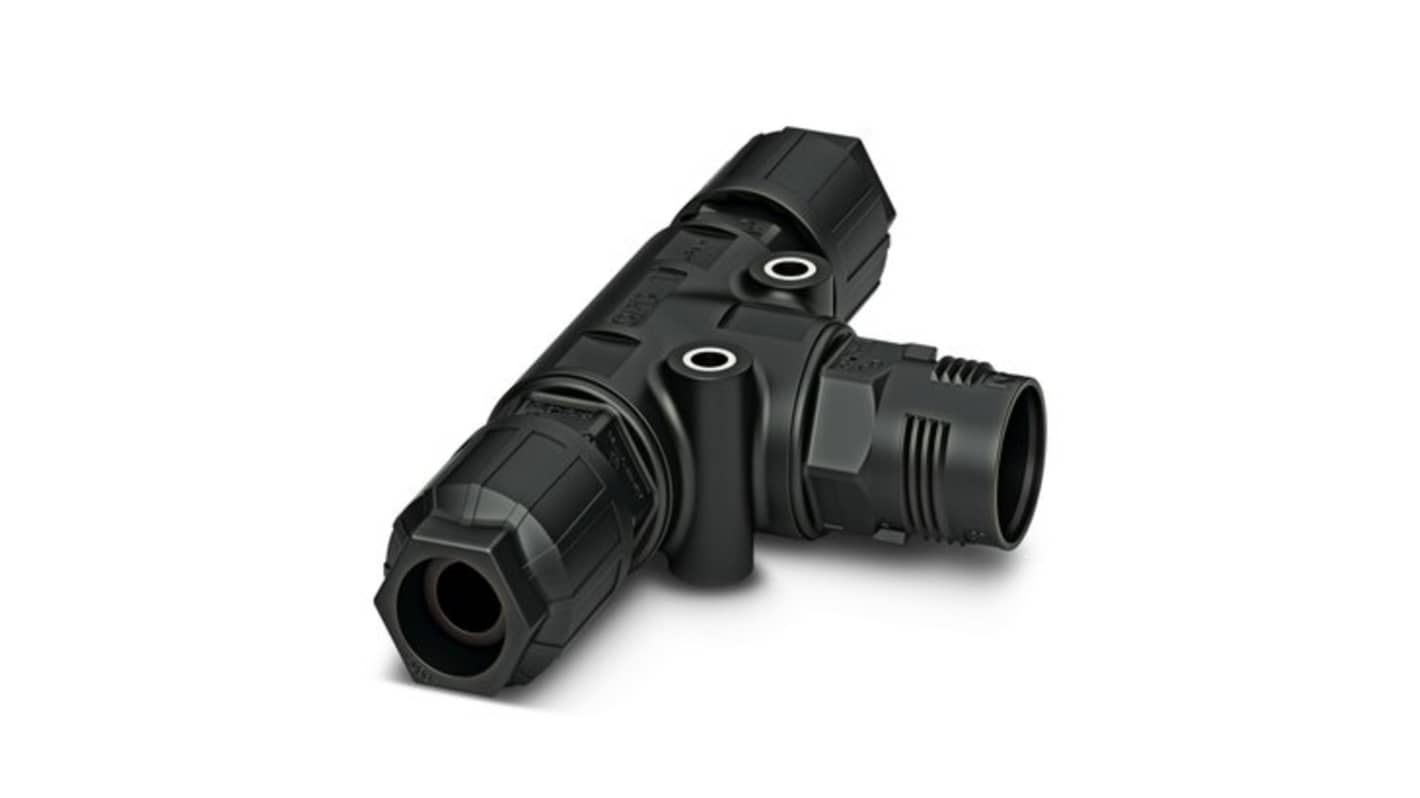

Phoenix Contact T Circular Connector Adapter 5 5
- RS Stock No.:
- 280-615
- Mfr. Part No.:
- 1414751
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£43.72
(exc. VAT)
£52.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.72 |
*price indicative
- RS Stock No.:
- 280-615
- Mfr. Part No.:
- 1414751
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Circular Connector Adapter | |
| Current | 17.5A | |
| Number of Ports A | 1 | |
| Number of Contacts A | 5 | |
| Number of Contacts B | 5 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| IP Rating | IP69K, IP68 | |
| Standards/Approvals | No | |
| Voltage | 690V | |
| Orientation | T | |
| Contact Material | Copper | |
| Length | 154.6mm | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Circular Connector Adapter | ||
Current 17.5A | ||
Number of Ports A 1 | ||
Number of Contacts A 5 | ||
Number of Contacts B 5 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
IP Rating IP69K, IP68 | ||
Standards/Approvals No | ||
Voltage 690V | ||
Orientation T | ||
Contact Material Copper | ||
Length 154.6mm | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- PL
The Phoenix Contact T distributor is a cutting-edge power distribution solution designed for versatility and efficiency in various applications. With its robust design, this product excels in challenging environments, ensuring reliable connections under demanding conditions. It features an innovative IDC connection method, enabling a swift installation process that can save time on-site.
Multiple cable outlet options to facilitate flexible wiring configurations
Compact dimensions make it easy to incorporate into smaller spaces
Mechanical coding prevents incompatible connections ensuring reliable operation
Constructed with high quality materials for long lasting performance
