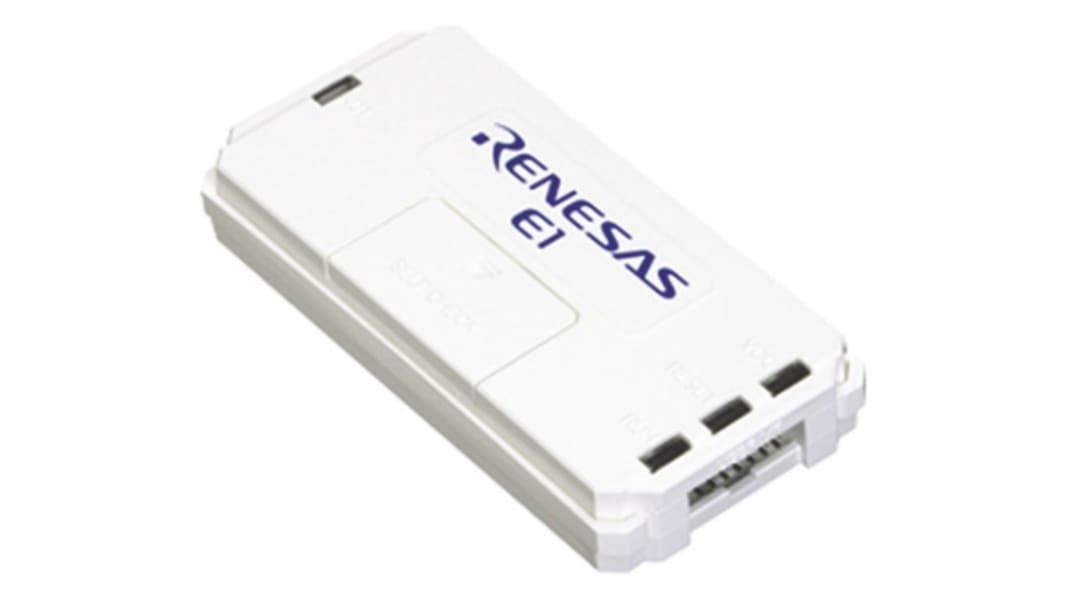

The Renesas E1 Emulator is an on-chip debugging emulator with built-in flash programmer. It is the perfect tool to help develop a system that is based around Renesas microcontrollers (MCUs). The E1 Emulator is designed for basic debugging of the main range of Renesas MCUs. On-board programming is also supported. A list of the compatible MCU series can be found below.
The E1 emulator sits between the PC (via USB cable) and the User’s system (via interface cable). There is also a range of products which allow you to extend the functionality of your E1 Emulator.

• Powerful debugger
• On-board programming supported
• Serial, JTAG and LPD connections supported
• Power supply: up to 200mA (3.3V or 5V)
• Performance measurement function
• Memory reference/change while running the program
• Real-time trace
• Hot plug-in function (Hot plug adapter is required)
• Dimensions: 109.4 x 53.2 x 18.6 mm

What’s included?
E1 Emulator unit
USB Cable
User's system I/F cable
Software (CD)

Which Renesas MCUs are compatible?
RX Series
RL78 Series
RH80 Series (not G4MH core)
V850 Series
78K Series
R8C Series
