Valsteam ADCA Flange Flange Disc Check Valve Check Valve DN15 to DN100, 40 bar
- RS Stock No.:
- 917-1934
- Mfr. Part No.:
- 445631
- Brand:
- Valsteam ADCA
Subtotal (1 unit)*
£76.44
(exc. VAT)
£91.73
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.44 |
*price indicative
- RS Stock No.:
- 917-1934
- Mfr. Part No.:
- 445631
- Brand:
- Valsteam ADCA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Valsteam ADCA | |
| Inlet Connection Type | Flange | |
| Product Type | Check Valve | |
| Outlet Connection Type | Flange | |
| Sub Type | Disc Check Valve | |
| Inlet Port Size | DN15 to DN100 | |
| Maximum Operating Pressure | 40 bar | |
| Outlet Port Size | DN15 to DN100 | |
| Maximum Operating Temperature | 180°C | |
| Standards/Approvals | ANSI, CE (PED-European Directive 97/23/EC), EN 1092 | |
| Select all | ||
|---|---|---|
Brand Valsteam ADCA | ||
Inlet Connection Type Flange | ||
Product Type Check Valve | ||
Outlet Connection Type Flange | ||
Sub Type Disc Check Valve | ||
Inlet Port Size DN15 to DN100 | ||
Maximum Operating Pressure 40 bar | ||
Outlet Port Size DN15 to DN100 | ||
Maximum Operating Temperature 180°C | ||
Standards/Approvals ANSI, CE (PED-European Directive 97/23/EC), EN 1092 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PT

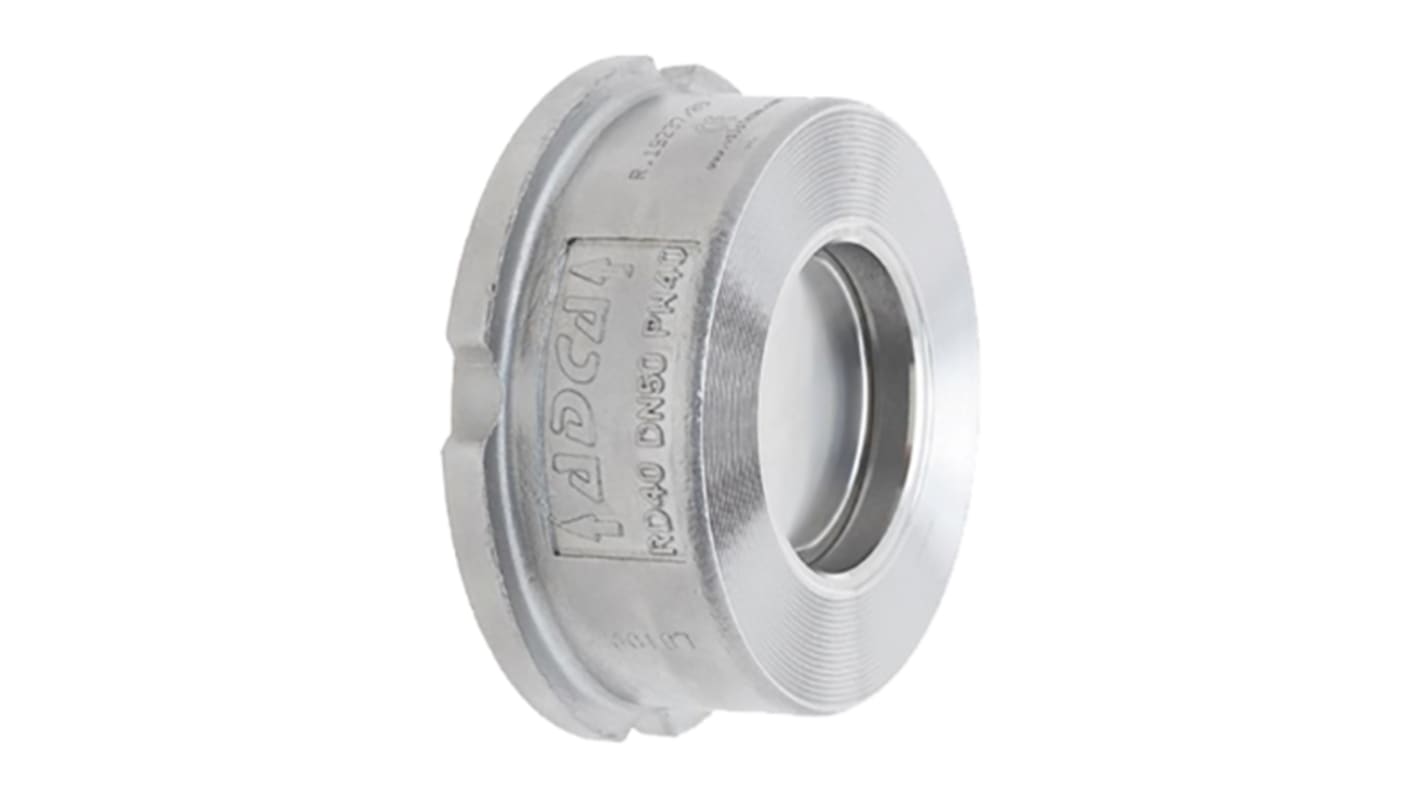

Sprung Disc Check Valve RD40
The 316 stainless steel sprung disc check valve is suitable for ANSI and EN flanges.
Features and Benefits
• Low pressure drop
• Simple and compact design
• Overall lengths according to DIN 3202 part 3-K4
• Horizontal or vertical installation
Materials
Body – CF8M/1.4408
Disc – AISI316/1.4401
Spring – AISI302/1.4300
Star – AISI316/1.4401
