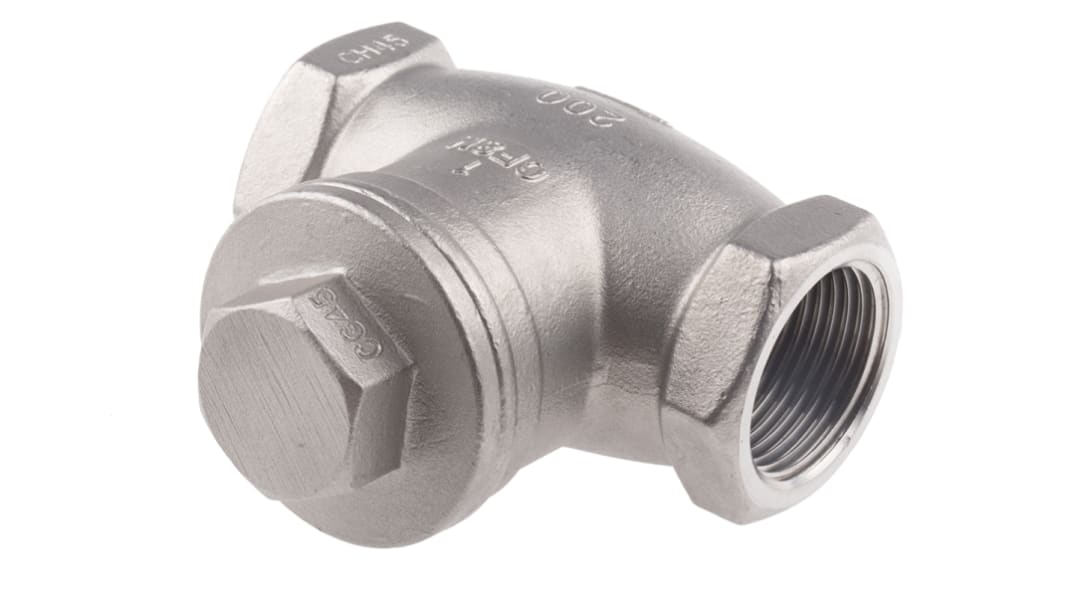

RS PRO Stainless Steel Threaded Threaded BSP Single Check Valve 3/4 in, 14 bar
- RS Stock No.:
- 499-2650
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£83.58
(exc. VAT)
£100.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 126 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £83.58 |
| 5 - 9 | £81.82 |
| 10 + | £79.23 |
*price indicative
- RS Stock No.:
- 499-2650
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Check Valve | |
| Inlet Connection Type | Threaded | |
| Outlet Connection Type | Threaded | |
| Sub Type | Single | |
| Inlet Port Size | 3/4 in | |
| Body Material | Stainless Steel | |
| Maximum Operating Pressure | 14 bar | |
| Outlet Port Size | 3/4 in | |
| Inlet Thread Standard | BSP | |
| Inlet Port Gender | Female | |
| Minimum Operating Temperature | -20°C | |
| Outlet Thread Standard | BSP | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 180°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Check Valve | ||
Inlet Connection Type Threaded | ||
Outlet Connection Type Threaded | ||
Sub Type Single | ||
Inlet Port Size 3/4 in | ||
Body Material Stainless Steel | ||
Maximum Operating Pressure 14 bar | ||
Outlet Port Size 3/4 in | ||
Inlet Thread Standard BSP | ||
Inlet Port Gender Female | ||
Minimum Operating Temperature -20°C | ||
Outlet Thread Standard BSP | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 180°C | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
RS PRO Stainless Steel Single Non Return Valve 1 in BSP
This RS PRO non-return valve keeps liquids flowing only in a predetermined direction within your system. The valve is sealed by an interior plate that's free to swing but pushes against a seal when the liquid isn't flowing in the right direction.
The flow direction is clearly labelled on the side of the valve. It has 1-inch threaded end connectors for simple fitting on the majority of fluid systems of a compatible size.
The valve has a durable stainless steel body that can withstand harsh industrial conditions. Its design is suitable for hydraulic systems of up to 14 bar or for water flow control applications.
