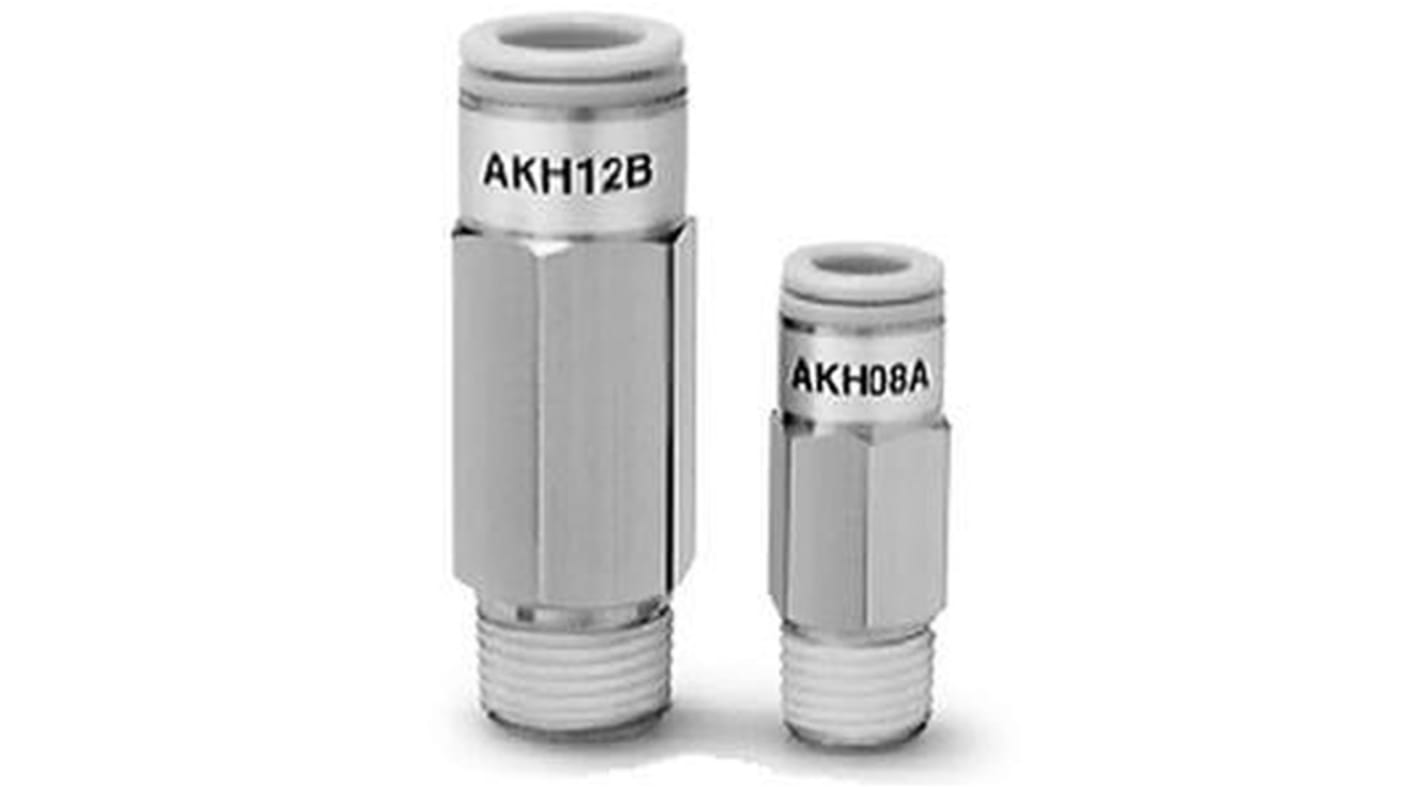

SMC Polybutylene Terephthalate R Check Valve Check Valve R(PT) 1/8, 1 Mpa
- RS Stock No.:
- 280-9097
- Mfr. Part No.:
- AKH06B-01S
- Brand:
- SMC
Subtotal (1 unit)*
£10.50
(exc. VAT)
£12.60
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £10.50 |
*price indicative
- RS Stock No.:
- 280-9097
- Mfr. Part No.:
- AKH06B-01S
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Sub Type | Check Valve | |
| Product Type | Check Valve | |
| Body Material | Polybutylene Terephthalate | |
| Inlet Port Size | R(PT) 1/8 | |
| Maximum Operating Pressure | 1 Mpa | |
| Outlet Port Size | 6 mm | |
| Inlet Thread Standard | R | |
| Inlet Port Gender | Male | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | JIS B 8370, RoHS, ISO 4414 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Sub Type Check Valve | ||
Product Type Check Valve | ||
Body Material Polybutylene Terephthalate | ||
Inlet Port Size R(PT) 1/8 | ||
Maximum Operating Pressure 1 Mpa | ||
Outlet Port Size 6 mm | ||
Inlet Thread Standard R | ||
Inlet Port Gender Male | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals JIS B 8370, RoHS, ISO 4414 | ||
The SMC check valves offer various configurations to provide design solutions based on operating conditions. The series is compact and lightweight with low cracking pressure.
Male connector type
Easily mounted onto equipment
