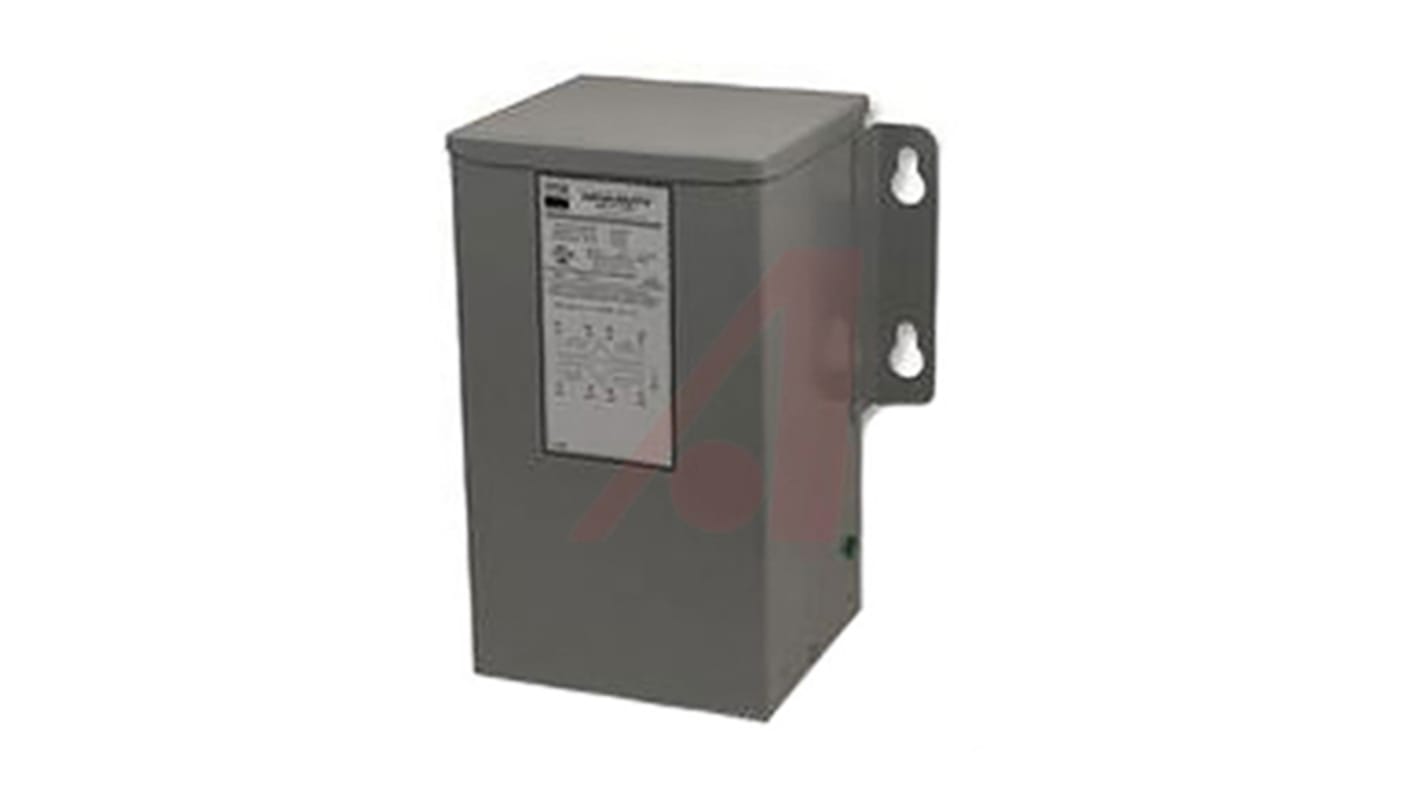

SolaHD 45 kVA Chassis Mount Transformer, 110 to 480 V, UL Listed, CE, CSA
- RS Stock No.:
- 890-8687
- Mfr. Part No.:
- HS1F2AS
- Brand:
- SolaHD
Subtotal (1 unit)*
£211.30
(exc. VAT)
£253.56
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £211.30 |
*price indicative
- RS Stock No.:
- 890-8687
- Mfr. Part No.:
- HS1F2AS
- Brand:
- SolaHD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SolaHD | |
| Product Type | Chassis Mount Transformer | |
| Primary Voltage | 120 to 600 V | |
| Secondary Voltage | 110 to 480 V | |
| Power | 45kVA | |
| Winding Type | Copper Winding | |
| Maximum Operating Temperature | 200°C | |
| Series | H | |
| Depth | 12in | |
| Width | 29 in | |
| Weight | 876lb | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | UL Listed, CE, CSA | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand SolaHD | ||
Product Type Chassis Mount Transformer | ||
Primary Voltage 120 to 600 V | ||
Secondary Voltage 110 to 480 V | ||
Power 45kVA | ||
Winding Type Copper Winding | ||
Maximum Operating Temperature 200°C | ||
Series H | ||
Depth 12in | ||
Width 29 in | ||
Weight 876lb | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals UL Listed, CE, CSA | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- US
SolaHD Hazardous Location Transformers
These heavy-duty encapsulated transformers have been designed for use in hazardous locations (Class 1, Division 2, Group A-D). They are also suited to harsh industrial environments. The encapsulation and rugged NEMA 3R enclosures help to provide protection from dust, moisture and also provide extra shock and vibration resistance. Available in both single and 3 phase options.
Rated for hazardous locations and harsh industrial environments
UL listed
Available in both single and 3 phase options
Single phase: 0.05 kVA to 0.250 kVA
Single Phase: (0.50 → 25 kVA), 3 Phase (3 → 45 kVA)
Conduit knockouts for side entry into roomy wiring compartment
Copper lead wire terminations
0.500 kVA → 10 kVA units are encapsulated with electrical grade silica sand and epoxy for industrial applications
