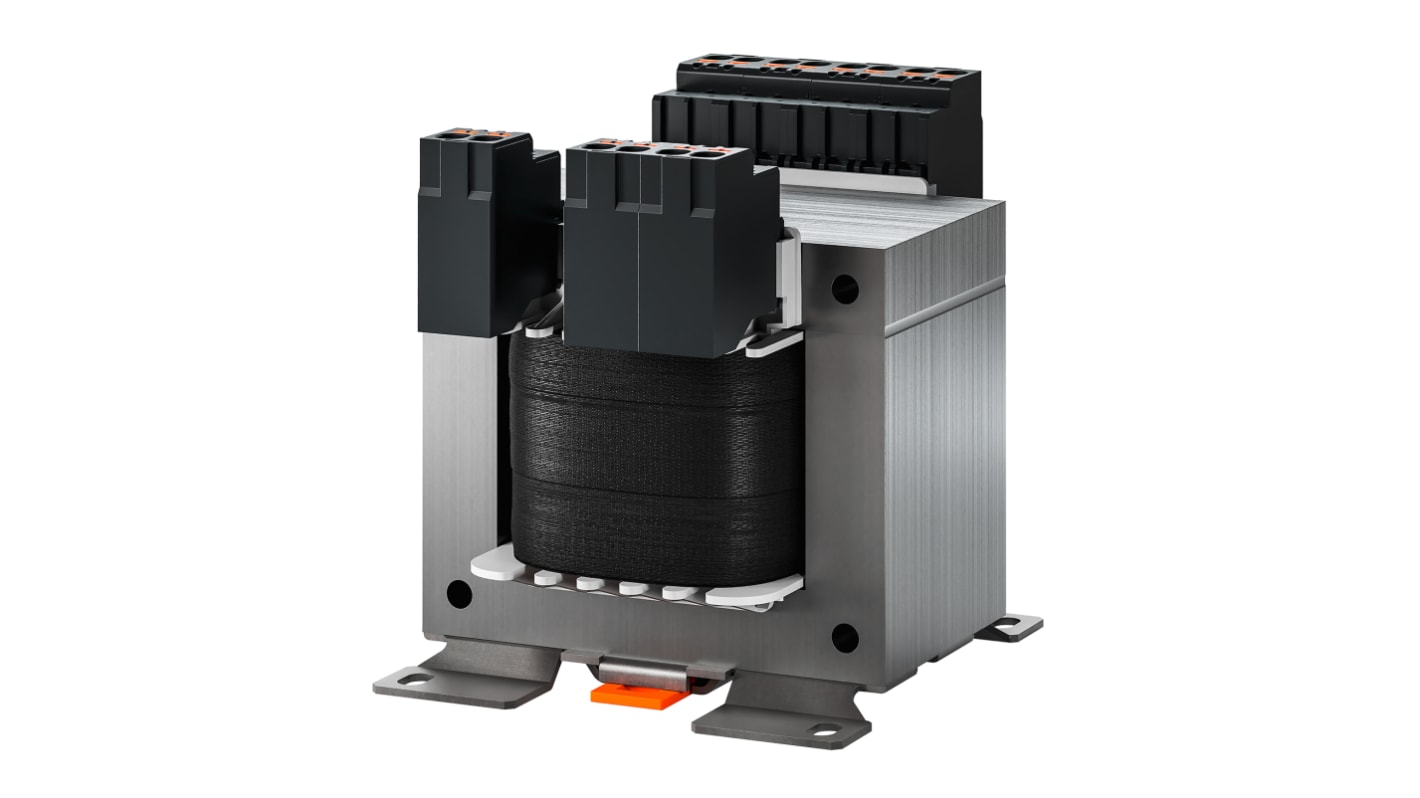

Block 2 Output 100 VA Chassis Mount Transformer, 2 x 115 V ac, UL, cUL, VDE
- RS Stock No.:
- 419-7423
- Distrelec Article No.:
- 156-01-030
- Mfr. Part No.:
- USTE100/2X115
- Brand:
- Block
Bulk discount available
Subtotal (1 unit)*
£86.94
(exc. VAT)
£104.33
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £86.94 |
| 25 + | £82.60 |
*price indicative
- RS Stock No.:
- 419-7423
- Distrelec Article No.:
- 156-01-030
- Mfr. Part No.:
- USTE100/2X115
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Product Type | Chassis Mount Transformer | |
| Primary Voltage | 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac | |
| Secondary Voltage | 2 x 115 V ac | |
| Number of Outputs | 2 | |
| Power | 100VA | |
| Maximum Operating Temperature | 40°C | |
| Depth | 85mm | |
| Minimum Operating Frequency | 50Hz | |
| Width | 84mm | |
| Weight | 2.1kg | |
| Length | 86mm | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | UL, cUL, VDE | |
| Select all | ||
|---|---|---|
Brand Block | ||
Product Type Chassis Mount Transformer | ||
Primary Voltage 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac | ||
Secondary Voltage 2 x 115 V ac | ||
Number of Outputs 2 | ||
Power 100VA | ||
Maximum Operating Temperature 40°C | ||
Depth 85mm | ||
Minimum Operating Frequency 50Hz | ||
Width 84mm | ||
Weight 2.1kg | ||
Length 86mm | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals UL, cUL, VDE | ||
- COO (Country of Origin):
- DE
Features
High performance for the volume and a compact design
Universal input voltages 208 to 600 Vac
Quick to cable up with the use of spring-loaded terminals
Simple mounting with a robust metal footplate with oval slots
Universal Input Control Transformer 208 to 600Vac
Universal input transformers are designed for worldwide usage and fulfill the requirements for control safety isolating and isolating transformers suitable for DIN Rail mounting (to 250VA) or footplate mounting (all types) and the use of cage clamp terminals makes installation an easy task
Input voltages 208V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 500V, 525V, 550V, 575V, 600V provide a large range of output current
Vacuum resin impregnation
Approvals
VDE, UL recognised, CUL
