Block 2 Output 500 VA Chassis Mount Transformer, 2 x 115 V ac, IEC 61558-2-2, VDE 0570 Part 2-4, CSA 22.2 No.66, VDE
- RS Stock No.:
- 361-8115
- Mfr. Part No.:
- STEU500/23
- Brand:
- Block

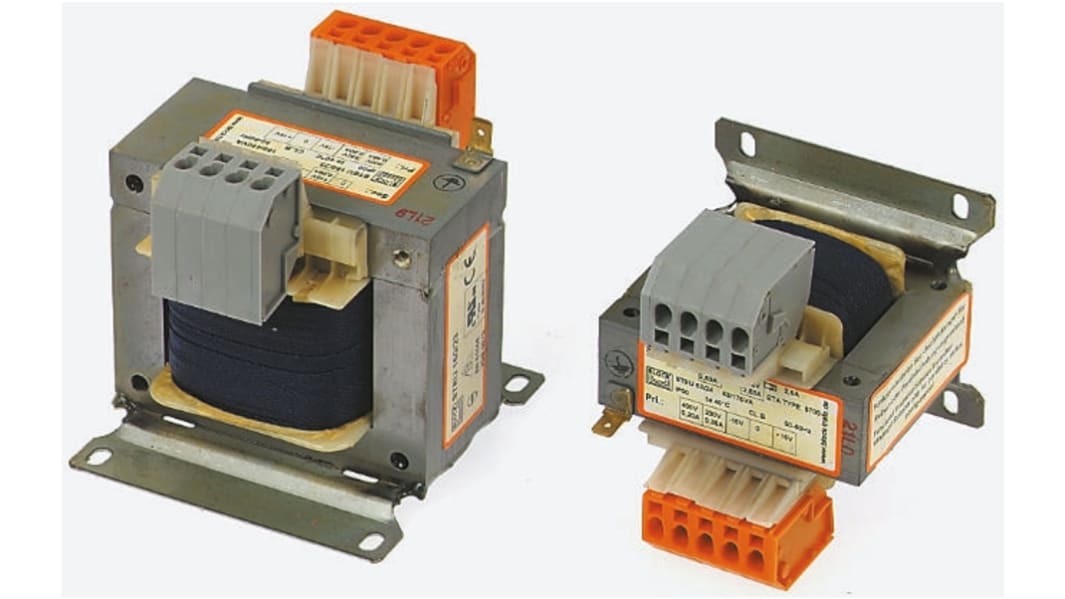

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£182.45
(exc. VAT)
£218.94
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 24 | £182.45 |
| 25 + | £169.86 |
*price indicative
- RS Stock No.:
- 361-8115
- Mfr. Part No.:
- STEU500/23
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Primary Voltage | 400 V ac, 230 V | |
| Product Type | Chassis Mount Transformer | |
| Secondary Voltage | 2 x 115 V ac | |
| Number of Outputs | 2 | |
| Power | 500VA | |
| Maximum Operating Temperature | 40°C | |
| Depth | 124mm | |
| Weight | 7.7kg | |
| Length | 120mm | |
| Width | 120 mm | |
| Minimum Operating Frequency | 50Hz | |
| Series | STEU 500/23 | |
| Standards/Approvals | IEC 61558-2-2, VDE 0570 Part 2-4, CSA 22.2 No.66, VDE 0570 Teil 2-2, UL 5085-1/-2, IEC 61558-2-4, EN 61558-2-2, EN 61558-2-4, DIN EN 61558-2-2, DIN EN 61558-2-4 | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Block | ||
Primary Voltage 400 V ac, 230 V | ||
Product Type Chassis Mount Transformer | ||
Secondary Voltage 2 x 115 V ac | ||
Number of Outputs 2 | ||
Power 500VA | ||
Maximum Operating Temperature 40°C | ||
Depth 124mm | ||
Weight 7.7kg | ||
Length 120mm | ||
Width 120 mm | ||
Minimum Operating Frequency 50Hz | ||
Series STEU 500/23 | ||
Standards/Approvals IEC 61558-2-2, VDE 0570 Part 2-4, CSA 22.2 No.66, VDE 0570 Teil 2-2, UL 5085-1/-2, IEC 61558-2-4, EN 61558-2-2, EN 61558-2-4, DIN EN 61558-2-2, DIN EN 61558-2-4 | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- DE
Safety Isolating Transformer
Safety isolating and isolating control transformers
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B
Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation
Approvals
UL Recognised Component for Canada & US
Standards
EN 61558, VDE0570
