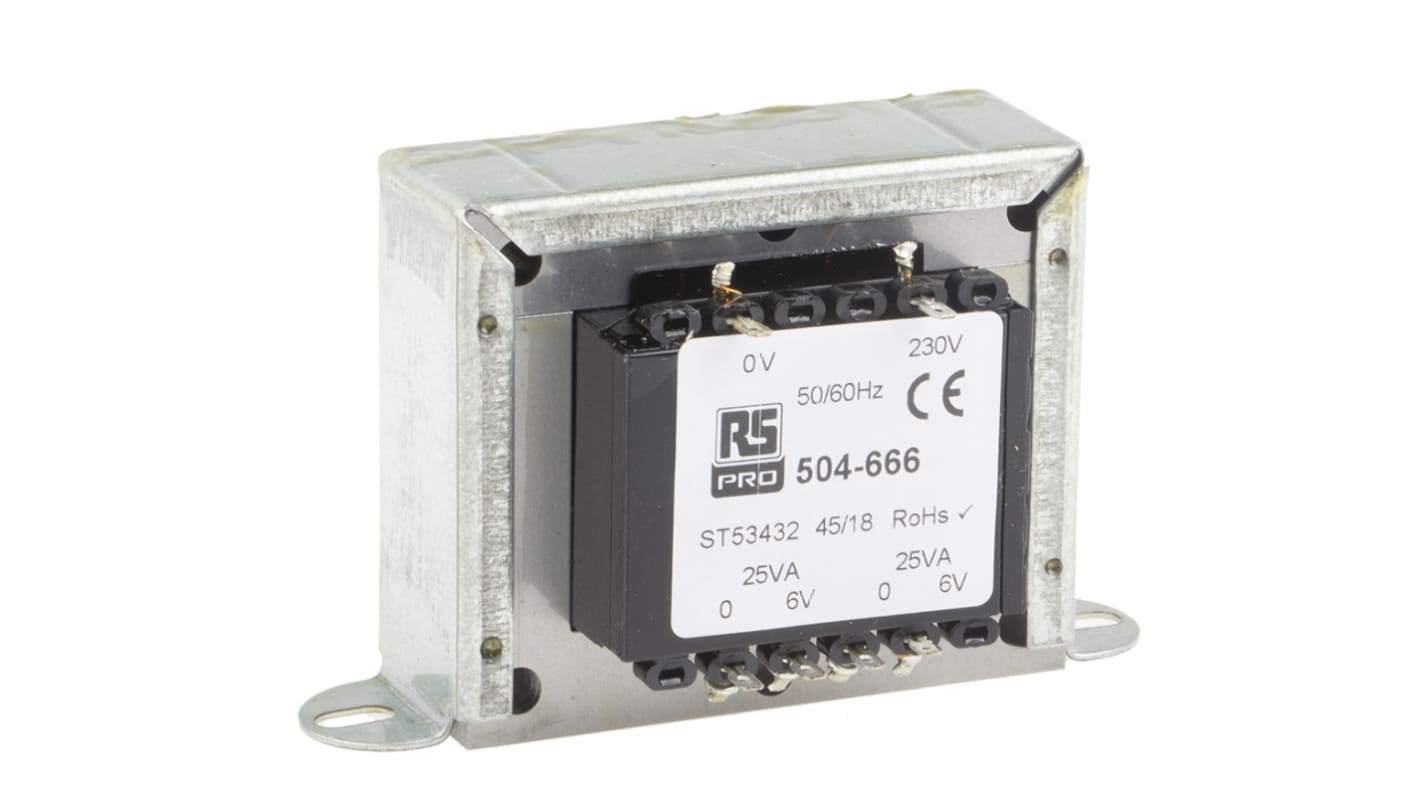

RS PRO 50VA 2 Output Chassis Mounting Transformer, 6V ac, IEC 61558-2-6
- RS Stock No.:
- 504-666
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£37.67
(exc. VAT)
£45.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 463 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £37.67 |
10 + | £35.37 |
*price indicative
- RS Stock No.:
- 504-666
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Primary Voltage Rating | 230V ac | |
Secondary Voltage Rating | 6V ac | |
Power Rating | 50VA | |
Number of Outputs | 2 | |
Mounting Type | Clamp Mount | |
Primary Winding Resistance | 44Ω | |
Efficiency | 84% | |
Length | 79mm | |
Width | 62mm | |
Depth | 65mm | |
Dimensions | 79 x 62 x 65mm | |
Fixing Hole Diameter | 4.7 x 9.5mm | |
Weight | 1kg | |
Minimum Operating Frequency | 50Hz | |
Standards Met | IEC 61558-2-6 | |
Maximum Operating Frequency | 60Hz | |
Minimum Temperature | -30°C | |
Maximum Temperature | (Ambient) 70°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 6V ac | ||
Power Rating 50VA | ||
Number of Outputs 2 | ||
Mounting Type Clamp Mount | ||
Primary Winding Resistance 44Ω | ||
Efficiency 84% | ||
Length 79mm | ||
Width 62mm | ||
Depth 65mm | ||
Dimensions 79 x 62 x 65mm | ||
Fixing Hole Diameter 4.7 x 9.5mm | ||
Weight 1kg | ||
Minimum Operating Frequency 50Hz | ||
Standards Met IEC 61558-2-6 | ||
Maximum Operating Frequency 60Hz | ||
Minimum Temperature -30°C | ||
Maximum Temperature (Ambient) 70°C | ||
RS PRO 50 VA 2 Output Chassis Mounting Transformer, 6 V AC
This RS PRO chassis-mounting transformer steps offers a reliable way to step voltages up or down. You can connect the two independent secondary windings in series or in parallel, so it gives you a broad range of output current and voltage options.
The transformer has a two-hole fixing that makes for easy installation with wrap-over clamps. The unit's fully shrouded bobbins give added protection from electrical interference, and the coils are fully varnish-impregnated for improved dielectric strength.
The unit's permanent label includes a detailed product specification for safe and easy installation. The transformer is fully electrical and flash-tested and complies with BS3535 and EN 60742 standards, meaning it's guarded against high voltages. Isolating transformers like this can be found in medical devices and test equipment.
The transformer has a two-hole fixing that makes for easy installation with wrap-over clamps. The unit's fully shrouded bobbins give added protection from electrical interference, and the coils are fully varnish-impregnated for improved dielectric strength.
The unit's permanent label includes a detailed product specification for safe and easy installation. The transformer is fully electrical and flash-tested and complies with BS3535 and EN 60742 standards, meaning it's guarded against high voltages. Isolating transformers like this can be found in medical devices and test equipment.
Features and Benefits
- Dimensions of 79 (length) x 62 (width) x 65 mm (depth)
- Fixing hole diameter of 4.7 x 9.5 mm
- Operating frequency range of 50 to 60 Hz
- Primary voltage rating of 230 V AC
- Secondary voltage rating of 6 V AC
- Clamp mounting
- Double output
- Power rating of 50 VA
- Weight of 1 kg
