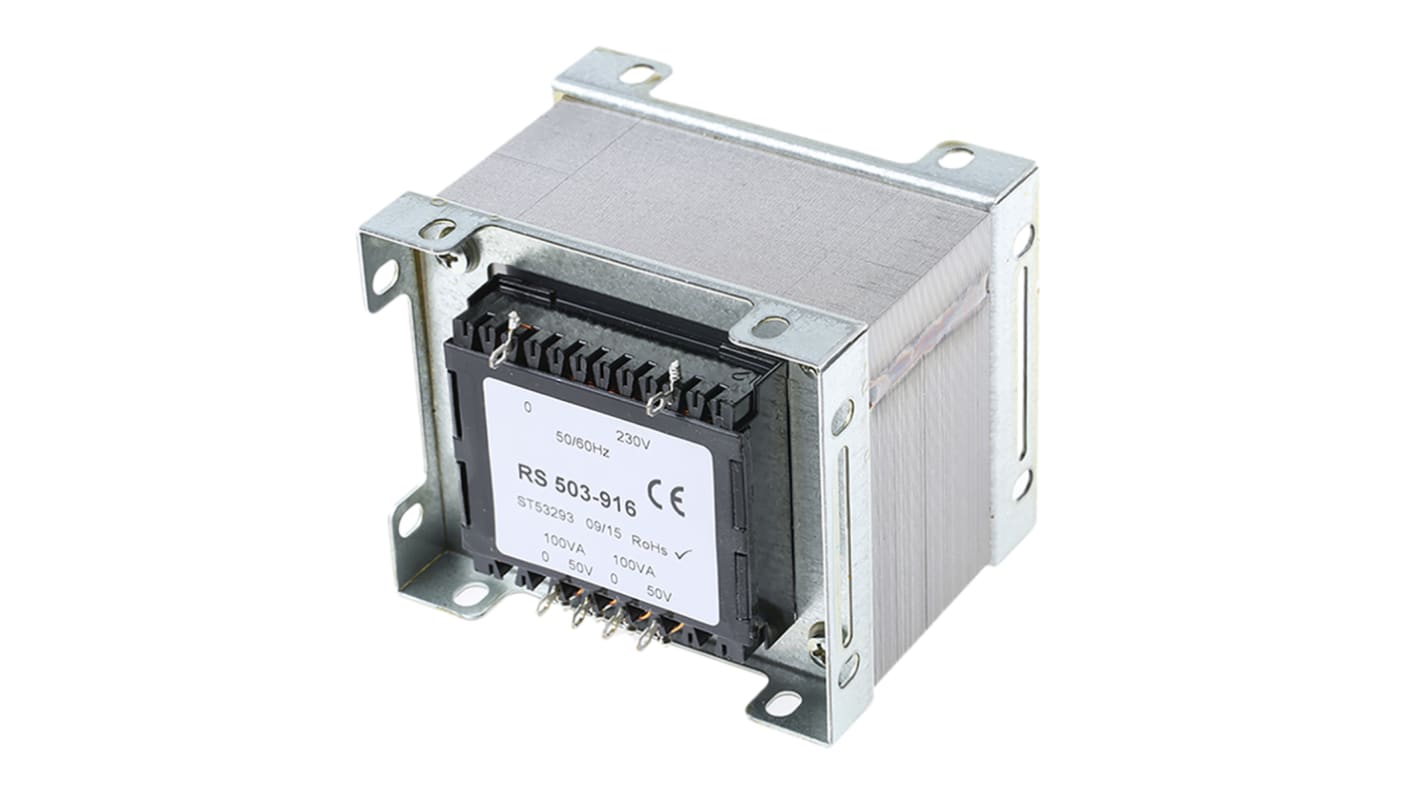

RS PRO 200VA 2 Output Chassis Mounting Transformer, 50V ac, IEC 61558-2-4
- RS Stock No.:
- 503-916
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£83.85
(exc. VAT)
£100.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £83.85 |
| 25 + | £71.85 |
*price indicative
- RS Stock No.:
- 503-916
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage Rating | 230V ac | |
| Secondary Voltage Rating | 50V ac | |
| Power Rating | 200VA | |
| Number of Outputs | 2 | |
| Mounting Type | Chassis | |
| Primary Winding Resistance | 7.2Ω | |
| Length | 100mm | |
| Efficiency | 90% | |
| Width | 92mm | |
| Depth | 82mm | |
| Dimensions | 100 x 92 x 82mm | |
| Fixing Hole Diameter | 5.5 x 8.5mm | |
| Weight | 2.8kg | |
| Minimum Operating Frequency | 50Hz | |
| Standards Met | IEC 61558-2-4 | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Temperature | (Ambient) 70°C | |
| Minimum Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 50V ac | ||
Power Rating 200VA | ||
Number of Outputs 2 | ||
Mounting Type Chassis | ||
Primary Winding Resistance 7.2Ω | ||
Length 100mm | ||
Efficiency 90% | ||
Width 92mm | ||
Depth 82mm | ||
Dimensions 100 x 92 x 82mm | ||
Fixing Hole Diameter 5.5 x 8.5mm | ||
Weight 2.8kg | ||
Minimum Operating Frequency 50Hz | ||
Standards Met IEC 61558-2-4 | ||
Maximum Operating Frequency 60Hz | ||
Maximum Temperature (Ambient) 70°C | ||
Minimum Temperature -30°C | ||
RS PRO 200 VA 2 Output Chassis Mounting Transformer, 50 V AC
The RS PRO 200 VA two output chassis mounting transformer is a flexible tool for converting voltage levels. The unit comes with two independent secondary windings that you can connect either in series or in parallel to give a wide range of output voltage and current options. Chassis mounting transformers are commonly used in electromagnetic, electronic and electrical control applications.
The fully shrouded bobbins and complete varnish impregnation make this model stable and durable. Its tag terminations are ready for soldering and the unit comes with multiple frame-fixing holes to make chassis mounting easy.
As part of the RS PRO range, this product has been tested by leading engineers and meets the BS3535 and EN 60 742 standards for electrical safety. You'll often find chassis mounting transformers in relays, pumps and heating elements.
The fully shrouded bobbins and complete varnish impregnation make this model stable and durable. Its tag terminations are ready for soldering and the unit comes with multiple frame-fixing holes to make chassis mounting easy.
As part of the RS PRO range, this product has been tested by leading engineers and meets the BS3535 and EN 60 742 standards for electrical safety. You'll often find chassis mounting transformers in relays, pumps and heating elements.
Features and Benefits
• Two outputs
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 50 V AC
• Power rating of 200 VA
• Length of 100 mm
• Width of 92 mm
• Depth of 82 mm
• Fixing hole diameter of 5.5 x 8.5 mm
• Weight of 2.8 kg
• Operating frequency of 50-60 Hz
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 50 V AC
• Power rating of 200 VA
• Length of 100 mm
• Width of 92 mm
• Depth of 82 mm
• Fixing hole diameter of 5.5 x 8.5 mm
• Weight of 2.8 kg
• Operating frequency of 50-60 Hz
• Complies with RoHS (Restriction of Hazardous Substances) standards
Standards
BS3535; EN 60 742
