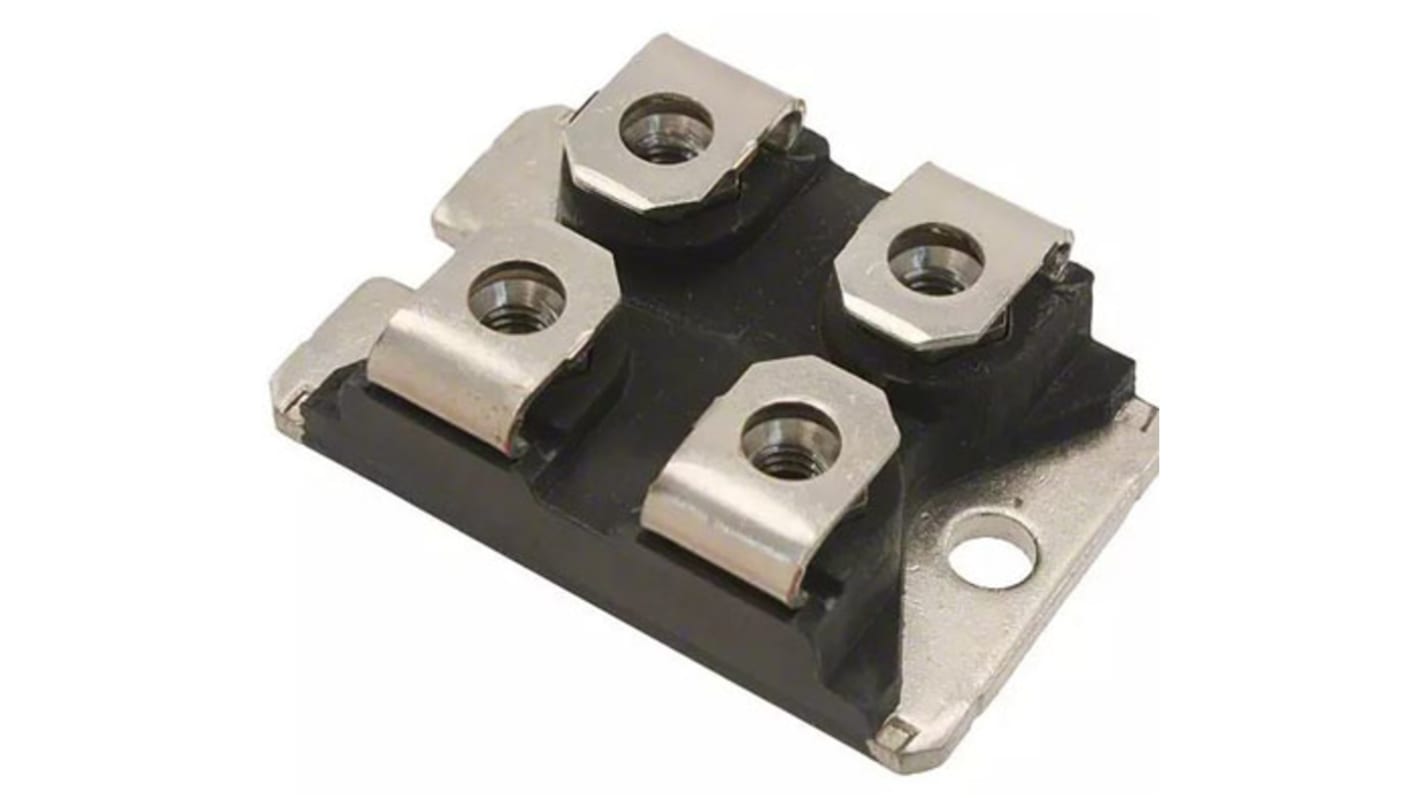

Ohmite, 25mΩ 100W Thick Film Chassis Mount Resistor TGHGCR0250FE ±1%
- RS Stock No.:
- 893-3371
- Mfr. Part No.:
- TGHGCR0250FE
- Brand:
- Ohmite
Subtotal (1 unit)*
£47.17
(exc. VAT)
£56.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £47.17 |
*price indicative
- RS Stock No.:
- 893-3371
- Mfr. Part No.:
- TGHGCR0250FE
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ohmite | |
Resistance | 25mΩ | |
Power Rating | 100W | |
Series | TGH | |
Package/Case | Planar | |
Tolerance | ±1% | |
Technology | Thick Film | |
Termination Style | Screw | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +155°C | |
Maximum Temperature Coefficient | +500 ppm/°C, +60ppm/°C | |
Dimensions | 38.1 x 24.9 x 12mm | |
Overall Width | 24.9mm | |
Overall Height | 12mm | |
Overall Length | 38.1mm | |
Select all | ||
---|---|---|
Brand Ohmite | ||
Resistance 25mΩ | ||
Power Rating 100W | ||
Series TGH | ||
Package/Case Planar | ||
Tolerance ±1% | ||
Technology Thick Film | ||
Termination Style Screw | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +155°C | ||
Maximum Temperature Coefficient +500 ppm/°C, +60ppm/°C | ||
Dimensions 38.1 x 24.9 x 12mm | ||
Overall Width 24.9mm | ||
Overall Height 12mm | ||
Overall Length 38.1mm | ||
Ohmite TGHG Series Current Sense Resistors
Ohmite TGHG Series precision current sense resistors use state of the art technology to provide highly reliable, non-inductive performance. This resistor is ideal for many current monitoring and control applications.
Features & Benefits:
Resistance values beginning at 0.5mΩ
Non Inductive
Four terminal Kelvin connection
SOT 227 Package
Four terminals to isolate measurement path from current flow path
Accuracy in a high power package
Non Inductive
Four terminal Kelvin connection
SOT 227 Package
Four terminals to isolate measurement path from current flow path
Accuracy in a high power package
Non-Inductive - Surface Mount Package
