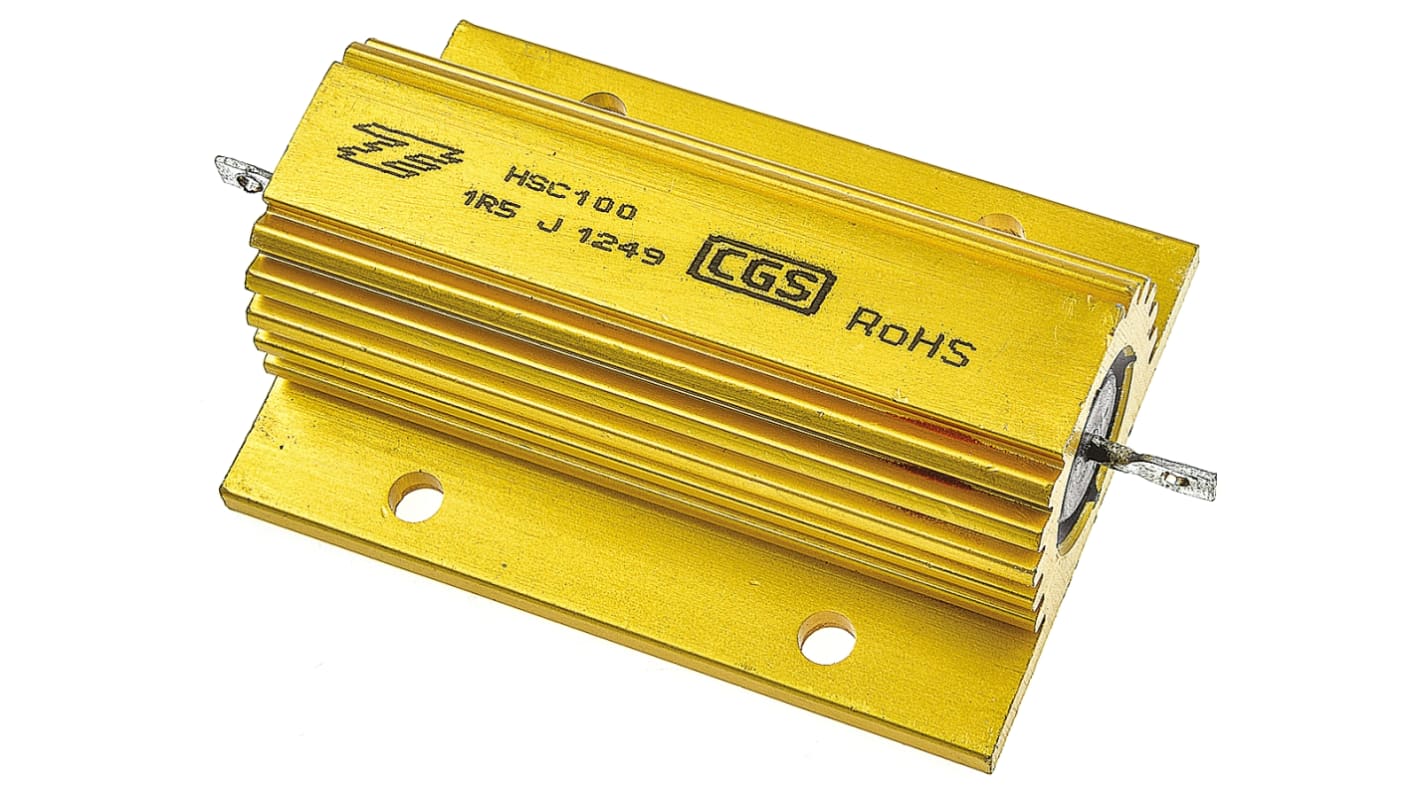

TE Connectivity HSC1001R5J, 1.5 Ω 100 W Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 720-5372
- Mfr. Part No.:
- HSC1001R5J
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£11.95
(exc. VAT)
£14.34
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £11.95 |
| 10 - 24 | £11.10 |
| 25 - 49 | £10.15 |
| 50 - 99 | £9.08 |
| 100 + | £8.24 |
*price indicative
- RS Stock No.:
- 720-5372
- Mfr. Part No.:
- HSC1001R5J
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 1.5Ω | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 100W | |
| Series | HSC100 | |
| Packaging | Tray | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | ±50 ppm/°C | |
| Automotive Standard | No | |
| Technology | Wirewound | |
| Termination Style | Solder Lug | |
| Overall Length | 87.5mm | |
| Maximum Operating Temperature | 250°C | |
| Overall Width | 47.5mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 26mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 1.5Ω | ||
Product Type Chassis Mount Resistor | ||
Power Rating 100W | ||
Series HSC100 | ||
Packaging Tray | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient ±50 ppm/°C | ||
Automotive Standard No | ||
Technology Wirewound | ||
Termination Style Solder Lug | ||
Overall Length 87.5mm | ||
Maximum Operating Temperature 250°C | ||
Overall Width 47.5mm | ||
Standards/Approvals RoHS | ||
Overall Height 26mm | ||
100W Aluminium housed wirewound resistor, HSA Series
Versatile and reliable aluminium housed fixed high power resistor with a wirewound element. Applications for this resistor include:-
Braking resistor
Balancing resistor
Capacitor charging & discharging
Crowbar
Filter
Electrical Machinery general use
