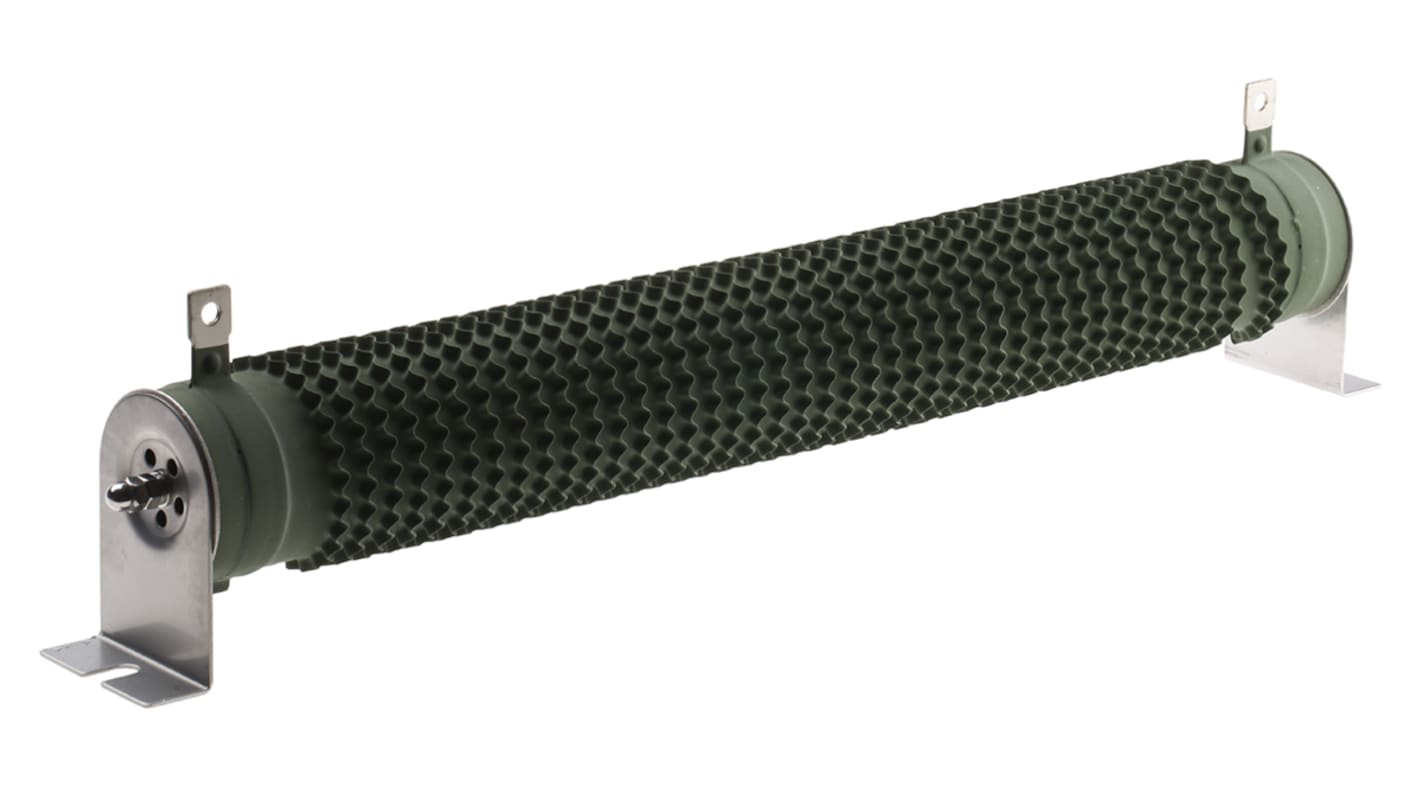

TE Connectivity TE2000B2R2J, 2.2 Ω 2 kW Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 701-5850
- Mfr. Part No.:
- TE2000B2R2J
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£102.39
(exc. VAT)
£122.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 10 unit(s) shipping from 22 July 2026
- Plus 10 unit(s) shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £102.39 |
| 5 - 9 | £97.27 |
| 10 - 19 | £93.17 |
| 20 - 49 | £90.10 |
| 50 + | £87.03 |
*price indicative
- RS Stock No.:
- 701-5850
- Mfr. Part No.:
- TE2000B2R2J
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 2.2Ω | |
| Power Rating | 2kW | |
| Series | TE | |
| Package/Case | Tubular | |
| Packaging | Box | |
| Tolerance | ±5 % | |
| Temperature Coefficient | +440 ppm/°C | |
| Technology | Wirewound | |
| Automotive Standard | No | |
| Termination Style | Solder Lug | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 560mm | |
| Maximum Operating Temperature | 255°C | |
| Standards/Approvals | No | |
| Overall Width | 60mm | |
| Overall Height | 119mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Chassis Mount Resistor | ||
Resistance 2.2Ω | ||
Power Rating 2kW | ||
Series TE | ||
Package/Case Tubular | ||
Packaging Box | ||
Tolerance ±5 % | ||
Temperature Coefficient +440 ppm/°C | ||
Technology Wirewound | ||
Automotive Standard No | ||
Termination Style Solder Lug | ||
Minimum Operating Temperature -25°C | ||
Overall Length 560mm | ||
Maximum Operating Temperature 255°C | ||
Standards/Approvals No | ||
Overall Width 60mm | ||
Overall Height 119mm | ||
High Power Wire Wound Resistor TE Series 2000W
Mullite Coated and high Power Rating
Corrugated Ribbon Element for Rapid Cooling
3x Overload for 5 Seconds
Applications include: Large Electrical and Production Machinery; Load Test Simulation; Motor Start/Stop Cycles; Dynamic Braking and Equipment Discharge
