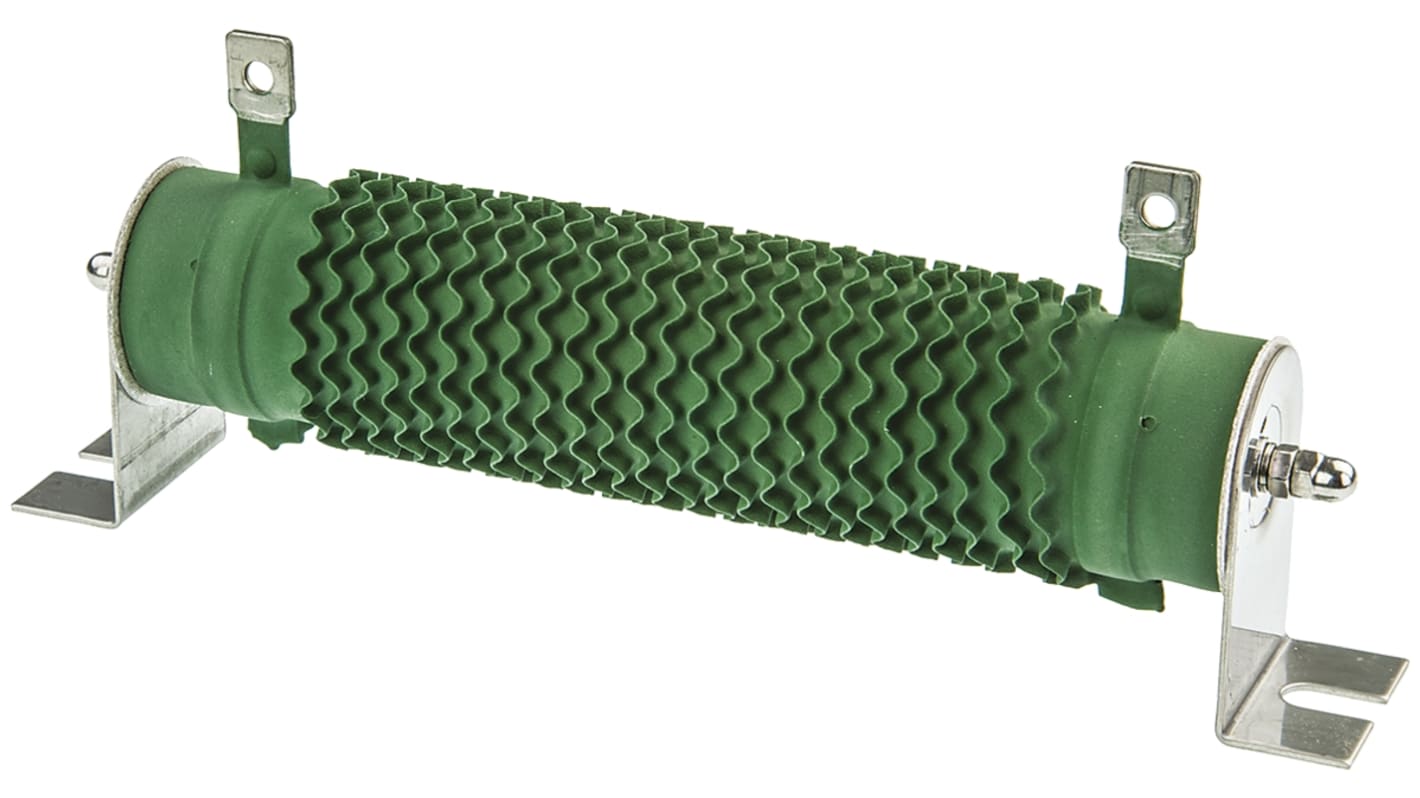

TE Connectivity, 1Ω 200W Wire Wound Chassis Mount Resistor TE200B1R0J ±5%

RS Stock No.:: 701-5692
Mfr. Part No.:: TE200B1R0J
Brand:: TE Connectivity

TE Connectivity, 1Ω 200W Wire Wound Chassis Mount Resistor TE200B1R0J ±5%

31 In stock - FREE next working day delivery available

6 available from Europe for delivery within 2 working day(s).

Price Each

£26.97

(exc. VAT)

£32.36

(inc. VAT)

Units	Per unit
1 - 4	£26.97
5 - 9	£25.62
10 - 19	£24.54
20 - 49	£23.73
50 +	£22.92

RS Stock No.:: 701-5692
Mfr. Part No.:: TE200B1R0J
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

Product Details

High Power Wire Wound Resistor TE Series 200W

The TE Series of Panel mount wire-wound fixed resistors from TE Connectivity provides a high-power resistive solution for railway applications. These resistors feature flameproof construction, are mullite coated ceramic core resistors which feature a corrugated ribbon element for rapid cooling. Designed ideally for heavy-duty machinery, electrical equipment or where stability and reliability are needed.

Features and Benefits

- Up to 2500W Power Rating

- Mullite Coated

- Flameproof Construction

- 3 x overload for 5 secs

- Corrugated ribbon element for rapid cooling

Applications

- Large electrical and production machinery

- Motor Control

- Dynamic braking

- Load test simulation

- Equipment Discharge

Specifications

Attribute	Value
Resistance	1Ω
Power Rating	200W
Series	TE
Package/Case	Tubular
Tolerance	±5%
Technology	Wire Wound
Termination Style	Solder Lug
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+255°C
Minimum Temperature Coefficient	-440ppm/°C
Maximum Temperature Coefficient	+440ppm/°C
Overall Height	81mm
Overall Diameter	40mm
Overall Length	195mm
