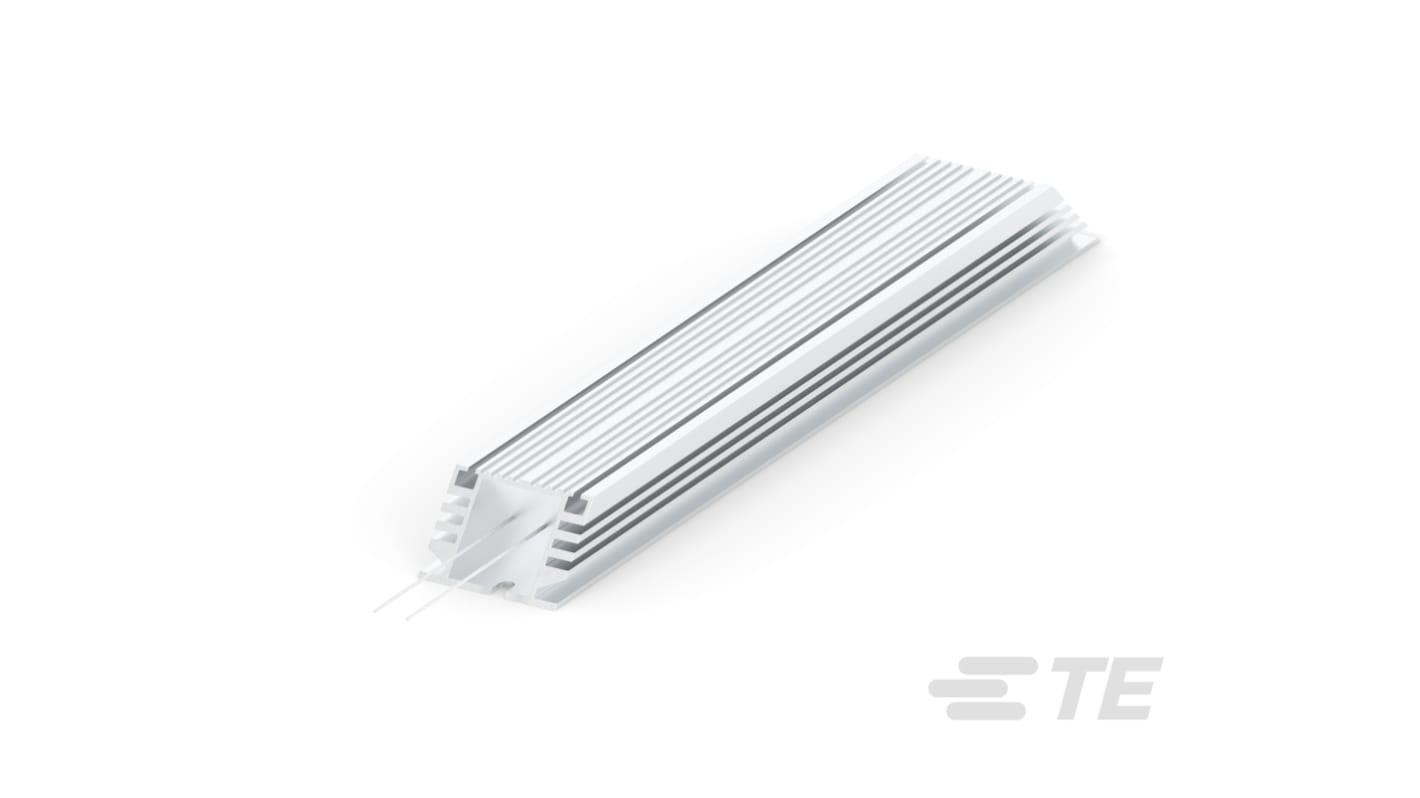

TE Connectivity CJH1500J15RJ, 15 Ω 1.5 kW Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 264-6632
- Mfr. Part No.:
- CJH1500J15RJ
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£128.12
(exc. VAT)
£153.74
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £128.12 |
| 5 - 9 | £104.54 |
| 10 - 19 | £99.17 |
| 20 + | £96.60 |
*price indicative
- RS Stock No.:
- 264-6632
- Mfr. Part No.:
- CJH1500J15RJ
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 15Ω | |
| Power Rating | 1.5kW | |
| Series | CJH | |
| Package/Case | Aluminium | |
| Packaging | Box | |
| Tolerance | ±5 % | |
| Temperature Coefficient | ±200 ppm/°C | |
| Automotive Standard | No | |
| Technology | Wirewound | |
| Termination Style | Flying Leads | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 495mm | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | UL | |
| Overall Width | 67mm | |
| Overall Height | 38mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Chassis Mount Resistor | ||
Resistance 15Ω | ||
Power Rating 1.5kW | ||
Series CJH | ||
Package/Case Aluminium | ||
Packaging Box | ||
Tolerance ±5 % | ||
Temperature Coefficient ±200 ppm/°C | ||
Automotive Standard No | ||
Technology Wirewound | ||
Termination Style Flying Leads | ||
Minimum Operating Temperature -25°C | ||
Overall Length 495mm | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals UL | ||
Overall Width 67mm | ||
Overall Height 38mm | ||
The TE Connectivity CJH Series resistor is a economical and compact aluminium housed resistor with good electrical stability and reliability. They are suited to a range of electrical circuits including power supplies, inverters and servo systems. With very good durability and mineral filled construction they are particularly good for braking and other pulse applications.
Vibration resistant
Good durability and mineral filled construction
