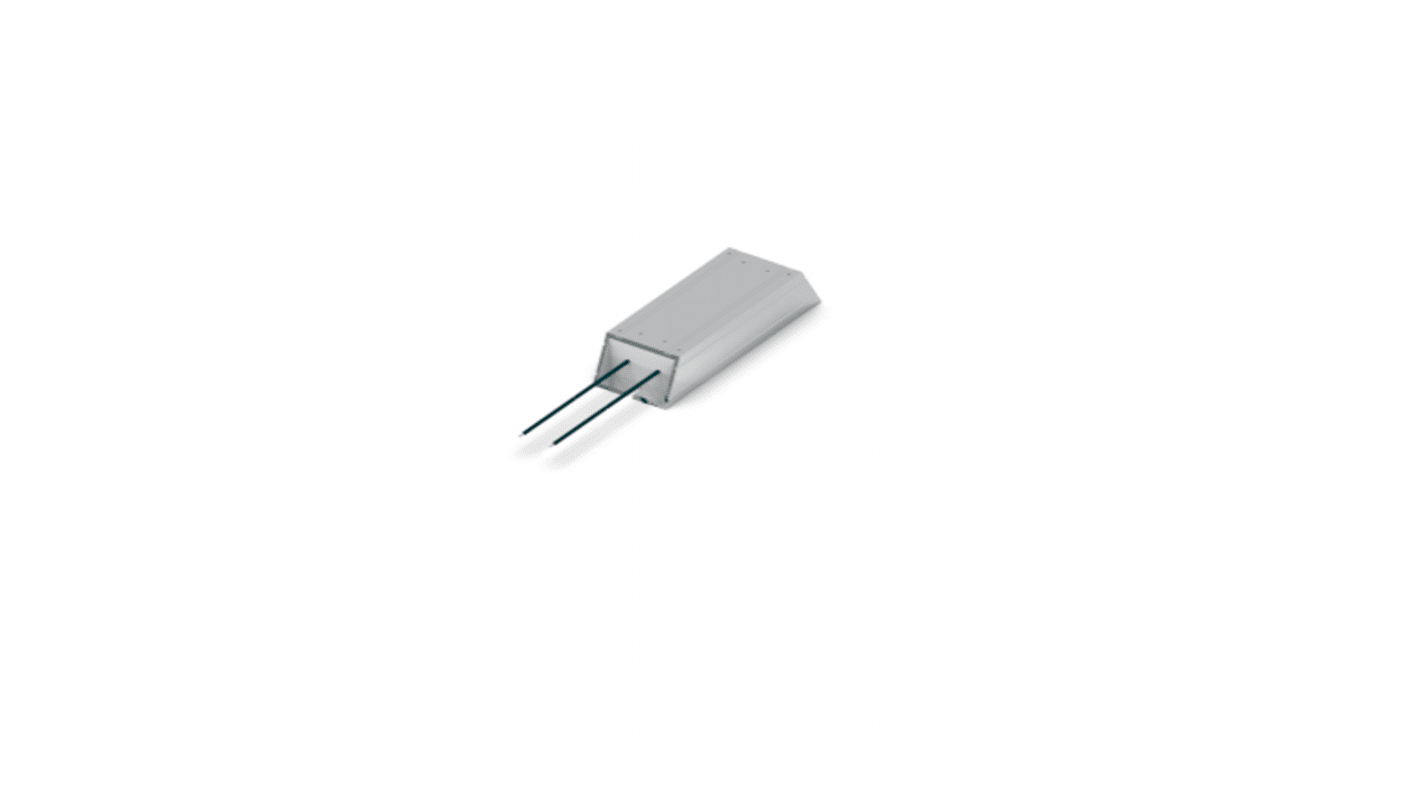

TE Connectivity HCH335J33RJ, 33 Ω 500 W Wirewound Wirewound Panel Mount Resistor 5 %
- RS Stock No.:
- 237-2361
- Mfr. Part No.:
- HCH335J33RJ
- Brand:
- TE Connectivity
Subtotal (1 box of 10 units)*
£889.51
(exc. VAT)
£1,067.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £88.951 | £889.51 |
*price indicative
- RS Stock No.:
- 237-2361
- Mfr. Part No.:
- HCH335J33RJ
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Wirewound Panel Mount Resistor | |
| Resistance | 33Ω | |
| Power Rating | 500W | |
| Series | HCH | |
| Packaging | Box | |
| Package/Case | Aluminium | |
| Temperature Coefficient | ±200 ppm/°C | |
| Tolerance | 5 % | |
| Automotive Standard | No | |
| Technology | Wirewound | |
| Termination Style | Wire | |
| Overall Length | 335mm | |
| Pin Count | 2 | |
| Standards/Approvals | RoHS | |
| Overall Height | 31mm | |
| Overall Width | 60mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Wirewound Panel Mount Resistor | ||
Resistance 33Ω | ||
Power Rating 500W | ||
Series HCH | ||
Packaging Box | ||
Package/Case Aluminium | ||
Temperature Coefficient ±200 ppm/°C | ||
Tolerance 5 % | ||
Automotive Standard No | ||
Technology Wirewound | ||
Termination Style Wire | ||
Overall Length 335mm | ||
Pin Count 2 | ||
Standards/Approvals RoHS | ||
Overall Height 31mm | ||
Overall Width 60mm | ||
- COO (Country of Origin):
- IN
The TE Connectivity HCH series wire wound power chassis mount resistor. It is designed and tested to absorb high power overloads they are ideally suited to braking applications. It has resistance of 33 ohm.
High power overload capability
IP54 ingress protection
PTFE insulated
Flying Leads for flexibility of connection
