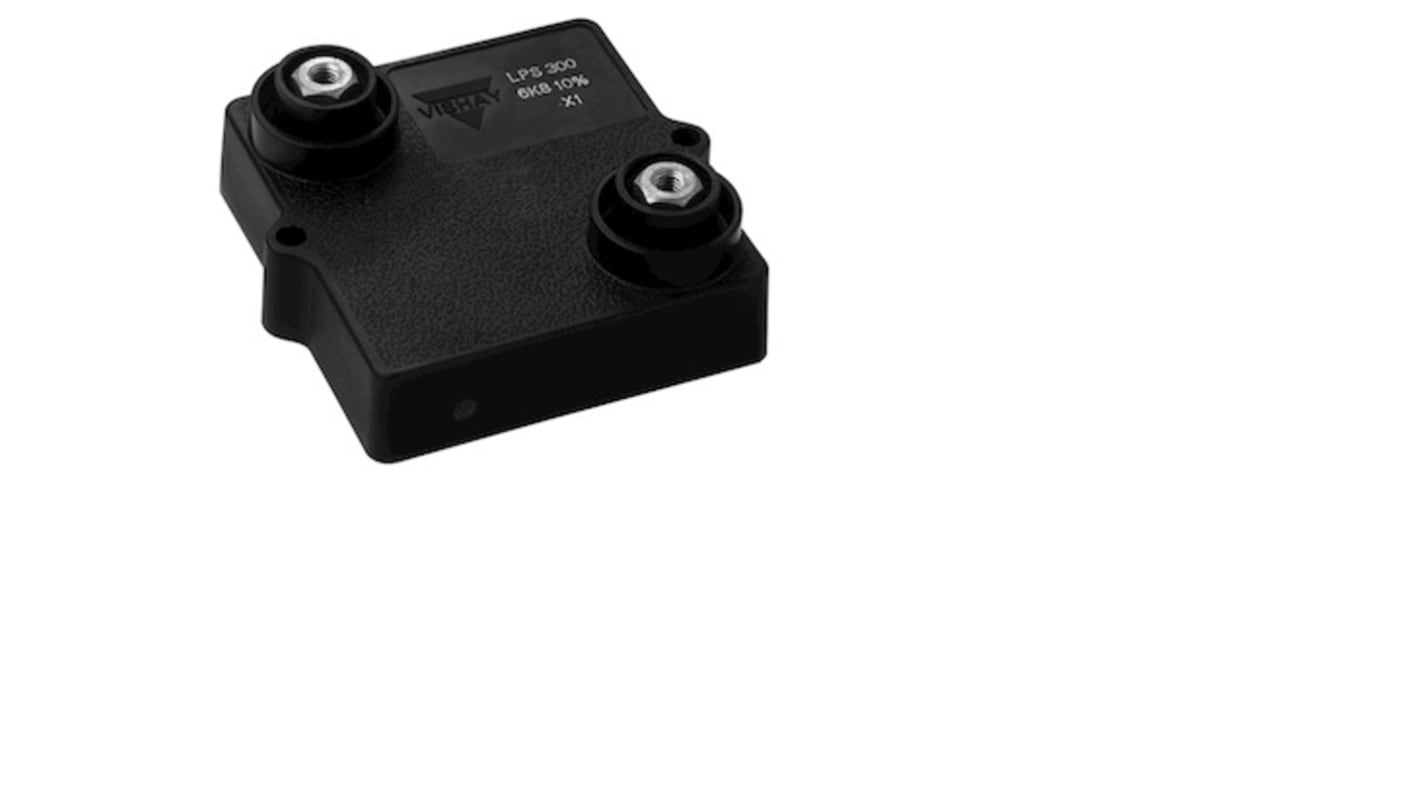

Vishay, 1kΩ 300W Thick Film Chassis Mount Resistor LPSA300H1000JB ± 5%
- RS Stock No.:
- 212-1295
- Mfr. Part No.:
- LPSA300H1000JB
- Brand:
- Vishay
Available to back order for despatch 24/05/2024
Added
Price Each (In a Box of 15)
£49.784
(exc. VAT)
£59.741
(inc. VAT)
| Units | Per unit | Per Box* |
| 15 - 15 | £49.784 | £746.76 |
| 30 + | £45.303 | £679.545 |
| *price indicative | ||
- RS Stock No.:
- 212-1295
- Mfr. Part No.:
- LPSA300H1000JB
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
The Vishay Power Resistor for Mounting onto a Heatsink Thick Film Technology Compliant with requirement #26 of NF-EN45545-2. High power 300 W at 85 °C bottom case temperature. Wide resistance range: 0.3 O to 900 kO E24 series
Non inductive
Easy mounting
Low thermal radiation of the case
Easy mounting
Low thermal radiation of the case
Specifications
Attribute | Value |
|---|---|
| Resistance | 1kΩ |
| Power Rating | 300W |
| Series | LPS 300 |
| Package/Case | Box |
| Tolerance | ± 5% |
| Technology | Thick Film |
| Termination Style | Screw |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +120°C |
| Minimum Temperature Coefficient | ±150ppm/°C |
| Maximum Temperature Coefficient | ±500ppm/°C |
| Dimensions | 60 x 57 x 25.2mm |
| Overall Length | 60mm |
| Overall Height | 25.2mm |
