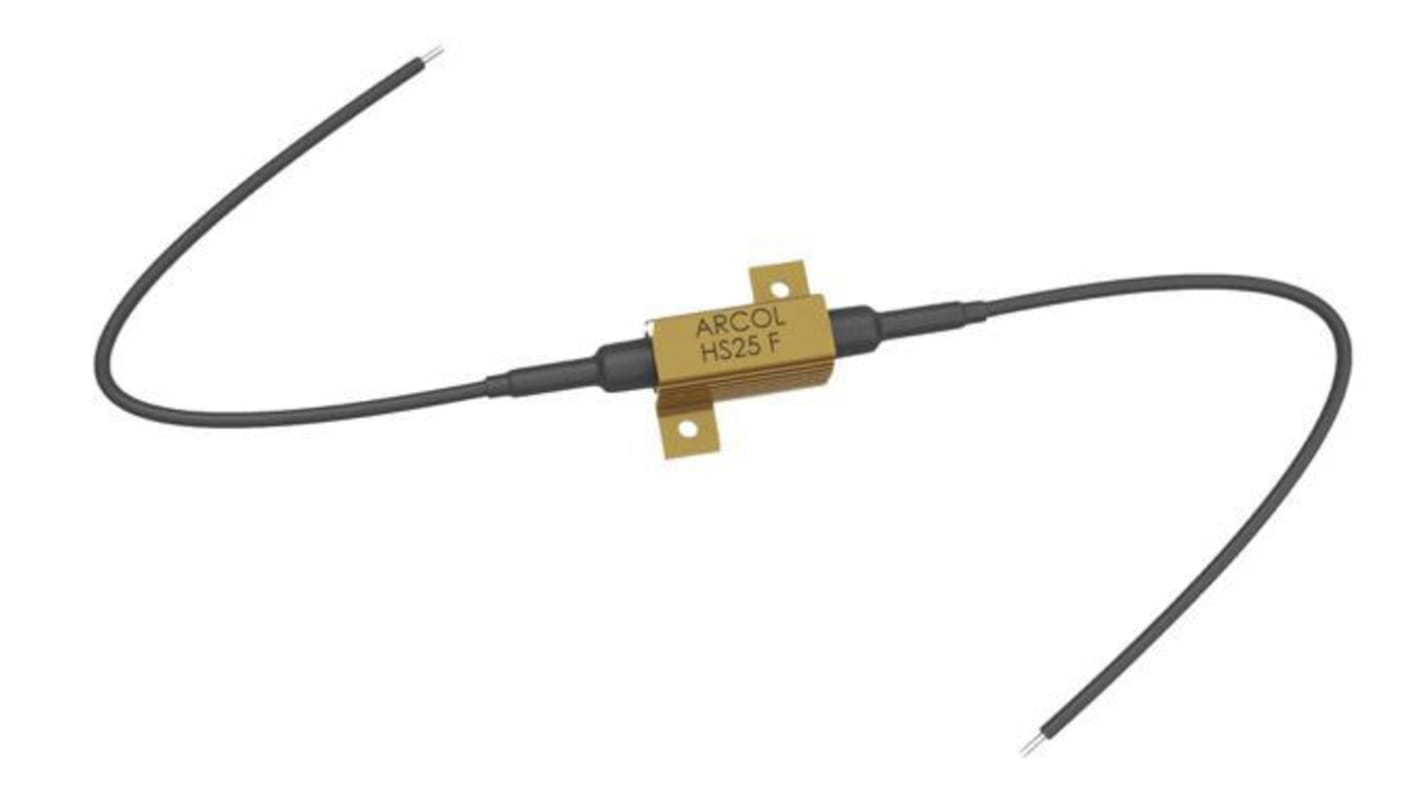

Arcol, 10Ω 25W Aluminium Chassis Mount Resistor HS25F 10R F ±1%
- RS Stock No.:
- 185-9332
- Mfr. Part No.:
- HS25F 10R F
- Brand:
- Arcol
Bulk discount available
Subtotal (1 pack of 5 units)*
£43.15
(exc. VAT)
£51.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 165 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £8.63 | £43.15 |
| 25 - 45 | £8.404 | £42.02 |
| 50 - 95 | £8.18 | £40.90 |
| 100 + | £7.982 | £39.91 |
*price indicative
- RS Stock No.:
- 185-9332
- Mfr. Part No.:
- HS25F 10R F
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 10Ω | |
| Power Rating | 25W | |
| Series | HS25F | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±1% | |
| Technology | Aluminium | |
| Termination Style | Wire Lead | |
| Maximum Operating Temperature | +200°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 27.3 x 14.2 x 14.8mm | |
| Overall Length | 27.3mm | |
| Overall Height | 14.8mm | |
| Overall Width | 14.2mm | |
Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 10Ω | ||
Power Rating 25W | ||
Series HS25F | ||
Package/Case Aluminium Housed | ||
Tolerance ±1% | ||
Technology Aluminium | ||
Termination Style Wire Lead | ||
Maximum Operating Temperature +200°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 27.3 x 14.2 x 14.8mm | ||
Overall Length 27.3mm | ||
Overall Height 14.8mm | ||
Overall Width 14.2mm | ||
- COO (Country of Origin):
- GB
Leaded version of ARCOL’s aluminium housed resistor, comes with factory fitted cable terminations for ease of assembly into your application.
High Power to volume
Wound to maximise High Pulse Capability
200 mm flying lead terminations
Radox 1800V Traction Cable
Values from R005 to 70K
Wound to maximise High Pulse Capability
200 mm flying lead terminations
Radox 1800V Traction Cable
Values from R005 to 70K
