RS PRO, 47Ω 400W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 185-2330
- Brand:
- RS PRO
Save 29% when you buy 40 units
Subtotal (1 unit)*
£63.08
(exc. VAT)
£75.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
- Plus 20 unit(s) shipping from 12 November 2025
- Plus 999,999,944 unit(s) shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £63.08 |
5 - 9 | £58.65 |
10 - 19 | £54.24 |
20 - 39 | £49.83 |
40 + | £44.78 |
*price indicative
- RS Stock No.:
- 185-2330
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 47Ω | |
Power Rating | 400W | |
Series | R400 | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Wire Lead | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +250°C | |
Minimum Temperature Coefficient | -200ppm/°C | |
Maximum Temperature Coefficient | +200ppm/°C | |
Dimensions | 265 x 60 x 30mm | |
Overall Length | 265mm | |
Overall Height | 30mm | |
Overall Width | 60mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 47Ω | ||
Power Rating 400W | ||
Series R400 | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Wire Lead | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +250°C | ||
Minimum Temperature Coefficient -200ppm/°C | ||
Maximum Temperature Coefficient +200ppm/°C | ||
Dimensions 265 x 60 x 30mm | ||
Overall Length 265mm | ||
Overall Height 30mm | ||
Overall Width 60mm | ||
- COO (Country of Origin):
- IN

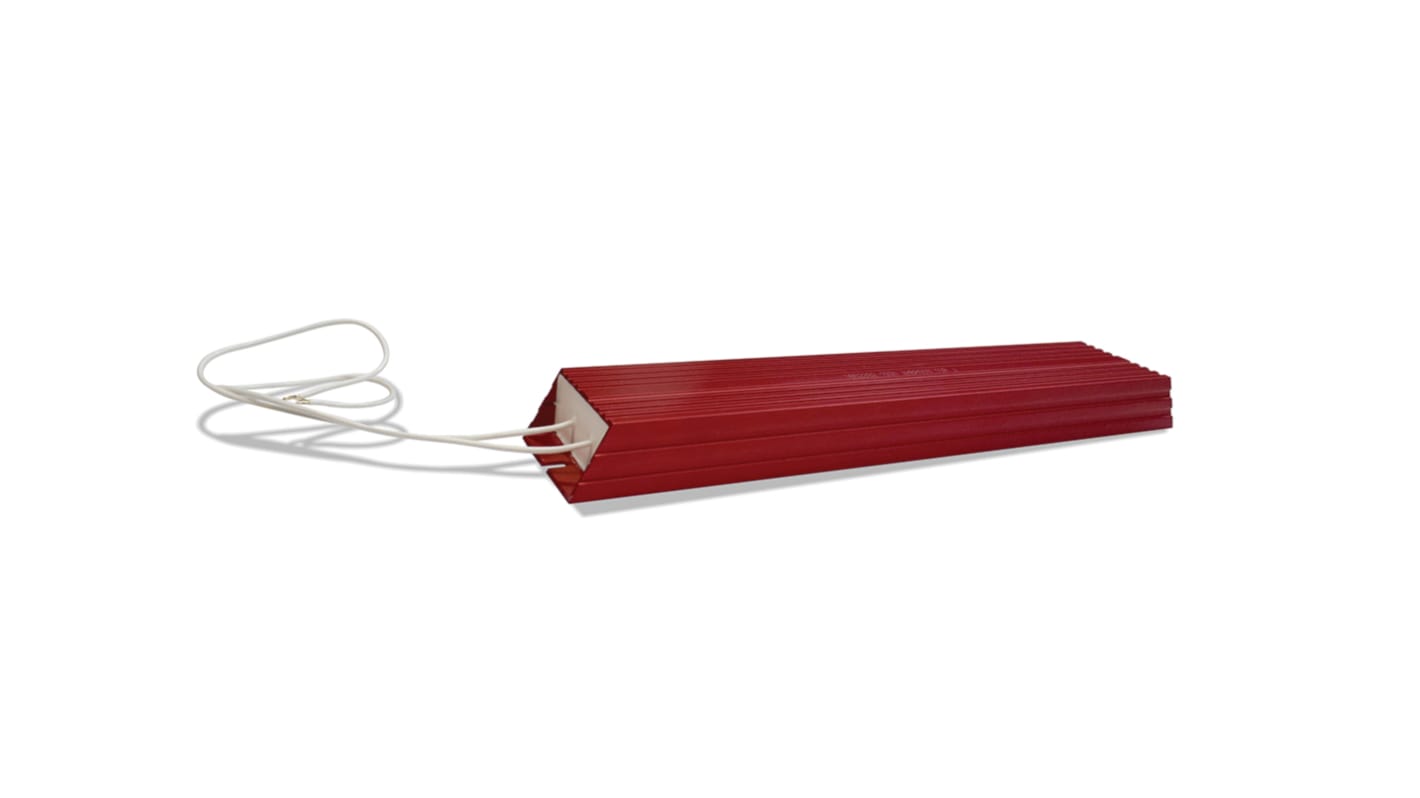

RS PRO Braking Resistor
The RS PRO R400 series aluminium housed metal-clad braking resistor has a resistance of 47ohm and power rating value of 400W. Its dimensions are 265mm x 60mm x 30mm (L x W x H). This high-quality wire lead resistor is designed for direct heat sink attachment.
Features and Benefits
• High power density
• Heat sink mountable for increased power dissipation
• Operating temperature ranging between -25°C and 250°C
• Temperature coefficient ranging between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm
• Heat sink mountable for increased power dissipation
• Operating temperature ranging between -25°C and 250°C
• Temperature coefficient ranging between -200ppm/°C and 200ppm/°C
• Tolerance: ±5%
• Dielectric strength: 1500VAC-rms for 1 minute
• Humidity: 40°C, 90% Rh, 240 hours
• Minimum insulation resistance: 20Mohm
Certifications
• UL approved (cables)
