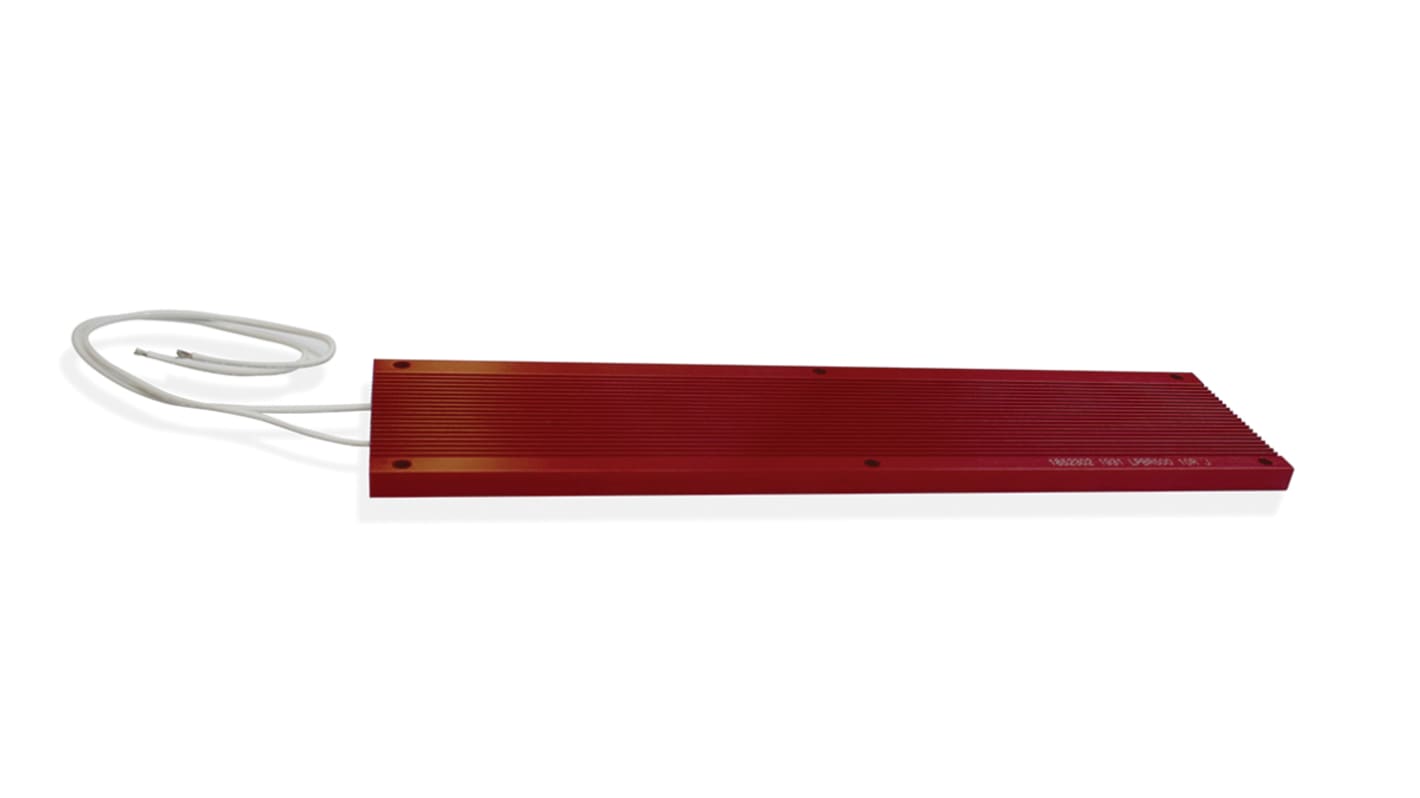

RS PRO, 16 Ω 500 W Aluminium Braking Resistor ±5 %
- RS Stock No.:
- 185-2304
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£76.72
(exc. VAT)
£92.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £76.72 |
| 5 - 9 | £74.74 |
| 10 - 19 | £72.81 |
| 20 + | £70.97 |
*price indicative
- RS Stock No.:
- 185-2304
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Braking Resistor | |
| Resistance | 16Ω | |
| Power Rating | 500W | |
| Series | LPBR | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | 100 ppm/°C | |
| Automotive Standard | No | |
| Technology | Aluminium | |
| Termination Style | UL approved Cable | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 330mm | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | UL, RoHS | |
| Overall Height | 10mm | |
| Overall Width | 80mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Braking Resistor | ||
Resistance 16Ω | ||
Power Rating 500W | ||
Series LPBR | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient 100 ppm/°C | ||
Automotive Standard No | ||
Technology Aluminium | ||
Termination Style UL approved Cable | ||
Minimum Operating Temperature -25°C | ||
Overall Length 330mm | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals UL, RoHS | ||
Overall Height 10mm | ||
Overall Width 80mm | ||
- COO (Country of Origin):
- IN
This range of high Quality, Aluminium housed Power Resistors designed for direct heat sink attachment
High Power density
Low Profile
Heat Sink mountable for increased power dissipation
