RS PRO, 15Ω 300W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 174-2536
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 box of 1 unit)*
£38.94
(exc. VAT)
£46.73
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 31 unit(s), ready to ship
Box(es) | Per Box |
|---|---|
| 1 - 4 | £38.94 |
| 5 - 9 | £36.23 |
| 10 - 24 | £33.50 |
| 25 - 49 | £30.78 |
| 50 + | £27.66 |
*price indicative
- RS Stock No.:
- 174-2536
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 15Ω | |
| Power Rating | 300W | |
| Series | HS300 | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±5% | |
| Technology | Wire Wound | |
| Termination Style | Axial | |
| Maximum Operating Temperature | +200°C | |
| Minimum Temperature Coefficient | -100ppm/°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 184.4 x 72.5 x 41.8mm | |
| Overall Height | 41.8mm | |
| Overall Length | 184.4mm | |
| Overall Width | 72.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 15Ω | ||
Power Rating 300W | ||
Series HS300 | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Axial | ||
Maximum Operating Temperature +200°C | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 184.4 x 72.5 x 41.8mm | ||
Overall Height 41.8mm | ||
Overall Length 184.4mm | ||
Overall Width 72.5mm | ||
- COO (Country of Origin):
- GB

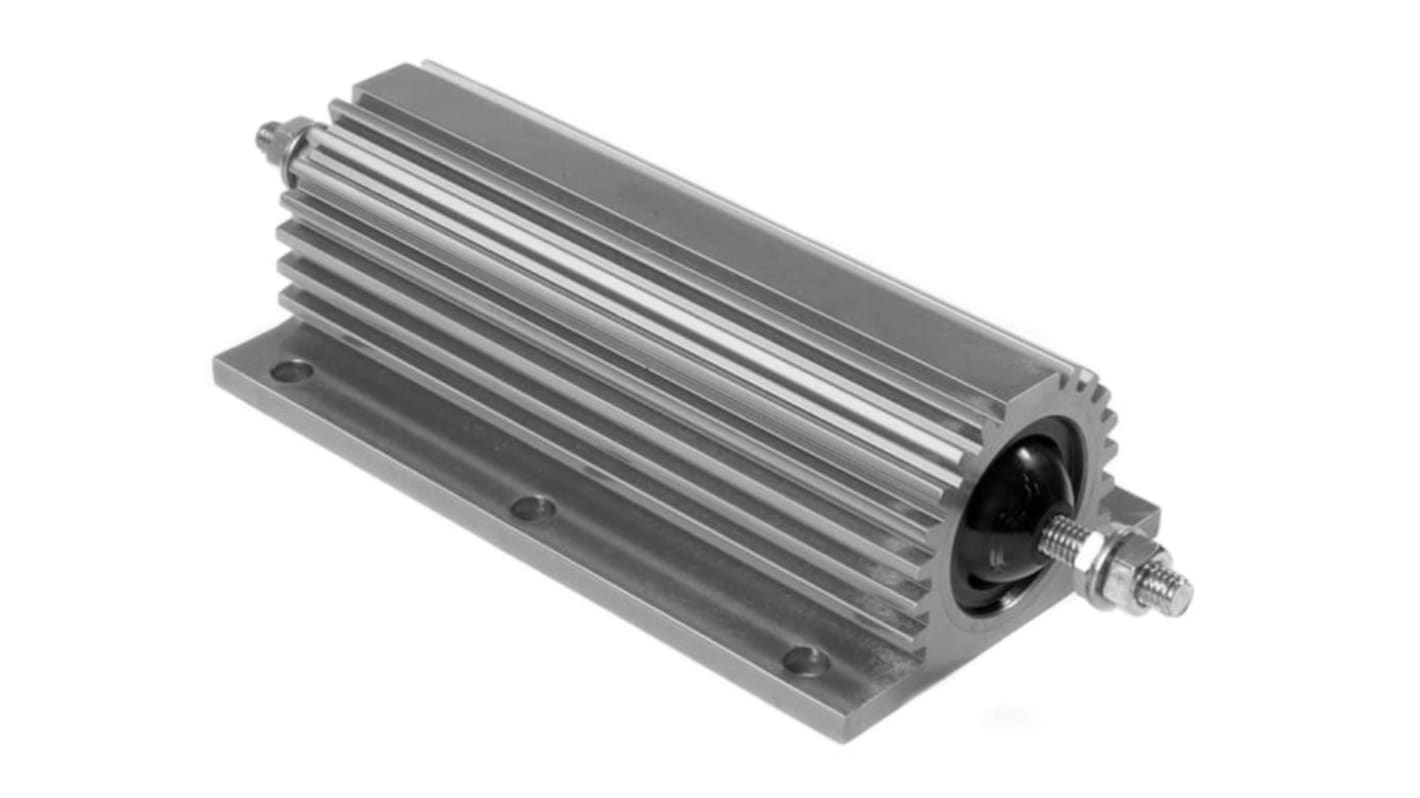

300 watt aluminium housed power resistor. Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
