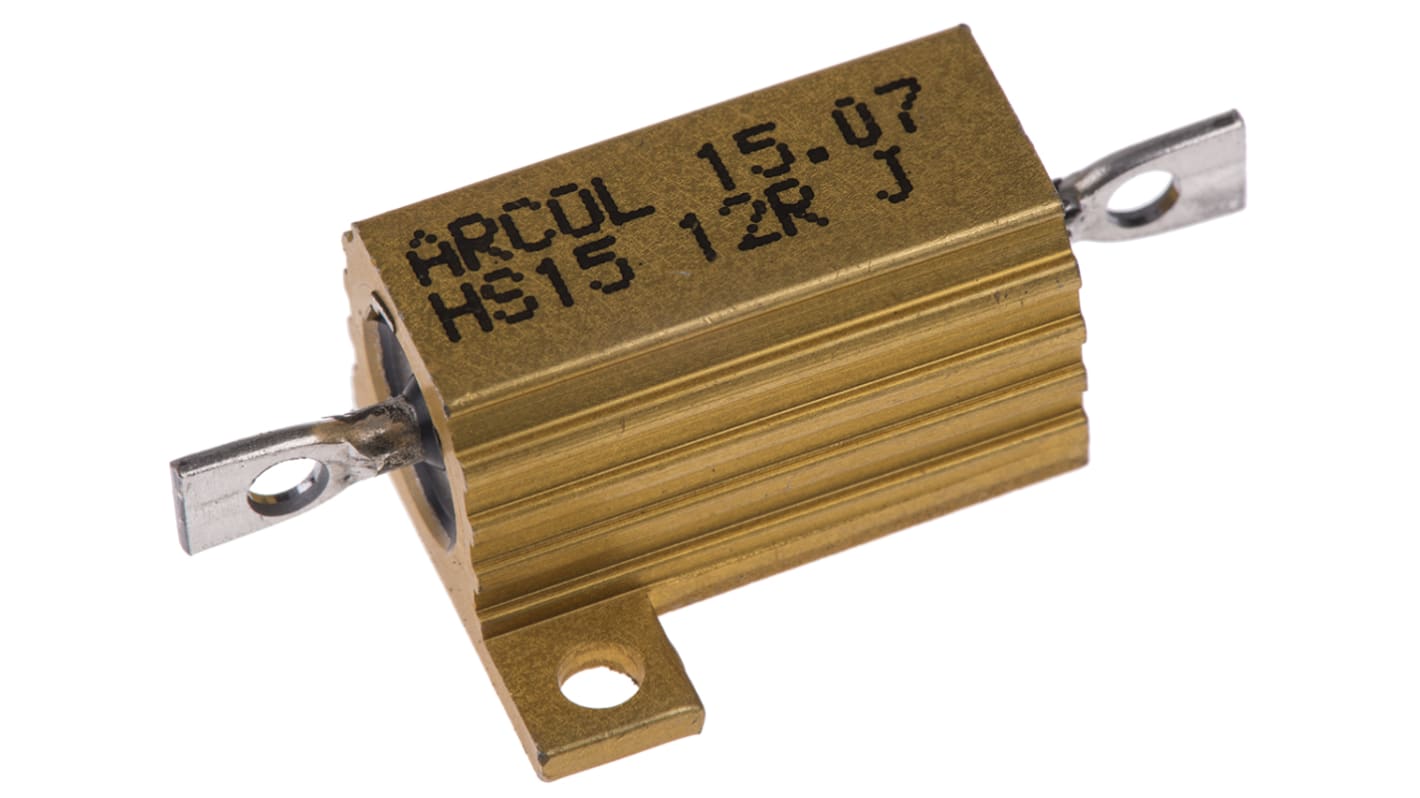

Arcol, 12Ω 15W Wire Wound Chassis Mount Resistor HS15 12R J ±5%
- RS Stock No.:
- 166-4227
- Mfr. Part No.:
- HS15 12R J
- Brand:
- Arcol
Bulk discount available
Subtotal (1 bag of 100 units)*
£268.80
(exc. VAT)
£322.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
- Plus 200 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 100 | £2.688 | £268.80 |
200 - 300 | £2.451 | £245.10 |
400 - 500 | £2.183 | £218.30 |
600 - 900 | £1.914 | £191.40 |
1000 + | £1.602 | £160.20 |
*price indicative
- RS Stock No.:
- 166-4227
- Mfr. Part No.:
- HS15 12R J
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Arcol | |
Resistance | 12Ω | |
Power Rating | 15W | |
Series | HS15 | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Axial | |
Minimum Temperature Coefficient | -100ppm/°C | |
Maximum Temperature Coefficient | +100ppm/°C | |
Dimensions | 11 x 36.5 x 21mm | |
Overall Length | 36.5mm | |
Overall Height | 11mm | |
Overall Width | 21mm | |
Select all | ||
---|---|---|
Brand Arcol | ||
Resistance 12Ω | ||
Power Rating 15W | ||
Series HS15 | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Axial | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 11 x 36.5 x 21mm | ||
Overall Length 36.5mm | ||
Overall Height 11mm | ||
Overall Width 21mm | ||
15W Aluminium housed wirewound power resistor, HS Series
15Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Compact size for Power rating
Winding construction maximises High Pulse Capability
Winding construction maximises High Pulse Capability
Note
To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
