Arcol, 2Ω 50W Aluminium Chassis Mount Resistor HS50 2R F ±1%
- RS Stock No.:
- 162-3433
- Mfr. Part No.:
- HS50 2R F
- Brand:
- Arcol
1120 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 20)
£3.028
(exc. VAT)
£3.634
(inc. VAT)
| Units | Per unit | Per Bag* |
| 20 - 40 | £3.028 | £60.56 |
| 60 - 80 | £2.907 | £58.14 |
| 100 - 180 | £2.695 | £53.90 |
| 200 + | £2.544 | £50.88 |
| *price indicative | ||
- RS Stock No.:
- 162-3433
- Mfr. Part No.:
- HS50 2R F
- Brand:
- Arcol
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

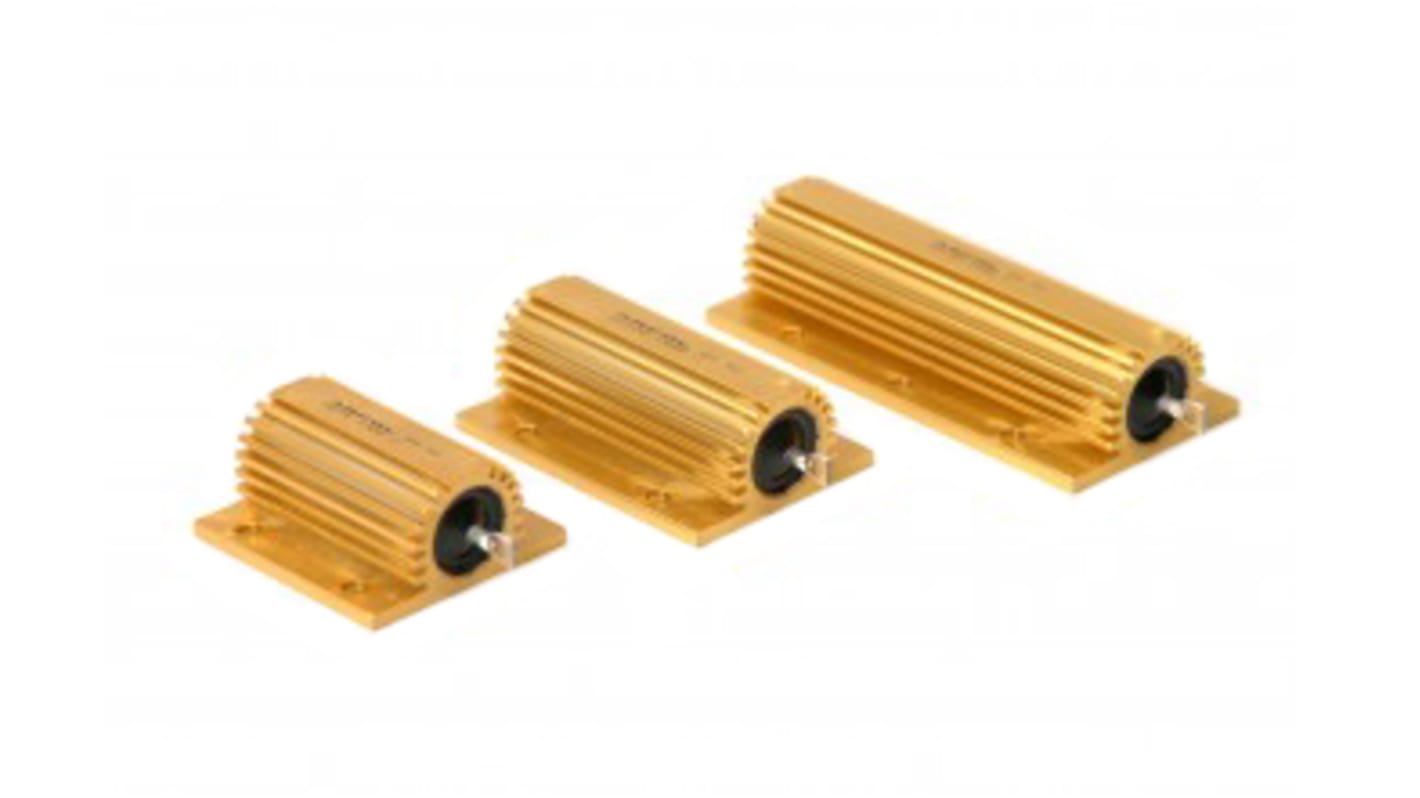

50 watt aluminium housed power resistor. Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
High Power to volume
Wound to maximise High Pulse Capability
Values from R005 to 100K
Wound to maximise High Pulse Capability
Values from R005 to 100K
Specifications
Attribute | Value |
|---|---|
| Resistance | 2Ω |
| Power Rating | 50W |
| Series | HS50 |
| Package/Case | Aluminium Housed |
| Tolerance | ±1% |
| Technology | Aluminium |
| Termination Style | Axial |
| Minimum Temperature Coefficient | -100ppm/°C |
| Maximum Temperature Coefficient | +100ppm/°C |
| Dimensions | 49.1 x 28 x 14.8mm |
| Overall Length | 49.1mm |
| Overall Width | 28mm |
| Overall Height | 14.8mm |
