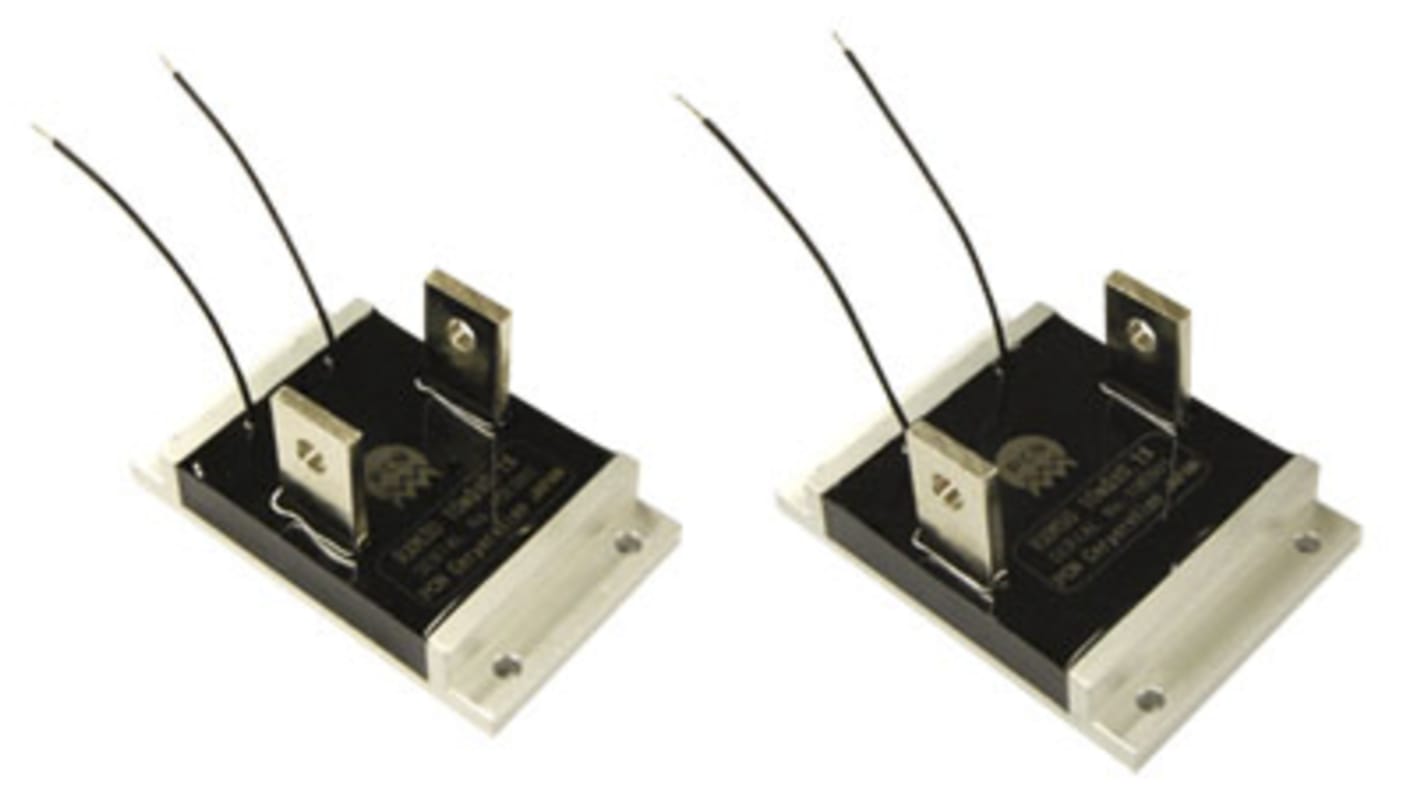

PCN RXM50 R050 A, 50 mΩ 50 W Power Shunt Chassis Mount Resistor ±0.05 %
- RS Stock No.:
- 161-5844
- Mfr. Part No.:
- RXM50 R050 A
- Brand:
- PCN
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 161-5844
- Mfr. Part No.:
- RXM50 R050 A
- Brand:
- PCN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PCN | |
| Resistance | 50mΩ | |
| Product Type | Chassis Mount Resistor | |
| Power Rating | 50W | |
| Series | RXM | |
| Packaging | Planar | |
| Package/Case | Planar | |
| Tolerance | ±0.05 % | |
| Temperature Coefficient | ±30 ppm/°C | |
| Automotive Standard | No | |
| Technology | Power Shunt | |
| Termination Style | Wire | |
| Overall Length | 90mm | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 125°C | |
| Overall Width | 65mm | |
| Overall Height | 41mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand PCN | ||
Resistance 50mΩ | ||
Product Type Chassis Mount Resistor | ||
Power Rating 50W | ||
Series RXM | ||
Packaging Planar | ||
Package/Case Planar | ||
Tolerance ±0.05 % | ||
Temperature Coefficient ±30 ppm/°C | ||
Automotive Standard No | ||
Technology Power Shunt | ||
Termination Style Wire | ||
Overall Length 90mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 125°C | ||
Overall Width 65mm | ||
Overall Height 41mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- JP
Low cost Power Shunt Resistors
