RS PRO, 6.8Ω 100W Wire Wound Chassis Mount Resistor ±5%
- RS Stock No.:
- 131-1308
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.33
(exc. VAT)
£11.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 78 unit(s) ready to ship
- Plus 999,999,921 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £9.33 |
10 - 24 | £8.67 |
25 - 49 | £8.01 |
50 - 99 | £7.36 |
100 + | £6.61 |
*price indicative
- RS Stock No.:
- 131-1308
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 6.8Ω | |
Power Rating | 100W | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Axial | |
Maximum Operating Temperature | +200°C | |
Minimum Temperature Coefficient | -100ppm/°C | |
Maximum Temperature Coefficient | +100ppm/°C | |
Dimensions | 88 x 47.5 x 24.1mm | |
Overall Width | 47.5mm | |
Overall Length | 88mm | |
Overall Height | 24.1mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 6.8Ω | ||
Power Rating 100W | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Axial | ||
Maximum Operating Temperature +200°C | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 88 x 47.5 x 24.1mm | ||
Overall Width 47.5mm | ||
Overall Length 88mm | ||
Overall Height 24.1mm | ||
- COO (Country of Origin):
- GB

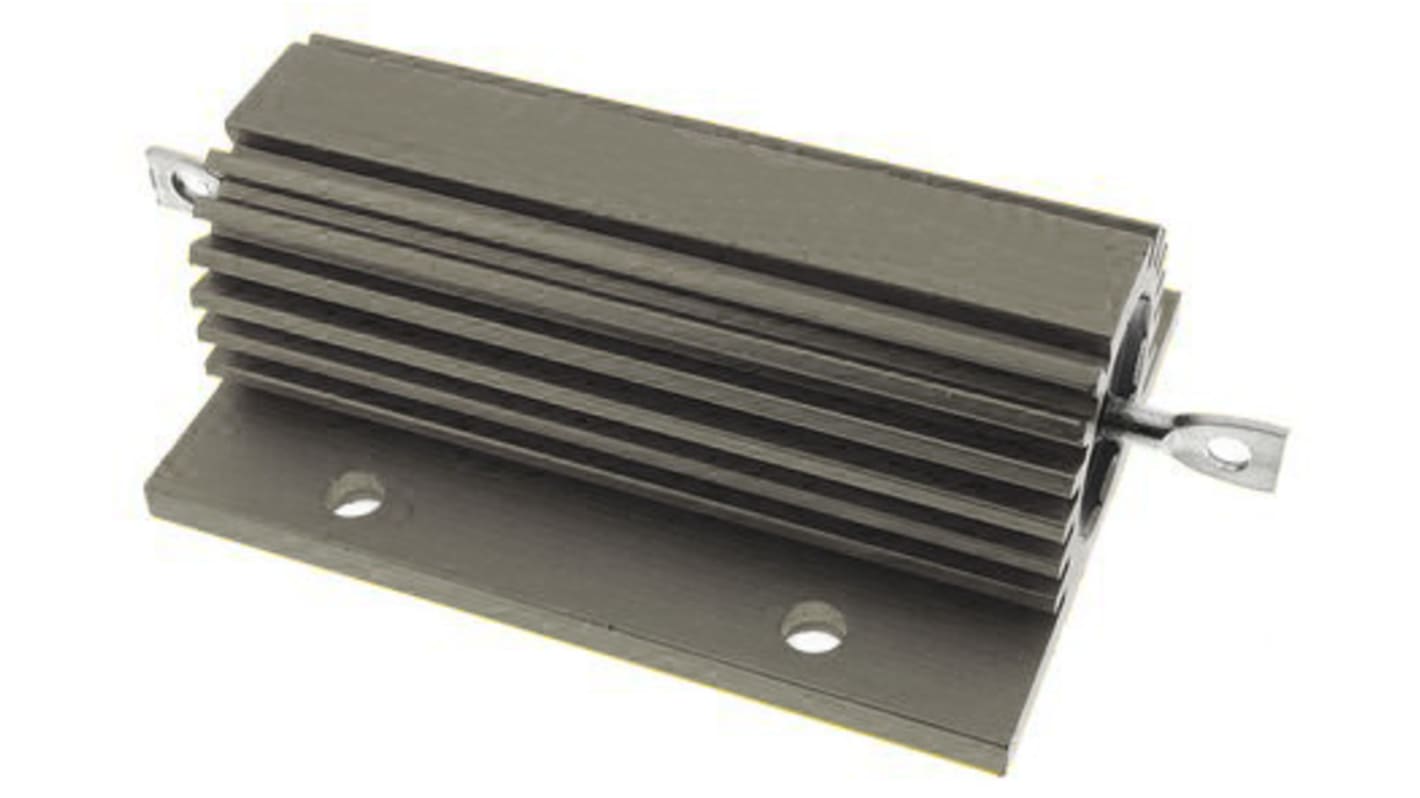

RS Pro 100 W Aluminium Housed Wirewound Resistors
RS Pro 100 W Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Features
Compact size for Power rating
High Power to volume
Wound to maximise High Pulse Capability
High Power to volume
Wound to maximise High Pulse Capability
Applications
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
