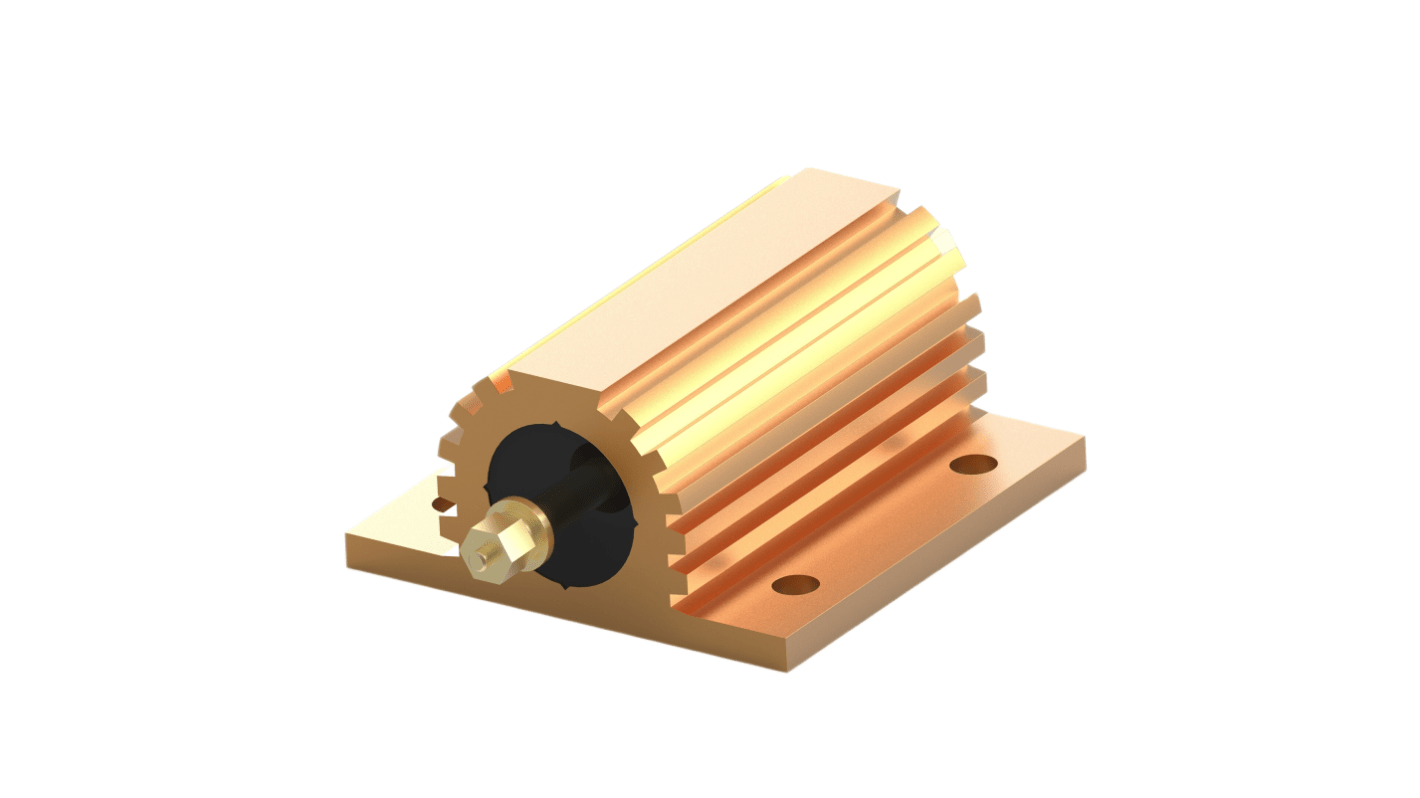

TE Connectivity, 68Ω 100W Wire Wound Wire Wound Fixed Resistor HSC100S68RJ 5%
- RS Stock No.:
- 599-246
- Mfr. Part No.:
- HSC100S68RJ
- Brand:
- TE Connectivity
Save 2% when you buy 100 units
Subtotal (1 box of 20 units)*
£242.76
(exc. VAT)
£291.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 80 | £12.138 | £242.76 |
| 100 + | £11.895 | £237.90 |
*price indicative
- RS Stock No.:
- 599-246
- Mfr. Part No.:
- HSC100S68RJ
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 68Ω | |
| Power Rating | 100W | |
| Series | CGS HS | |
| Package/Case | Aluminium Housed | |
| Tolerance | 5% | |
| Technology | Wire Wound | |
| Termination Style | Screw | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +200°C | |
| Maximum Temperature Coefficient | ±50ppm/°C | |
| Dimensions | 93 x 47 x 23mm | |
| Overall Height | 23mm | |
| Overall Width | 47mm | |
| Overall Length | 93mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 68Ω | ||
Power Rating 100W | ||
Series CGS HS | ||
Package/Case Aluminium Housed | ||
Tolerance 5% | ||
Technology Wire Wound | ||
Termination Style Screw | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +200°C | ||
Maximum Temperature Coefficient ±50ppm/°C | ||
Dimensions 93 x 47 x 23mm | ||
Overall Height 23mm | ||
Overall Width 47mm | ||
Overall Length 93mm | ||
