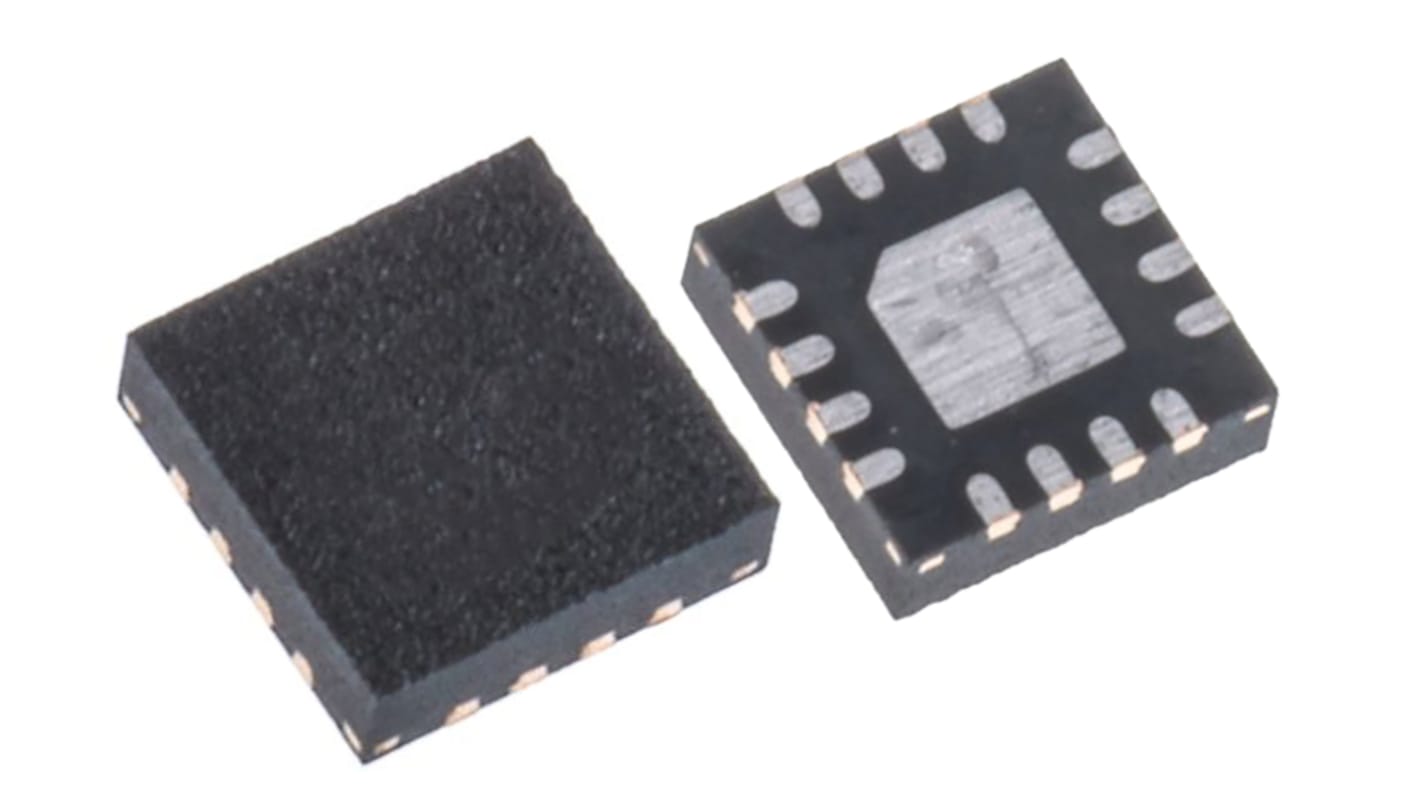

STMicroelectronics CLT03-2Q3, 2 Channel Protector, 16-Pin QFN
- RS Stock No.:
- 192-4223P
- Mfr. Part No.:
- CLT03-2Q3
- Brand:
- STMicroelectronics
Subtotal 5 units (supplied on a continuous strip)*
£6.32
(exc. VAT)
£7.585
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,010 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
5 + | £1.264 |
*price indicative
- RS Stock No.:
- 192-4223P
- Mfr. Part No.:
- CLT03-2Q3
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Number of Channels per Chip | 2 | |
Package Type | QFN | |
Pin Count | 16 | |
Mounting Type | Surface Mount | |
Dimensions | 4.05 x 2.05 x 0.95mm | |
Length | 4.05mm | |
Width | 2.05mm | |
Height | 0.95mm | |
Minimum Operating Temperature | -55 °C | |
Operating Temperature Range | -55 → +150 °C | |
Maximum Operating Temperature | +150 °C | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Number of Channels per Chip 2 | ||
Package Type QFN | ||
Pin Count 16 | ||
Mounting Type Surface Mount | ||
Dimensions 4.05 x 2.05 x 0.95mm | ||
Length 4.05mm | ||
Width 2.05mm | ||
Height 0.95mm | ||
Minimum Operating Temperature -55 °C | ||
Operating Temperature Range -55 → +150 °C | ||
Maximum Operating Temperature +150 °C | ||
- COO (Country of Origin):
- CN
The CLT03-2Q3 is a digital input current limiter which does not require external power supply and is powered through inputs. The product is housed in a QFN 2 x 4 -16L and is high side, low side compatible and as well as reverse plugin compatible. The CLT03-2Q3 can drive either opto-coupler or 3.3V LVTTL circuit.
2 isolated channels device
No power supply needed
Digital input current limitation
Glitch filter for EMC robustness
High side/ Low side compatible
Input are reverse plugin compatible
Direct opto-coupler or 3.3 V LVTTL output
Operating temperature range from -30 °C to 125 °C
QFN 2 x 4 - 16L - 500 μm pitch
No power supply needed
Digital input current limitation
Glitch filter for EMC robustness
High side/ Low side compatible
Input are reverse plugin compatible
Direct opto-coupler or 3.3 V LVTTL output
Operating temperature range from -30 °C to 125 °C
QFN 2 x 4 - 16L - 500 μm pitch
