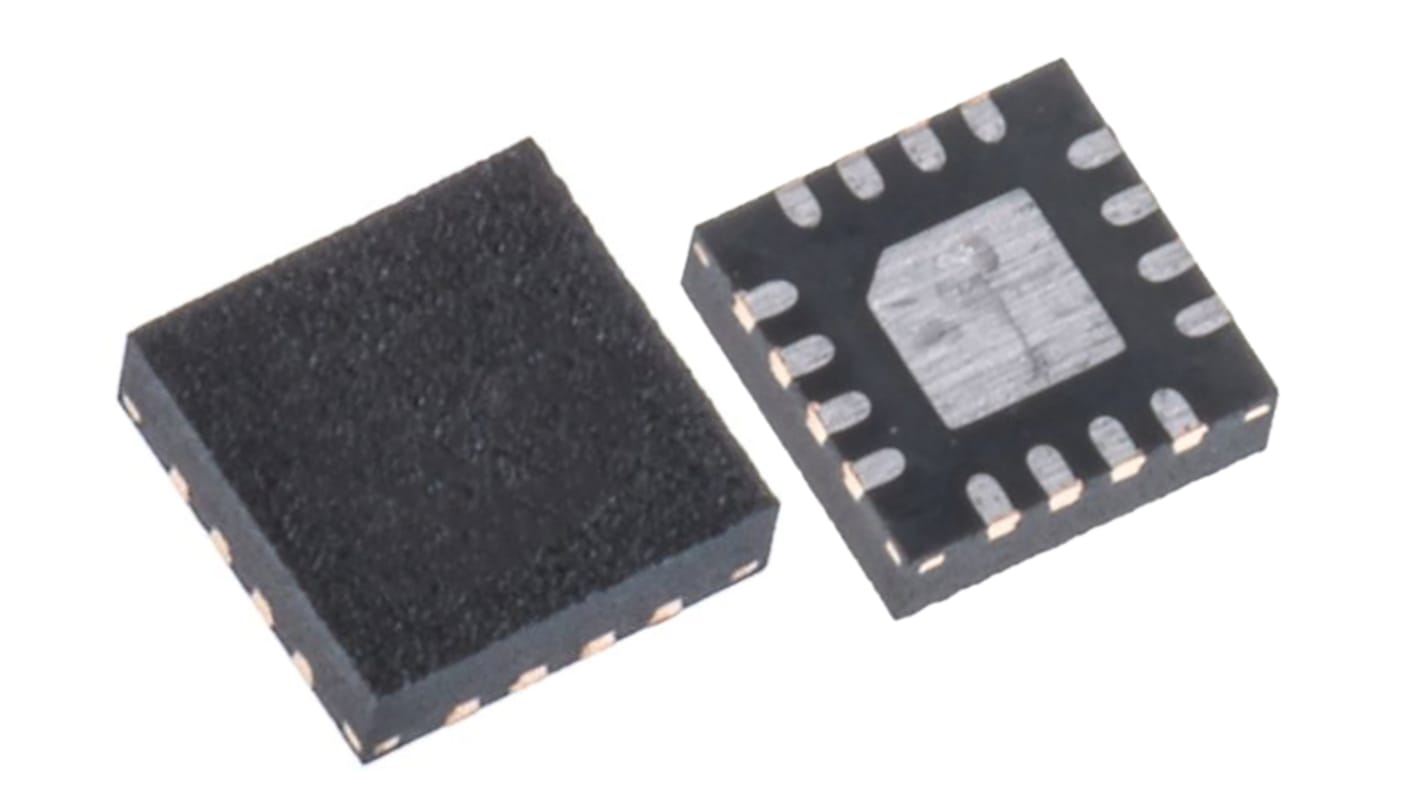

STMicroelectronics 2-Channel Channel Protector 3.6 V, 16-Pin QFN
- RS Stock No.:
- 192-3829
- Mfr. Part No.:
- CLT03-2Q3
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£2,496.00
(exc. VAT)
£2,994.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.832 | £2,496.00 |
*price indicative
- RS Stock No.:
- 192-3829
- Mfr. Part No.:
- CLT03-2Q3
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Channel Protector | |
| Number of Channels | 2 | |
| Maximum Overvoltage Protection | 60V | |
| Maximum Leakage Current | 10μA | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 0.95mm | |
| Length | 4.05mm | |
| Series | CLT03-2Q3 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Channel Protector | ||
Number of Channels 2 | ||
Maximum Overvoltage Protection 60V | ||
Maximum Leakage Current 10μA | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 16 | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 0.95mm | ||
Length 4.05mm | ||
Series CLT03-2Q3 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The CLT03-2Q3 is a digital input current limiter which does not require external power supply and is powered through inputs. The product is housed in a QFN 2 x 4 -16L and is high side, low side compatible and as well as reverse plugin compatible. The CLT03-2Q3 can drive either opto-coupler or 3.3V LVTTL circuit.
3 isolated channels device
No power supply needed
Digital input current limitation
Glitch filter for EMC robustness
High side/ Low side compatible
Input are reverse plugin compatible
Direct opto-coupler or 3.3 V LVTTL output
Operating temperature range fr
