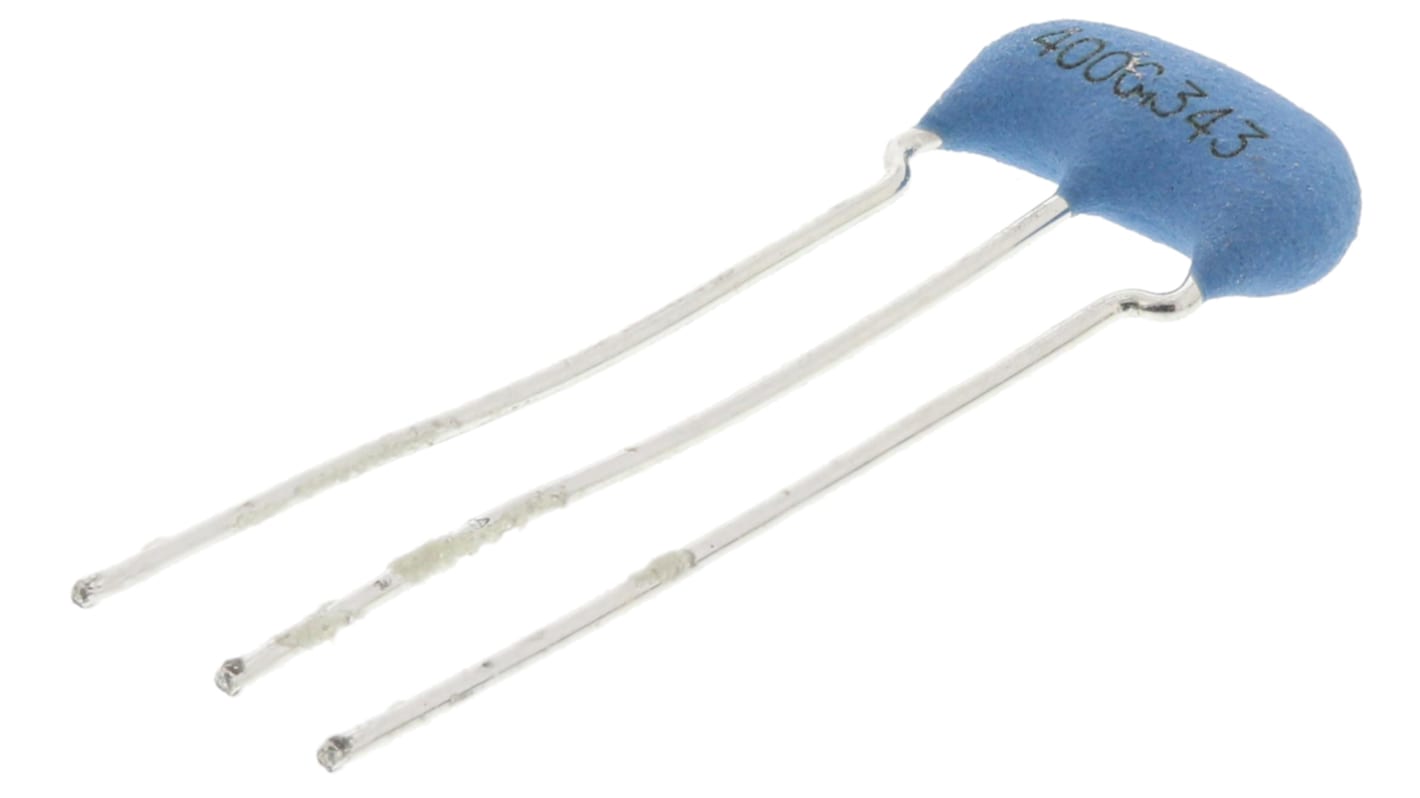

CSTLS4M00G53-B0 , Ceramic Resonator, 4MHz Shear 15pF, 3-Pin
- RS Stock No.:
- 721-4893
- Mfr. Part No.:
- CSTLS4M00G53-B0
- Brand:
- Murata
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 721-4893
- Mfr. Part No.:
- CSTLS4M00G53-B0
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Resonance Frequency | 4MHz | |
| Frequency Tolerance | ±0.5% | |
| Mode of Oscillation | Shear | |
| Load Capacitance | 15pF | |
| Resonance Resistance | 30Ω | |
| Frequency Ageing | ±0.2%/Year | |
| Frequency Stability | ±0.2 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Length | 8mm | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -20°C | |
| Width | 3mm | |
Select all | ||
|---|---|---|
Brand Murata | ||
Resonance Frequency 4MHz | ||
Frequency Tolerance ±0.5% | ||
Mode of Oscillation Shear | ||
Load Capacitance 15pF | ||
Resonance Resistance 30Ω | ||
Frequency Ageing ±0.2%/Year | ||
Frequency Stability ±0.2 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Length 8mm | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -20°C | ||
Width 3mm | ||
- COO (Country of Origin):
- JP
CST Series
Built-in load capacitors
The Murata CSTLS_G series 4MHz ceramic resonator. It is suitable for clock oscillators in a broad range of microprocessors. The CSTLS series can be used in the design of oscillation circuits not requiring external load capacitors, enabling both high-density mounting and cost reduction.
Oscillation circuits do not require external load capacitors. There is some variation in built-in capacitance values applicable to various IC
Stable over a wide temperature range
Compact, lightweight and exhibit superior shock resistance performance
Enable the design of oscillator circuits requiring no adjustment
Cost-effective and reliable availability
Stable over a wide temperature range
Compact, lightweight and exhibit superior shock resistance performance
Enable the design of oscillator circuits requiring no adjustment
Cost-effective and reliable availability
