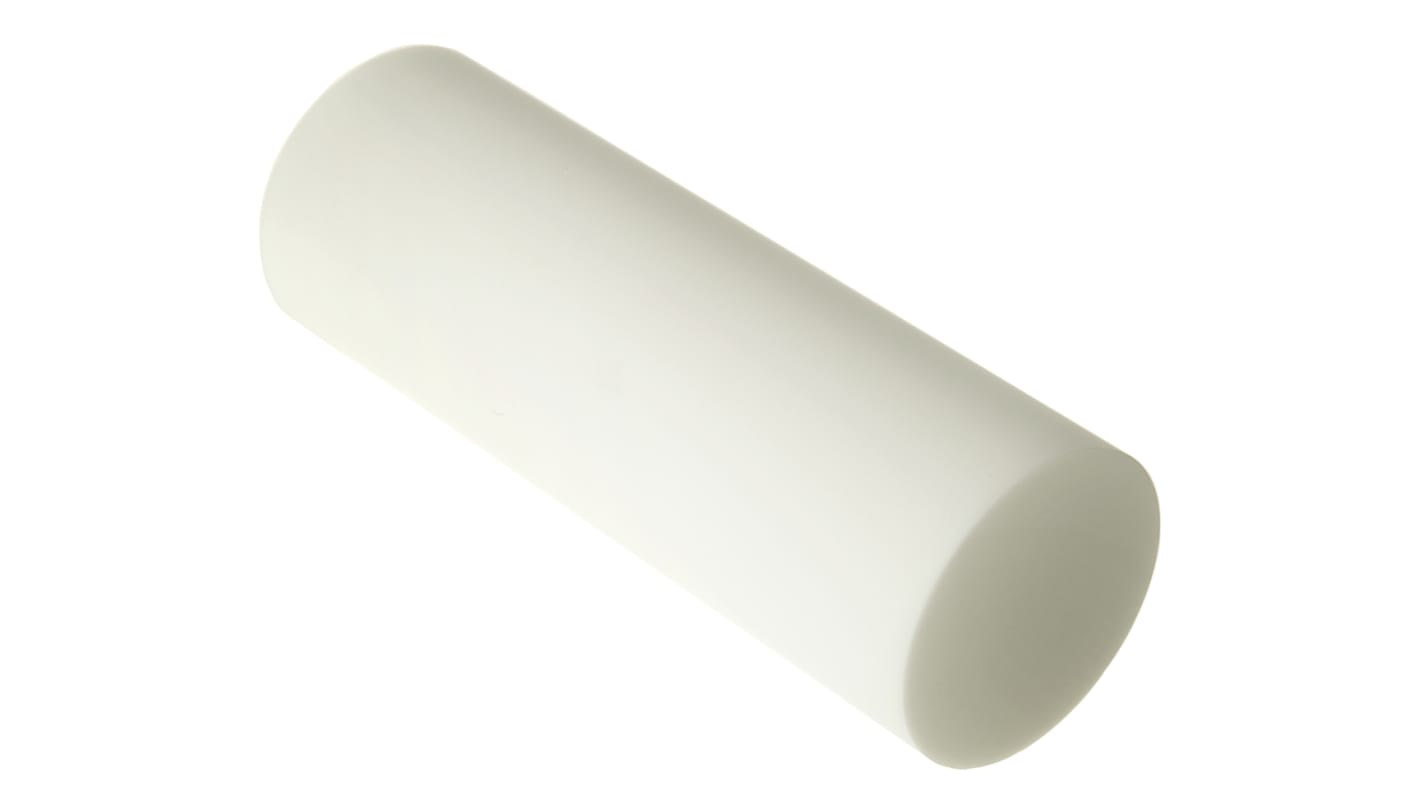

Machinable Glass Ceramic Rod, 100mm L, 35mm Diameter
- RS Stock No.:
- 225-5505
- Brand:
- Goodfellow
Bulk discount available
Subtotal (1 unit)*
£267.94
(exc. VAT)
£321.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £267.94 |
3 - 9 | £249.19 |
10 - 29 | £235.79 |
30 + | £214.36 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£285.87
(exc. VAT)
£343.04
(inc. VAT)
- RS Stock No.:
- 225-5505
- Brand:
- Goodfellow
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Goodfellow | |
Material | Machinable Glass Ceramic | |
Form | Rod | |
Length | 100mm | |
Rod Diameter | 35mm | |
Colour | White | |
Thermal Conductivity | 1.46W/mK | |
Density | 2.52g/cm³ | |
Hardness | A 48 Rockwell | |
Compressive Strength | 35kg/mm² | |
Fracture Toughness | 1.53MPa | |
Water Absorption | 0% | |
Maximum Operating Temperature | +800°C | |
Select all | ||
---|---|---|
Brand Goodfellow | ||
Material Machinable Glass Ceramic | ||
Form Rod | ||
Length 100mm | ||
Rod Diameter 35mm | ||
Colour White | ||
Thermal Conductivity 1.46W/mK | ||
Density 2.52g/cm³ | ||
Hardness A 48 Rockwell | ||
Compressive Strength 35kg/mm² | ||
Fracture Toughness 1.53MPa | ||
Water Absorption 0% | ||
Maximum Operating Temperature +800°C | ||
Macor® Machinable Glass Ceramic
Macor® is a registered trademark of Corning Inc.
For the manufacture of precision components utilising ordinary metalworking tools
No post firing required
Non-wetting, 0% porosity and no deformation
Max no load temperature: 1000°C
Continuous operating temperature: 800°C
Machining tolerances approach 0.013mm (polished smoothness of 0.013mm is achievable)
Can be sealed and joined to itself and to other materials
White in colour
No post firing required
Non-wetting, 0% porosity and no deformation
Max no load temperature: 1000°C
Continuous operating temperature: 800°C
Machining tolerances approach 0.013mm (polished smoothness of 0.013mm is achievable)
Can be sealed and joined to itself and to other materials
White in colour
Note
Trial pack (RS Stock number 158-3203) contents: 1 of 10dia x 50mm Rod, 1 of 10x10x25mm Sq Bar, 1 of 25x50x3mm Sheet
