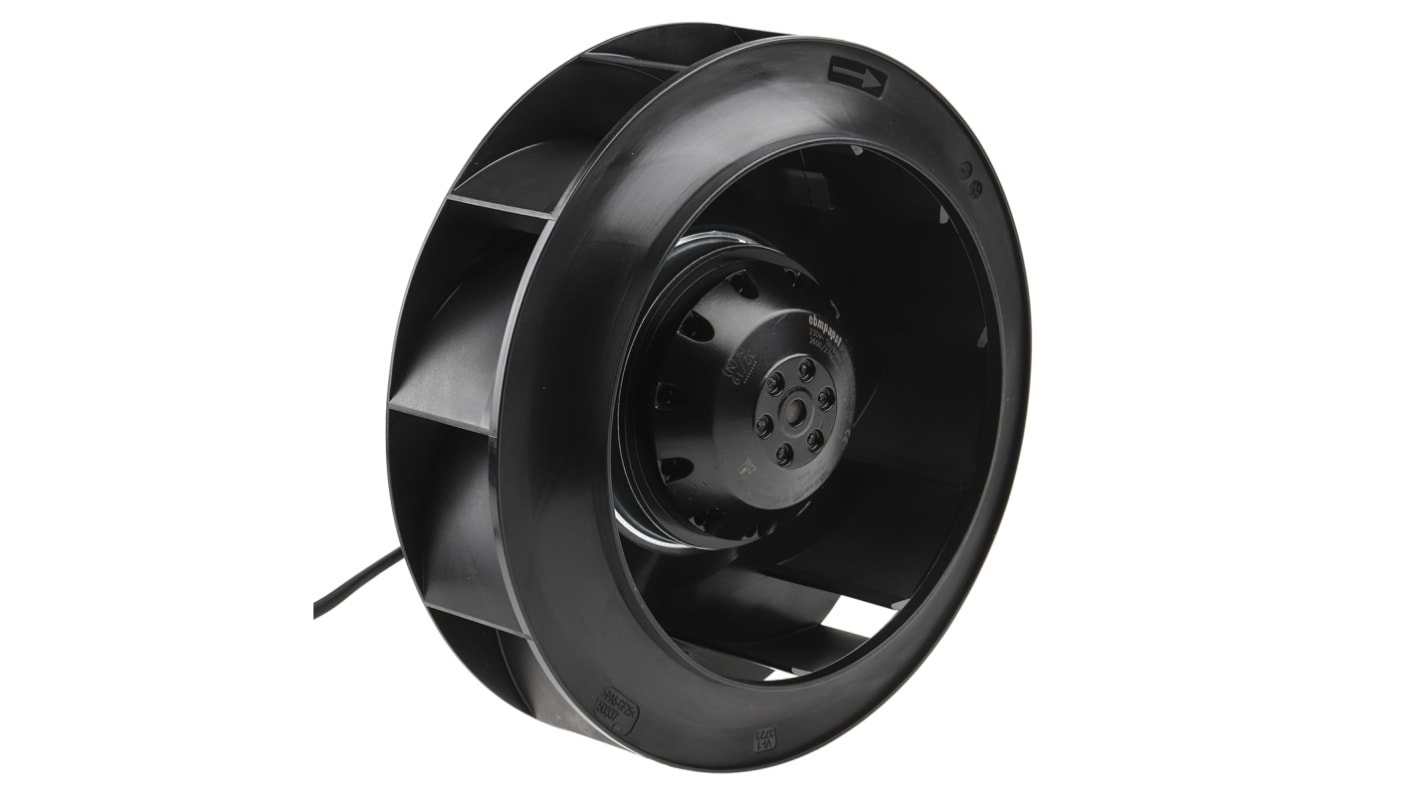

ebm-papst R2E220 Series Centrifugal Fan, 230 V ac, AC Operation, 221.4 (Dia.) x 71 Dmm
- RS Stock No.:
- 825-7673
- Mfr. Part No.:
- R2E220-AA40-B8
- Brand:
- ebm-papst
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£90.32
(exc. VAT)
£108.38
(inc. VAT)
- RS Stock No.:
- 825-7673
- Mfr. Part No.:
- R2E220-AA40-B8
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 230 V ac | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Series | R2E220 | |
| Width | 221.4mm | |
| Depth | 71mm | |
| Dimensions | 221.4 (Dia.) x 71 Dmm | |
| Fan Speed | 2700rpm | |
| Noise Level | 70dB(A) | |
| Bearing Type | Ball | |
| Direction of Curve | Backward | |
Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 230 V ac | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Series R2E220 | ||
Width 221.4mm | ||
Depth 71mm | ||
Dimensions 221.4 (Dia.) x 71 Dmm | ||
Fan Speed 2700rpm | ||
Noise Level 70dB(A) | ||
Bearing Type Ball | ||
Direction of Curve Backward | ||
- COO (Country of Origin):
- DE
ebm-papst Centrifugal Blower
The ebm-papst RadiCal series 230VAC high press development blower is a centrifugal fan with backward curved blades. These are ideal for a wide range of application requirements, mostly suited for intake suction use. Additionally, ebm-papst centrifugal fans and blowers, specifically those used for intake suction using backwards curved blades, do not require a scroll housing. This adds to the ease of use and versatility. The diameter of the fan is 221.4mm and depth of 71mm.
Features and Benefits
Uncoated surface of rotor
Material of impeller is PA6 plastic
Number of blades are 11
Direction of rotation is clockwise
Insulation class "F"
Humidity class F1-2
Operating temperature ranges between -40 °C and 80 °C
Any mounting position
Condensate discharge holes
Operation mode is S1
Ball bearing
Motor protection- thermal overload protector (TOP) wired internally
Cable exit variable
Fan speed is 2600rpm
Noise level is 73dB
Material of impeller is PA6 plastic
Number of blades are 11
Direction of rotation is clockwise
Insulation class "F"
Humidity class F1-2
Operating temperature ranges between -40 °C and 80 °C
Any mounting position
Condensate discharge holes
Operation mode is S1
Ball bearing
Motor protection- thermal overload protector (TOP) wired internally
Cable exit variable
Fan speed is 2600rpm
Noise level is 73dB
Applications
Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system
Certifications
UL 2111
CSA C22.2 Nr.77
CCC
CSA C22.2 Nr.77
CCC
