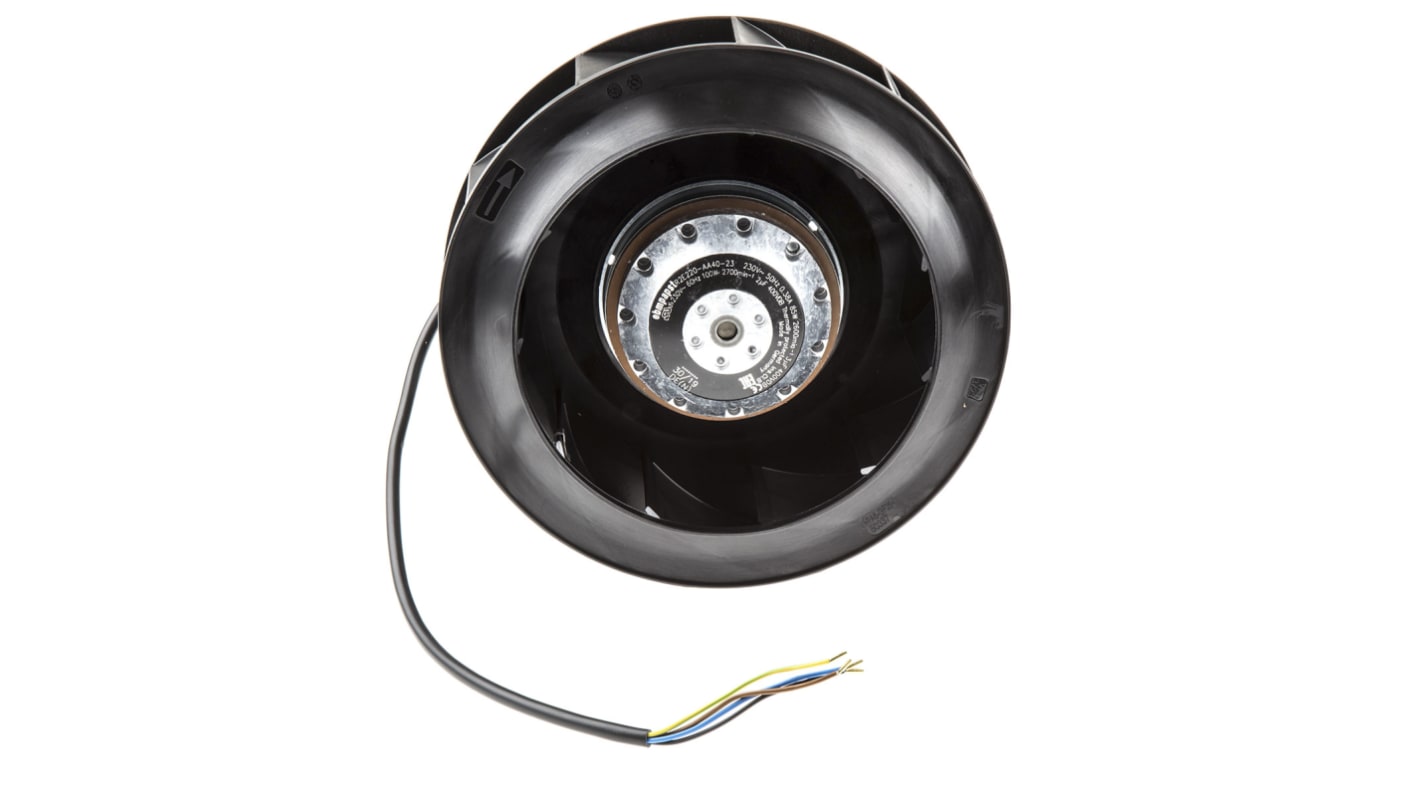

ebm-papst R2E220 Series Centrifugal Fan, 230 V ac, AC Operation, 221.4 (Dia.) x 71 Dmm
- RS Stock No.:
- 825-7667
- Mfr. Part No.:
- R2E220-AA40-23
- Brand:
- ebm-papst
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£90.32
(exc. VAT)
£108.38
(inc. VAT)
- RS Stock No.:
- 825-7667
- Mfr. Part No.:
- R2E220-AA40-23
- Brand:
- ebm-papst
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ebm-papst | |
Supply Voltage | 230 V ac | |
Blower Type | Centrifugal | |
AC or DC Operation | AC | |
Series | R2E220 | |
Width | 221.4mm | |
Depth | 71mm | |
Dimensions | 221.4 (Dia.) x 71 Dmm | |
Fan Speed | 2700rpm | |
Noise Level | 70dB(A) | |
Bearing Type | Ball | |
Direction of Curve | Backward | |
Select all | ||
---|---|---|
Brand ebm-papst | ||
Supply Voltage 230 V ac | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Series R2E220 | ||
Width 221.4mm | ||
Depth 71mm | ||
Dimensions 221.4 (Dia.) x 71 Dmm | ||
Fan Speed 2700rpm | ||
Noise Level 70dB(A) | ||
Bearing Type Ball | ||
Direction of Curve Backward | ||
- COO (Country of Origin):
- HU
ebm-papst Centrifugal Fan
The ebm-papst centrifugal fan has a supply voltage rating of 230VAC. It is featuring backwards curved blades provide an ideal solution for a wide range of application requirements and are ideally suited for intake suction use. It has a 221.4mm width and 71mm depth. This fan speed is 2550rpm and provides airflow of 530CFM. Additionally, this centrifugal fan, specifically those used for intake suction using backwards curved blades, does not require a scroll housing and so increases he fan's ease of use and versatility.
Features and Benefits
Plastic impeller
Maintance-free ball bearing
s
Class is B insulation
Impellers are highly resistant to dirt and dust
Maintance-free ball bearing
s
Class is B insulation
Impellers are highly resistant to dirt and dust
Applications
Central air conditioning units or building ventilation systems
Automobiles
Railways
Electronic products
Medical treatment
Households
Ventilation
Air conditioning
Refrigeration systems
Automobiles
Railways
Electronic products
Medical treatment
Households
Ventilation
Air conditioning
Refrigeration systems
Certifications
CSA certified
UL approved
VDE approved
UL approved
VDE approved
