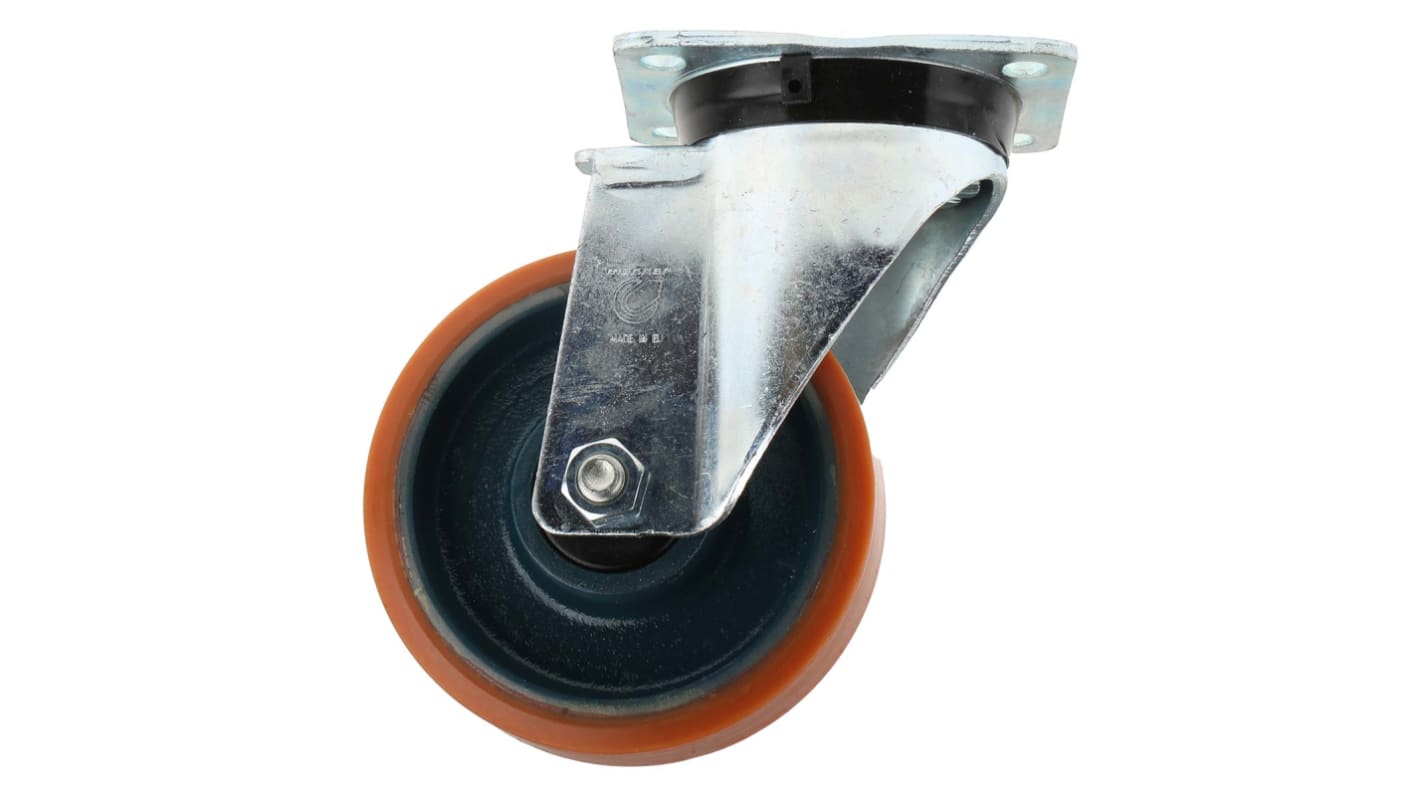

LAG Swivel Castor Wheel, 450kg Capacity, 150mm Wheel
- RS Stock No.:
- 435-2771
- Mfr. Part No.:
- 23617
- Brand:
- LAG
Available to back order for despatch 10/06/2024
Added
Price Each
£64.95
(exc. VAT)
£77.94
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £64.95 |
| 5 - 9 | £62.35 |
| 10 + | £61.05 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 435-2771
- Mfr. Part No.:
- 23617
- Brand:
- LAG
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details
Polyurethane Tyre, Cast Iron Hub, Heavy Duty, Series M40
Heavy duty castor, white zinc plated, top-plate mounting with a polyurethane tyred cast iron hub.
Central king-pin and self-locking nut
High resistance to abrasion, tearing, oils, petrol, greases etc
Wheels fitted with ball bearings
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series Z
High resistance to abrasion, tearing, oils, petrol, greases etc
Wheels fitted with ball bearings
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series Z
Polyurethane tyred wheels have high tear strength and abrasion resistance which gives them a life of up to 10 times that of rubber under similar operating conditions. Polyurethane is able to carry loads approaching that of cast iron. Polyurethane has a lower tractive resistance than rubber for the same load so is better for manual handling of very heavy loads. Polyurethane is not affected by greases and mineral oils.
Specifications
Attribute | Value |
|---|---|
| Wheel Diameter | 150mm |
| Load Capacity | 450kg |
| Mounting Type | Plate |
| Includes Brake | No |
| Overall Height | 202mm |
| Wheel Width | 40mm |
| Rotation | Swivel |
| Tyre Material | Polyurethane |
| Fixing Centres | 105 x 80mm |
| Housing Material | Zinc Plated Steel |
| Fixing Plate Dimensions | 135 x 110mm |
| Number of Fixing Holes | 4 |
| Fixing Hole Size | 13mm |
| Weight Class | Medium Duty |
| Hub Material | Cast Iron |
| Hub Bearing Type | Ball Bearing |
