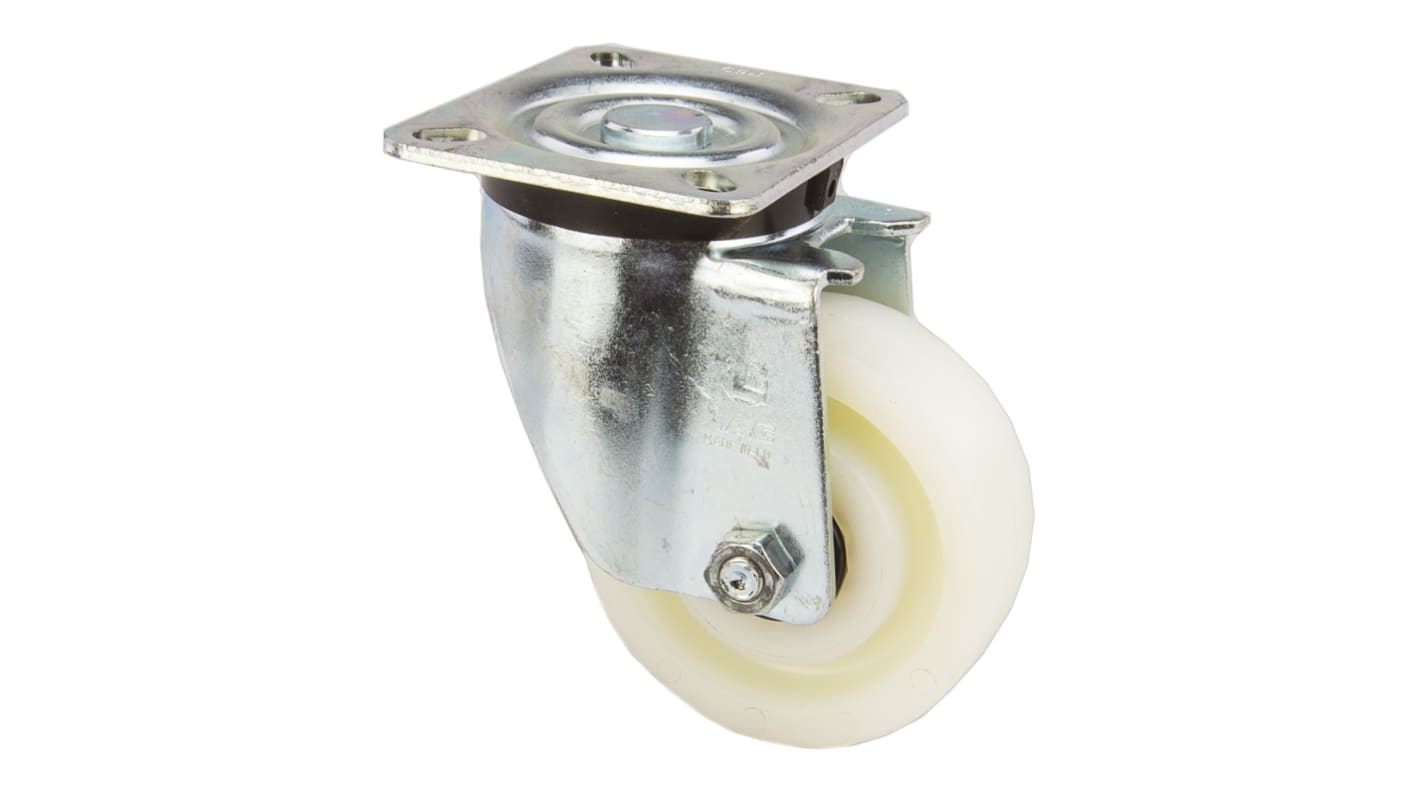

LAG Swivel Castor Wheel, 450kg Capacity, 100mm Wheel
- RS Stock No.:
- 435-2282
- Mfr. Part No.:
- 17855
- Brand:
- LAG
Bulk discount available
Subtotal (1 unit)*
£32.34
(exc. VAT)
£38.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £32.34 |
| 5 - 9 | £31.05 |
| 10 + | £30.40 |
*price indicative
- RS Stock No.:
- 435-2282
- Mfr. Part No.:
- 17855
- Brand:
- LAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LAG | |
| Wheel Diameter | 100mm | |
| Load Capacity | 450kg | |
| Mounting Type | Plate | |
| Includes Brake | No | |
| Overall Height | 138mm | |
| Wheel Width | 37mm | |
| Rotation | Swivel | |
| Tyre Material | Polyamide | |
| Housing Material | Zinc Plated Steel | |
| Fixing Centres | 80 x 60mm | |
| Fixing Plate Dimensions | 105 x 85mm | |
| Number of Fixing Holes | 4 | |
| Fixing Hole Size | 8mm | |
| Weight Class | Heavy Duty | |
| Hub Bearing Type | Ball Bearing | |
| Hub Material | Polyamide | |
Select all | ||
|---|---|---|
Brand LAG | ||
Wheel Diameter 100mm | ||
Load Capacity 450kg | ||
Mounting Type Plate | ||
Includes Brake No | ||
Overall Height 138mm | ||
Wheel Width 37mm | ||
Rotation Swivel | ||
Tyre Material Polyamide | ||
Housing Material Zinc Plated Steel | ||
Fixing Centres 80 x 60mm | ||
Fixing Plate Dimensions 105 x 85mm | ||
Number of Fixing Holes 4 | ||
Fixing Hole Size 8mm | ||
Weight Class Heavy Duty | ||
Hub Bearing Type Ball Bearing | ||
Hub Material Polyamide | ||
- COO (Country of Origin):
- IT
Nylon Polyamide Wheel, Steel Fork, Heavy Duty, Series P60
Zinc plated body
Hygienic materials and design
Corrosion, abrasion and shock resistant
Wheel series P
Hygienic materials and design
Corrosion, abrasion and shock resistant
Wheel series P
Hard Tread - Polyamide / Nylon Wheel
Hard tread wheels are the easiest to push and offer the easiest movement and mobility. Solid Nylon is a floor-friendly alternative to cast iron, which is unaffected by water and has a load capacity approaching that of cast iron. Solid Nylon wheels are the most popular choice as they will not damage solid compacted floors such as cement or tile etc and have good load carrying capacity. Nylon wheels are used widely in food processing areas.
